Tevion TEV8400 - Connecting with Other VCR or Camcorder

STANDBY/ON
EJECT
VIDEO AUDIO RL
REC
AV INPUT
INPUT 1
OUT
VIDEO (L) AUDIO (R)
ANT IN
INPUT 2
REAR PANEL OF DVD-VIDEO
FRONT PANEL OF DVD-VIDEO
REAR PANEL OF PLAYBACK VCR(CAMCORDER)
REAR PANEL OF TV
RF CABLE
Installation
14 15

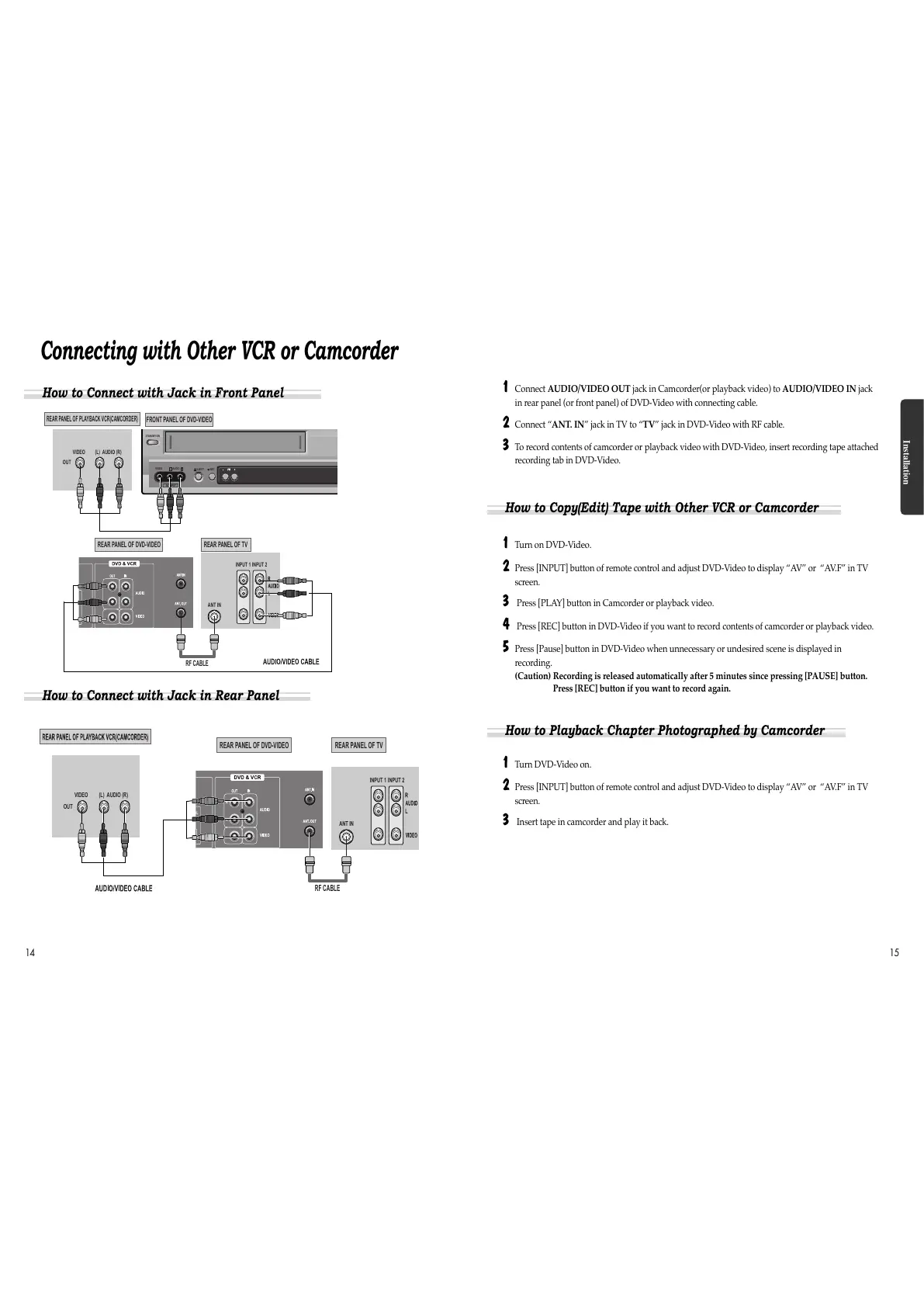

Connecting with Other VCR or Camcorder
How to Connect with Jack in Front Panel
How to Connect with Jack in Rear Panel
INPUT 1
OUT
VIDEO (L) AUDIO (R)
ANT IN
INPUT 2
REAR PANEL OF DVD-VIDEO REAR PANEL OF TV
RF CABLE
¡ Connect AUDIO/VIDEO OUT jack in Camcorder(or playback video) to AUDIO/VIDEO IN jack
in rear panel (or front panel) of DVD-Video with connecting cable.
™ Connect “ANT. IN” jack in TV to “TV” jack in DVD-Video with RF cable.
£ To record contents of camcorder or playback video with DVD-Video, insert recording tape attached
recording tab in DVD-Video.
¡ Turn on DVD-Video.
™ Press [INPUT] button of remote control and adjust DVD-Video to display “AV” or “AV.F” in TV
screen.
£ Press [PLAY] button in Camcorder or playback video.
¢ Press [REC] button in DVD-Video if you want to record contents of camcorder or playback video.
∞ Press [Pause] button in DVD-Video when unnecessary or undesired scene is displayed in
recording.
(Caution) Recording is released automatically after 5 minutes since pressing [PAUSE] button.
Press [REC] button if you want to record again.
¡ Turn DVD-Video on.
™ Press [INPUT] button of remote control and adjust DVD-Video to display “AV” or “AV.F” in TV
screen.
£ Insert tape in camcorder and play it back.
How to Copy(Edit) Tape with Other VCR or Camcorder
How to Playback Chapter Photographed by Camcorder
