Proceed as follows:
1. Turn off the vehicle (ignition key off).
2. Locate the OBD socket.
3. Carefully remove any panels covering the OBD socket.
4. Connect the device to the OBD socket.
5. Check to see if there is a screw anywhere near the OBD socket
with a small enough diameter to allow it to pass through the cable
eyelet.
6. If there is no screw that serves this purpose, find a place where
you can make a hole with the self-drilling screw.

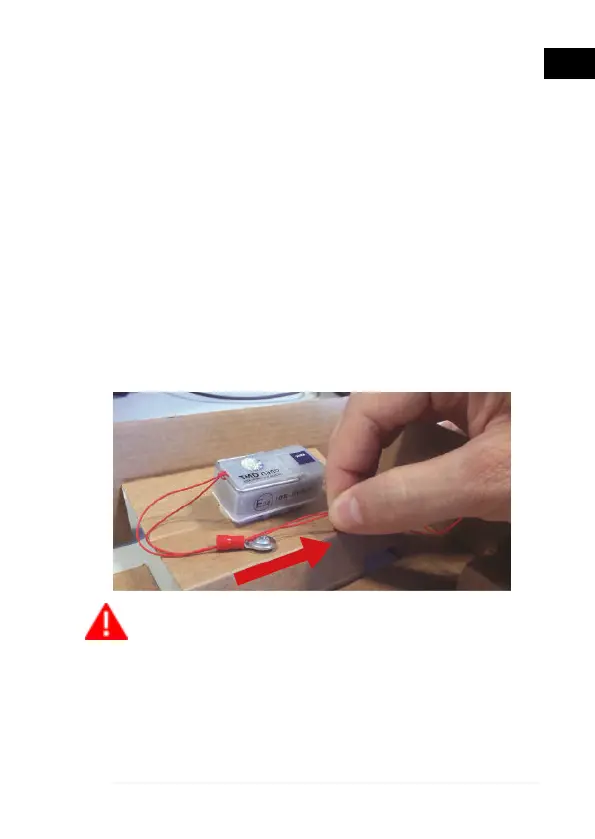

7. Fasten the eyelet terminal with the screw.
8. Pull the string and shorten it as much as possible, leaving it
only long enough so that you will be able to remove the device
from the OBD socket in the future.
Choose the length of the string carefully, based on the
position of the OBD socket. Make sure it does not interfere
with the use of the clutch, brake or accelerator or other
devices within the vehicle required for safety reasons or a
normal operation of the vehicle itself, as specified by the car
manufacturer.
33
en
