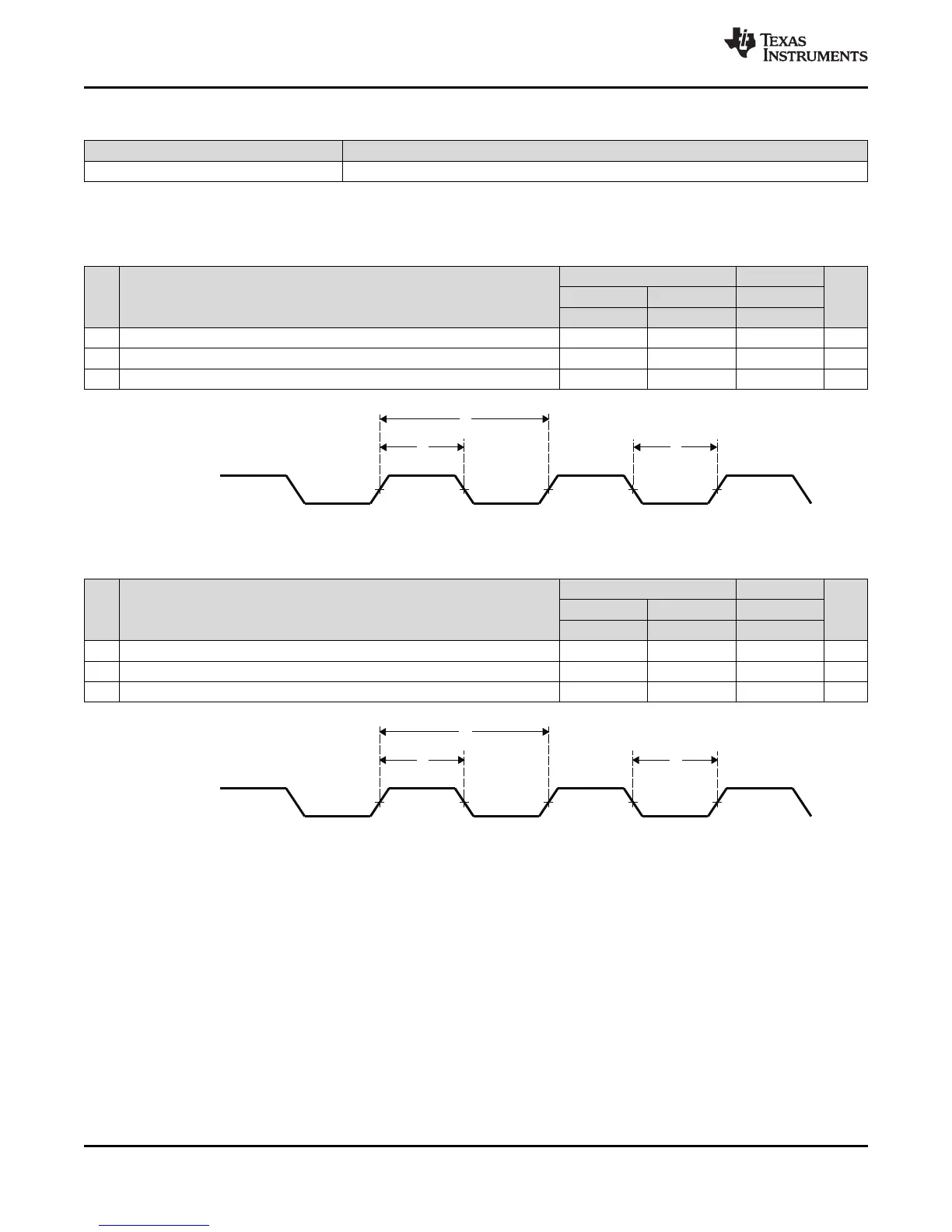

Table 6-97. EMAC Control Module RAM
BYTE ADDRESS DESCRIPTION
0x01E2 0000 - 0x01E2 1FFF EMAC Local Buffer Descriptor Memory
6.22.2 EMAC Electrical Data/Timing
Table 6-98. Timing Requirements for MII_RXCLK (see Figure 6-45)
1.3V, 1.2V, 1.1V 1.0V
NO. 10 Mbps 100 Mbps 10 Mbps UNIT
MIN MAX MIN MAX MIN MAX
1 t
c(MII_RXCLK)
Cycle time, MII_RXCLK 400 40 400 ns
2 t
w(MII_RXCLKH)
Pulse duration, MII_RXCLK high 140 14 140 ns
3 t
w(MII_RXCLKL)
Pulse duration, MII_RXCLK low 140 14 140 ns
Figure 6-45. MII_RXCLK Timing (EMAC - Receive)
Table 6-99. Timing Requirements for MII_TXCLK (see Figure 6-46)
1.3V, 1.2V, 1.1V 1.0V
NO. 10 Mbps 100 Mbps 10 Mbps UNIT
MIN MAX MIN MAX MIN MAX
1 t
c(MII_TXCLK)
Cycle time, MII_TXCLK 400 40 400 ns
2 t
w(MII_TXCLKH)
Pulse duration, MII_TXCLK high 140 14 140 ns
3 t
w(MII_TXCLKL)
Pulse duration, MII_TXCLK low 140 14 140 ns
Figure 6-46. MII_TXCLK Timing (EMAC - Transmit)
