Texas Instruments AM1808 - Page 226

VP_CLKIN0/1
VP_DINx/FIELD/
HSYNC/VSYNC
1
2
VP_CLKINx
2
3
1
4
4
AM1808
SPRS653E –FEBRUARY 2010–REVISED MARCH 2014 www.ti.com

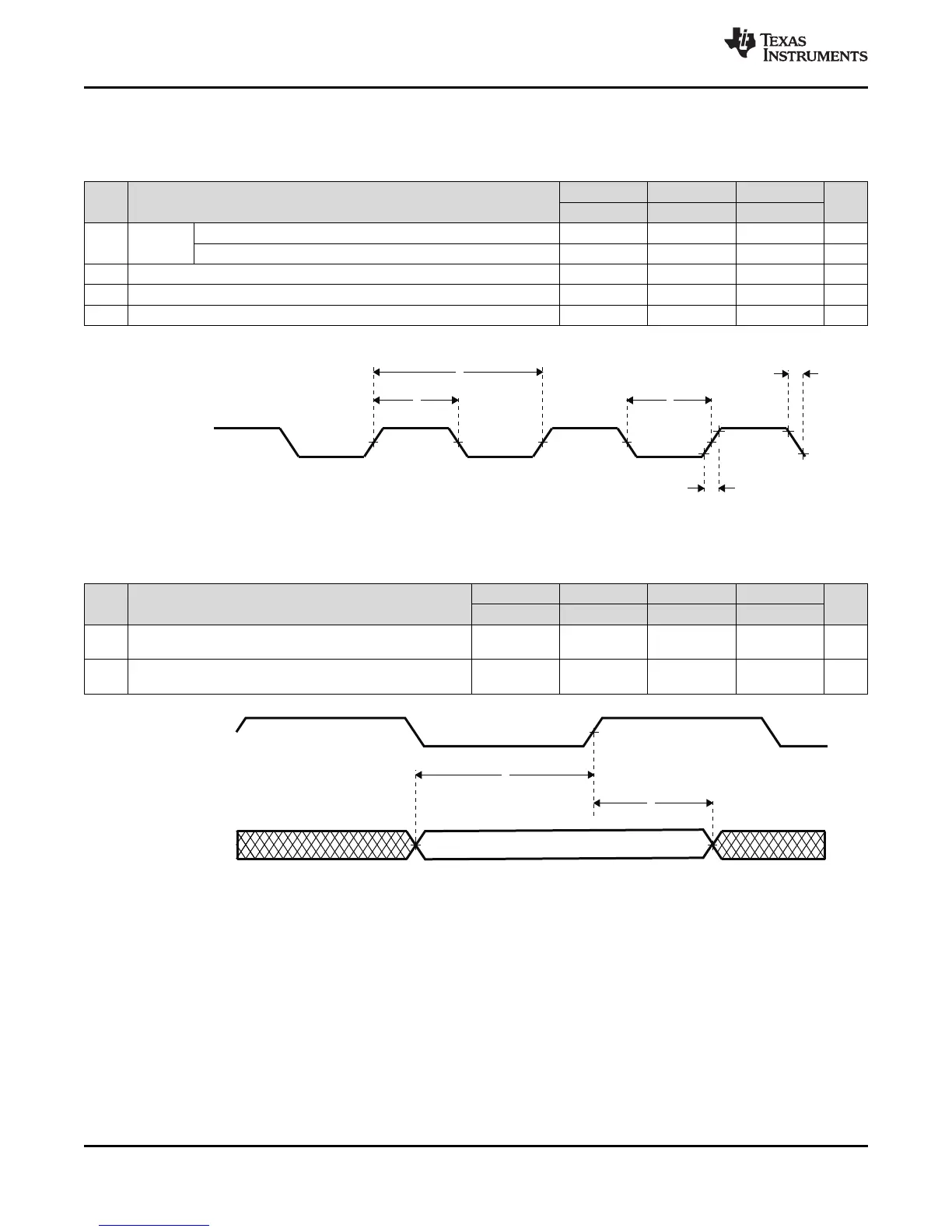

6.27.2 VPIF Electrical Data/Timing
Table 6-119. Timing Requirements for VPIF VP_CLKINx Inputs
(1)
(see Figure 6-73)
1.3V, 1.2V 1.1V 1.0V
NO. UNIT
MIN MAX MIN MAX MIN MAX
Cycle time, VP_CLKIN0 13.3 20 37 ns
1 t
c(VKI)
Cycle time, VP_CLKIN1/2/3 13.3 20 37 ns
2 t
w(VKIH)
Pulse duration, VP_CLKINx high 0.4C 0.4C 0.4C ns
3 t
w(VKIL)
Pulse duration, VP_CLKINx low 0.4C 0.4C 0.4C ns
4 t
t(VKI)
Transition time, VP_CLKINx 5 5 5 ns
(1) C = VP_CLKINx period in ns.
Figure 6-73. Video Port Capture VP_CLKINx Timing
Table 6-120. Timing Requirements for VPIF Channels 0/1 Video Capture Data and Control Inputs
(see Figure 6-74)
1.3V 1.2V 1.1V 1.0V
NO. UNIT
MIN MAX MIN MAX MIN MAX MIN MAX
Setup time, VP_DINx valid before
1 t
su(VDINV-VKIH)
4 4 6 7 ns
VP_CLKIN0/1 high
Hold time, VP_DINx valid after
2 t
h(VKIH-VDINV)
0.5 0 0 0 ns
VP_CLKIN0/1 high
Figure 6-74. VPIF Channels 0/1 Video Capture Data and Control Input Timing
