MECHANICAL DATA

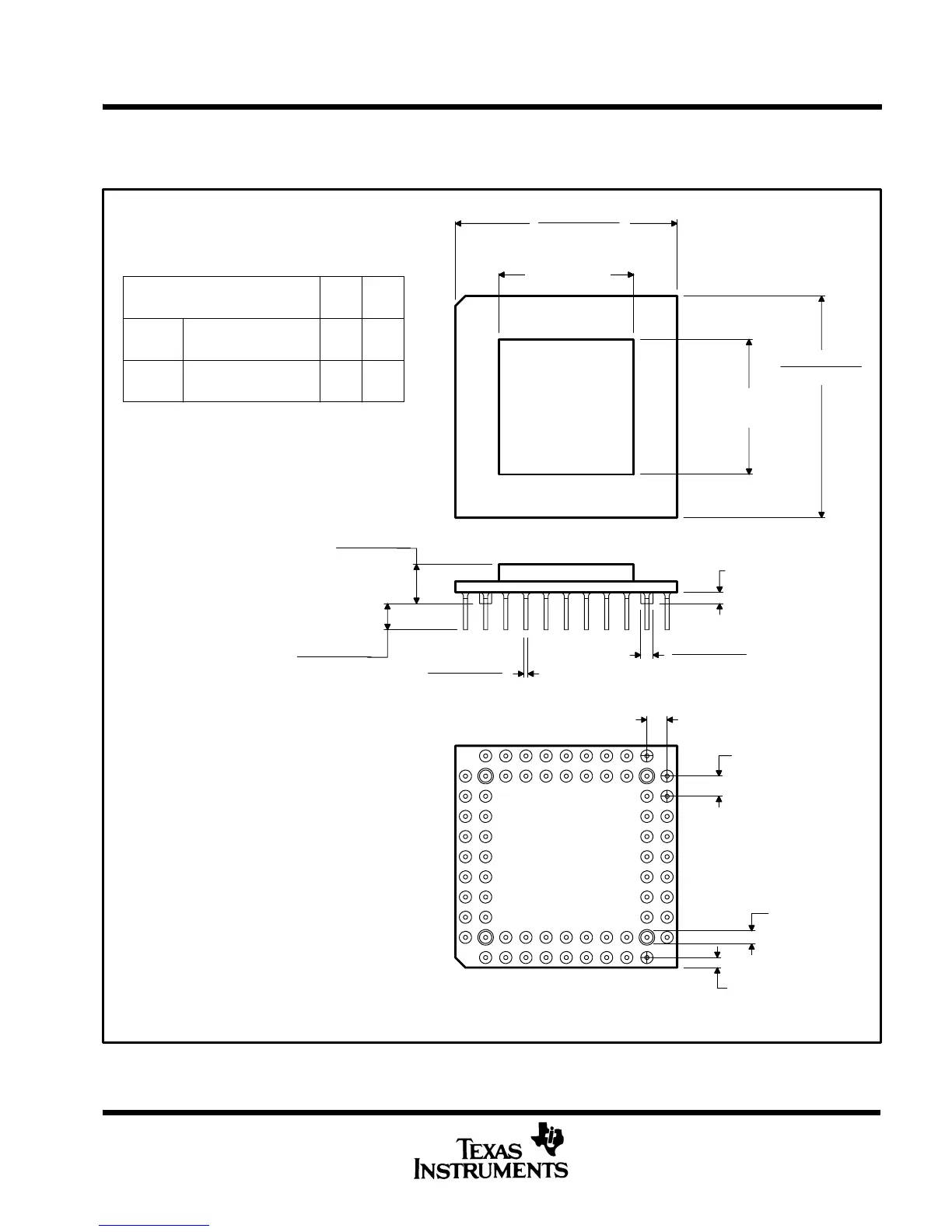

68-pin GB grid array ceramic package (TMS32020, TMS320C25)
ALL LINEAR DIMENSIONS ARE IN MILLIMETERS AND PARENTHETICALLY IN INCHES
28,448 (1.120)
27,432 (1.080)
4,953 (0.195)
2,032 (0.080)
3,302 (0.130)
2,794 (0.110)
0,508 (0.020)
0,406 (0.016)
1,575 (0.062)
1,473 (0.058)
Dia
2,54
(0.100)
T.P.
2,54
(0.100)
T.P.
1,524 (0.060)
Nom
4 P laces
1,27
(0.050)
Nom
1,397 (0.055)
Max
17,02
(0.670)
Nom
17,02 (0.670)
Nom
28,448 (1.120)
27,432 (1.080)
R

JA
Junction-to-free-air
thermal resistance
36 C/W
R

JC
Junction-to-case
thermal resistance
6 C/W
PARAMETER MAX UNIT
Thermal Resistance Characteristics
L
K
J
H
G
F
E
D
C
B
A
1234567891011
ADVANCE INFORMATION
