Carrying and Placing o f the Sewing Machine(Fig. 45, Fig. 46)
6)Remove the bobbin case .④
7)Wipe off any dust from the rotary hook ⑤ with a soft cloth, and check that there is no damage to the
rotary hook
⑤.Wipe out with the cloth dust and hook oil drained in the under cover near the hook.
a)Remove the bobbin from the bobbin case ④ and clean the bobbin case ④ with a cloth.
b)Insert the bobbin into the bobbin case ④,and then place the bobbin case
④ back into the
machine.
33

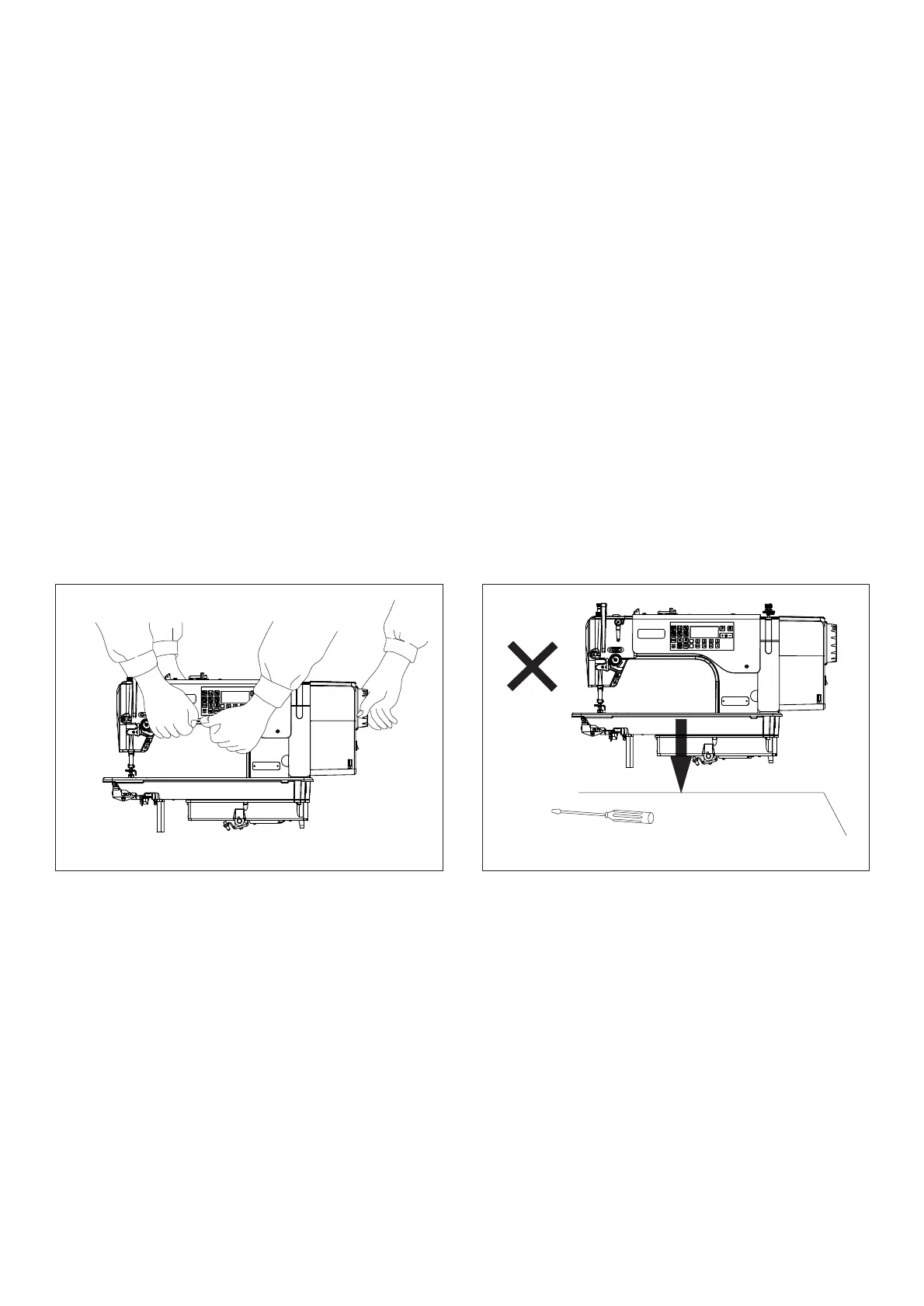

1.Carrying of the machine
It needs to hold tight frame body of the sewing machine by two people as the picture shows.
2.Attention for placing
Must be put in the plain site. Clear the screwdriver or something embossment out of the placing site.
Fig.46
Fig.45
