Liquid Cooling System
NOTE: Debris in front of the
engine or packed between the cool-
ing fins of the radiator can reduce
cooling capability. Using a garden
hose, wash the radiator to remove
any debris preventing air flow.
The cooling system capacity can be
found in the specifications chart. The
cooling system should be inspected daily
for leakage and damage. If leakage or
damage is detected, take the ATV to an
authorized dealer for service. Also, the
coolant level should be checked periodi-
cally.
NOTE: High engine RPM, low vehi-
cle speed, or heavy load can raise
engine temperature. Decreasing
engine RPM, reducing load, and
selecting an appropriate transmis-
sion gear can lower the temperature.
When filling the cooling system, use a
coolant/water mixture of 60/40 or a cool-
ant/water mixture which will satisfy the
coldest anticipated weather conditions of
the area in accordance with the coolant
manufacturer’s recommendations. While
the cooling system is being filled, air
pockets may develop; therefore, run the
engine for five minutes after the initial
fill, shut the engine off, and then fill the
cooling system to the bottom of the stand
pipe in the radiator neck.
Checking/Filling

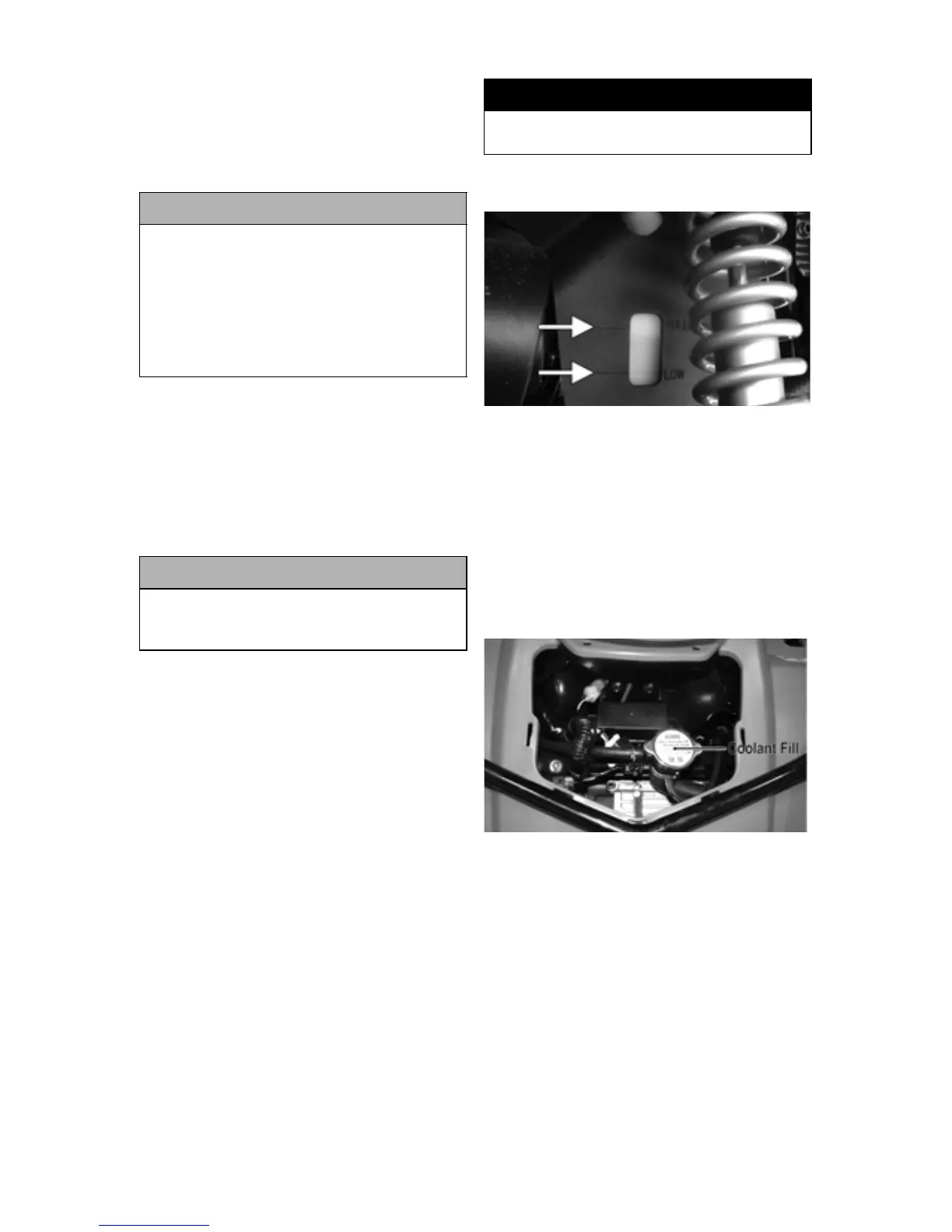

1. Locate the coolant reservoir on the
right side behind the radiator.
KC338B
2. Remove the cap and fill with the
appropriate coolant until coolant
level is between the LOW and
FULL lines. Do not overfill.
3. Install the cap on the reservoir.
4. Remove the radiator access panel;
then remove the radiator cap and add
coolant as necessary until coolant is
visible in the filler neck.
KC339A
5. Install the radiator cap and access
panel.
Shock Absorbers
Each shock absorber should be visibly
checked weekly for excessive fluid leak-
age (some seal leakage may be observed
but it does not indicate the shock is in
need of replacement), cracks or breaks in
the lower case, or a bent shock rod. If any
one of these conditions is detected,
replacement is necessary.
CAUTION
Do not use a pressure washer to
clean the radiator core. The pressure
may bend or flatten the fins causing
restricted air flow, and electrical com-
ponents on the radiator could be
damaged. Use only a garden hose
with spray nozzle at normal tap pres-
sure.
CAUTION
Continued operation of the ATV with
high engine temperature may result in
engine damage or premature wear.
! WARNING
Only check/fill the cooling system
when the engine is cold.
