Page D-7
10015775 Service Parts Manual

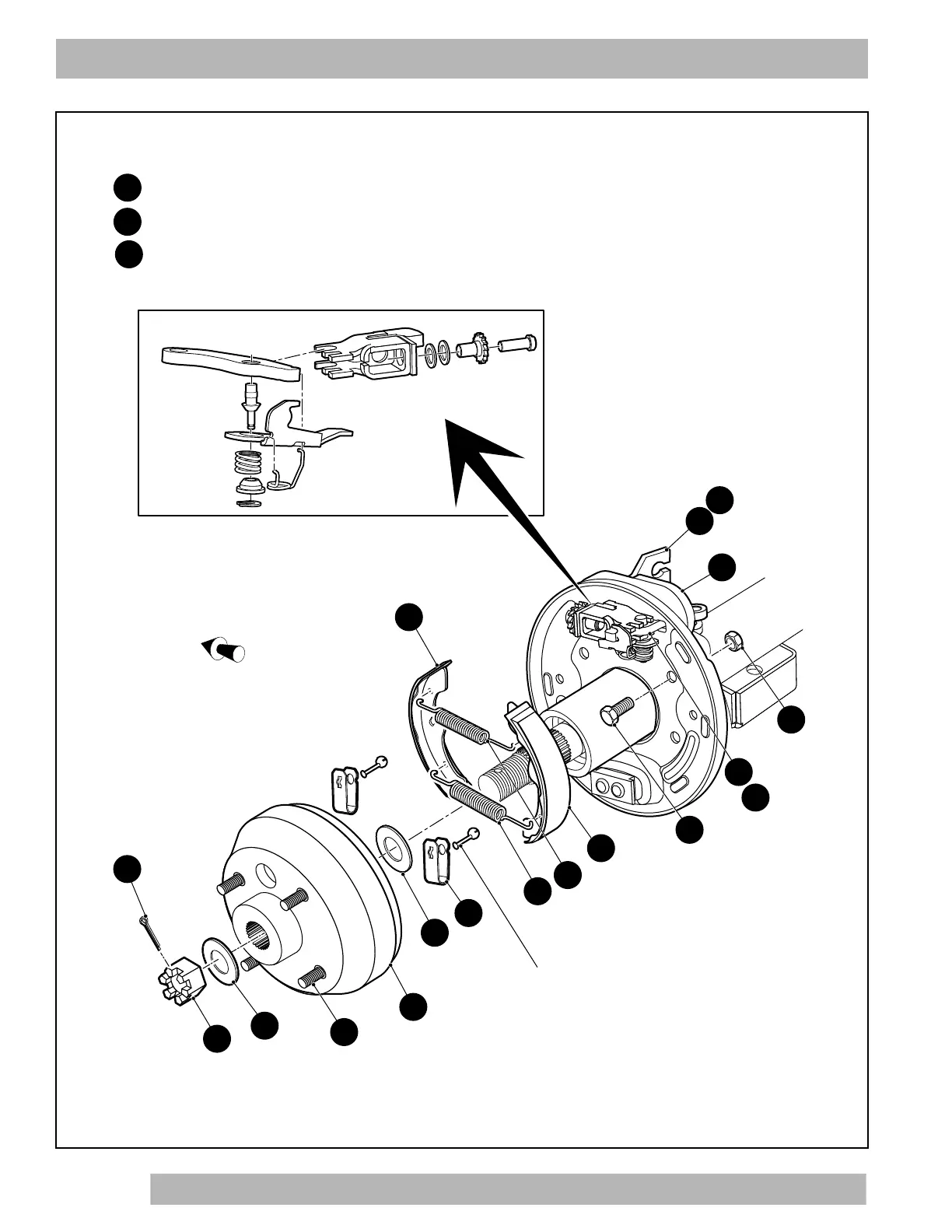

BRAKES
Front of Vehicle
4
26
25
10
18
17
1
2
16
Brake Assembly (Driver Side) includes items 3 - 9
Brake Assembly (Passenger Side) includes items 3 - 8, 10
Brake Drum Assembly includes items 17, 18
22
5
21
24
23
3
8
7
6
9
Tension Pin
14
13
