CRANKCASE/CRANKSHAFT
TGB
11
-
6

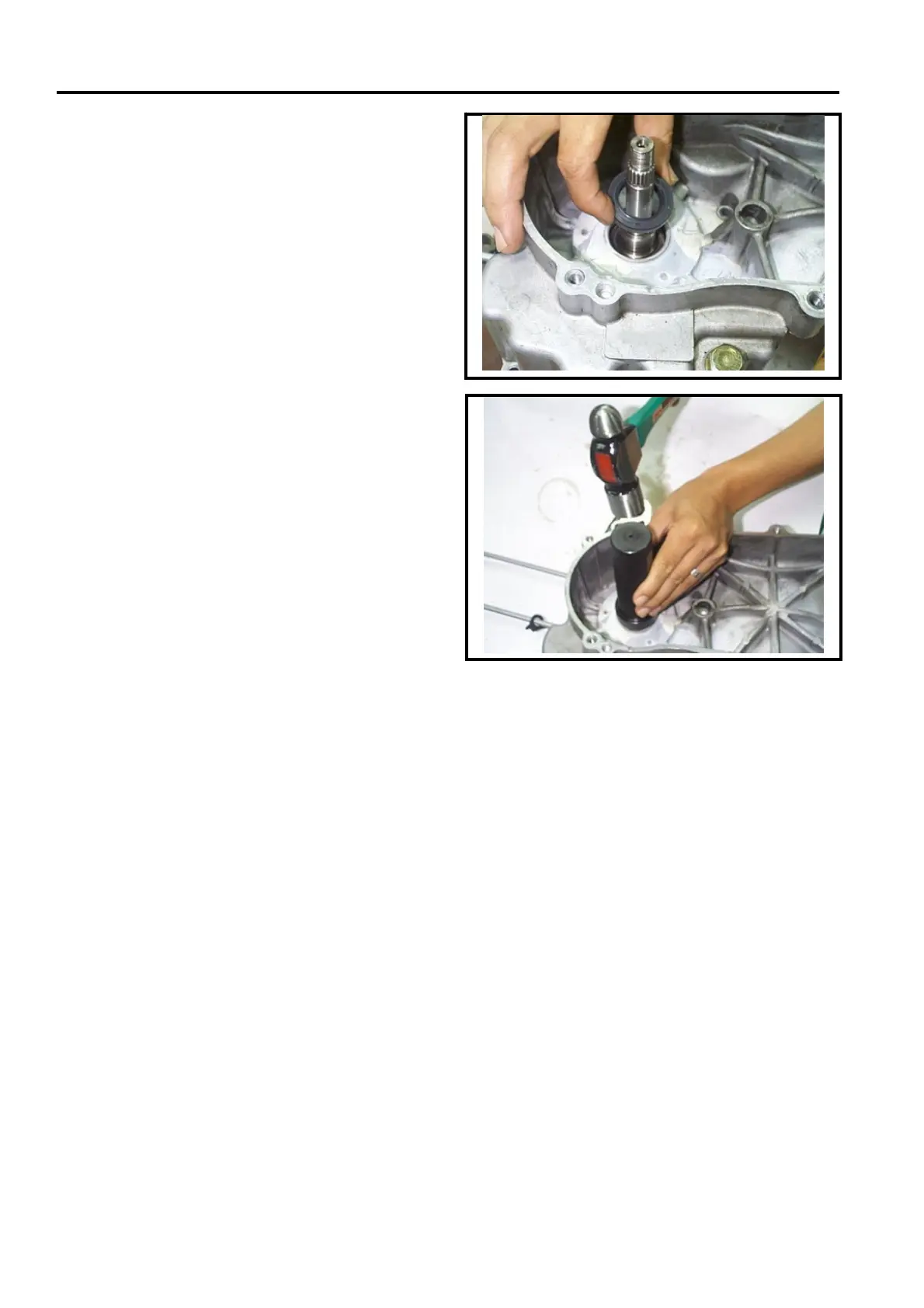

Apply with some grease onto the oil seal lip
and then install it onto the lef
t crankcase.
Press-fit the oil seal to specified position
with the oil seal installer
.
Special service tools: the oil seal
inst
aller
