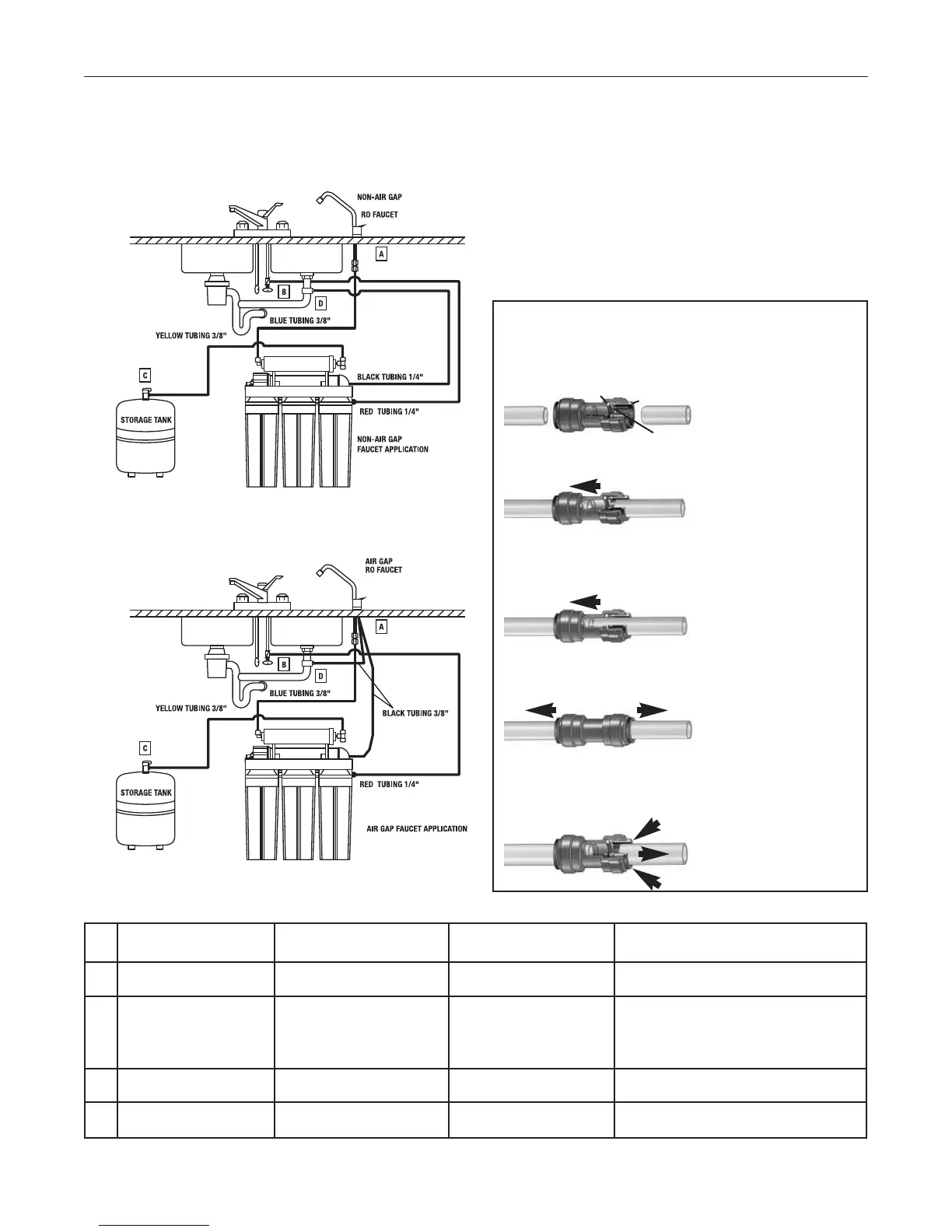

INSTALLATION QUICK LOOK
Please follow 4 color tubing diagram to complete installation
4 Connections Item No. Color of Tubing Description
A
RO Faucet FU-WDF-703-CP Blue Pure water to the Faucet
B Feed Water Valve
VV-WWC-1
JG-480821-S
VV-BSP014WJG
Red
Feed Water to RO System
C
Tank Ball Valve VV-BLP1438WJ Yellow Pure Water to Storage Tank
D
Drain Connector VV-DSP014/3 Black Discharge Water to Drain
CAUTION: When cutting supplied tubes,
predetermine the length by measuring the
distance between the components to be
connected.
No tools are needed to connect 4 colored
tubes.
Please follow any special plumbing codes in your area.
1. CUT THE TUBE SQUARE
Cut the tube square. It is essential that the outside diameter be free from score
marks and that burrs and sharp edges be removed before inserting into fitting.
For soft thin walled plastic tubing we recommend the use of a tube insert.
2. INSERT TUBE
Fitting grips before it seals. Ensure tube is pushed into the tube stop.
3. PUSH UP TO TUBE STOP
Push the tube into the fitting, to the tube stop. The collet (gripper) has stainless
steel teeth which hold the tube firmly in position while the o-ring provides a
permanent leak proof seal.
4. PULL TO CHECK SECURE
Pull on the tube to check that it is secure. It is a good practice to test the
system prior to leaving site and/or before use.
Disconnecting - PUSH COLLET AND REMOVE TUBE
To disconnect, ensure the system is depressurized before removing the tube.
Push in collet squarely against face of fitting. With the collet held in this
position, the tube can be removed. The fitting can then be re-used.
HOW TO MAKE A CONNECTION
O-Ring
Collet
Stainless Steel Teeth
