7
Assembling the Candy Claw Machine
A14
Make sure C11 is rotated so
its teeth are on the front.
H3

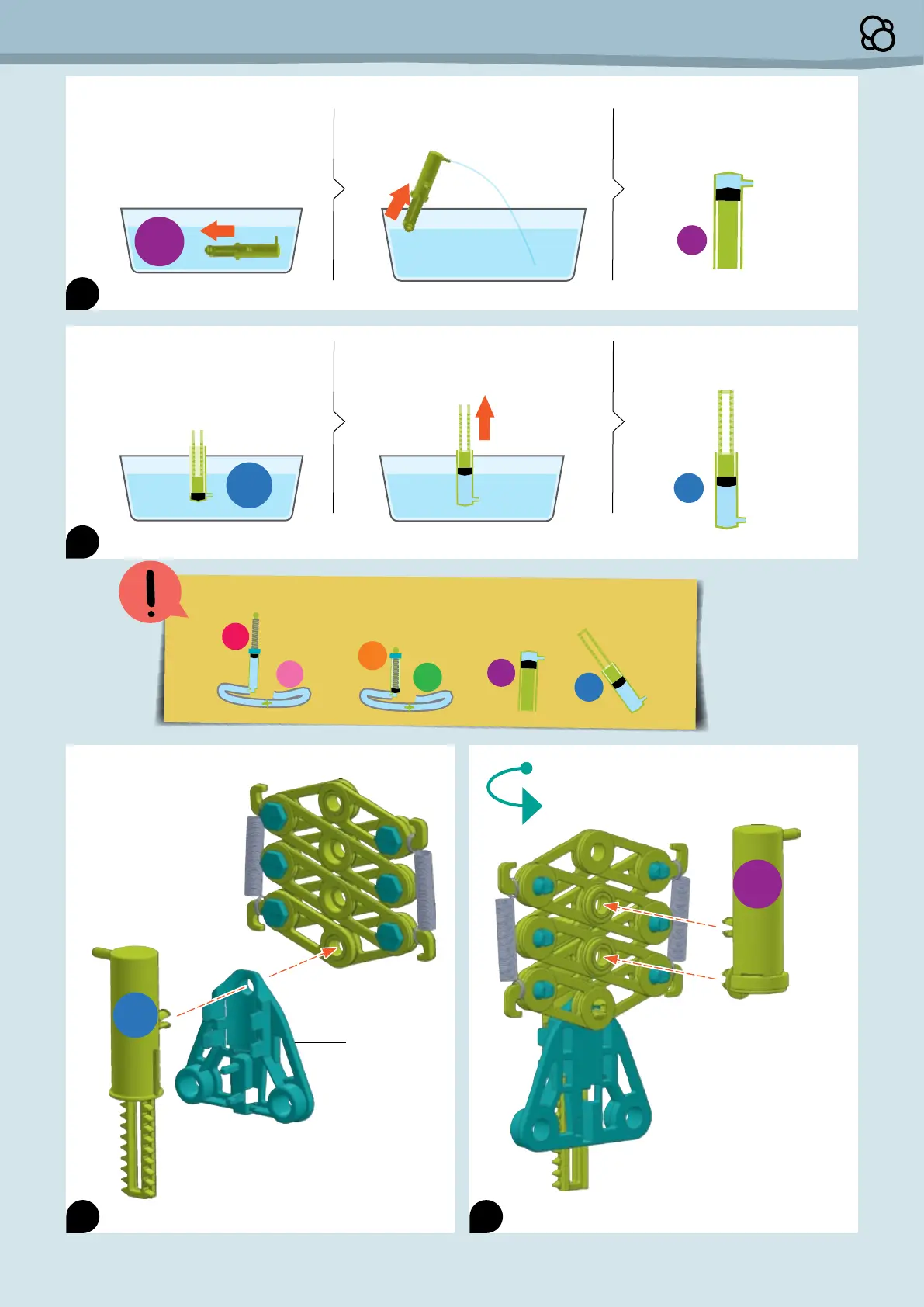

Submerge cylinder H3 in
the basin of water, then pull
back the piston.
Aim the nozzle back into
basin, then push the piston
back into the cylinder.
Some water will remain
in the top of H3. Set
aside.
Submerge the nozzle of
H4 in the basin of water.
Pull the piston upward
to fill the cylinder with
water.
H4
Water will remain in the
cylinder. Set aside.
H3
H4
H4
H3
Turn around
21
22
23
24
When you are fnshed fllng the hydraulcs wth water you wll have
T1
H1
H2
T2
H4
H3
