SPECIFICATIONS AND ELECTRICAL REQUIREMENTS
Model No THLS-C
Measurements Length 96cm
Width 27cm
Height 47cm
Weight 43kgs
*Log Capacity Diameter 5-25cm
Max Length 37cm
Splitting Force 5 ton
Ram Diameter 30mm
Motor 230v, 50Hz, 1500W
Hydraulic Pressure 24Mpa
Hydraulic Oil Capacity 2.9L
* Note:thediameterofthelogisnot theonly factor that determines how difficult it is to split.
 A small log may be difficult to split if it has knots or is aparticularlyhardwood.
Connectthemainsleadtoastandard230V±10%(50Hz±1Hz)electricalsupplywhichhas
under-voltage,over-voltage andover-current protection devicesaswellasaresidual
current device (RCD) with amaximumresidualcurrentratedat0.03A.
LIST OF MAJOR COMPONENTS

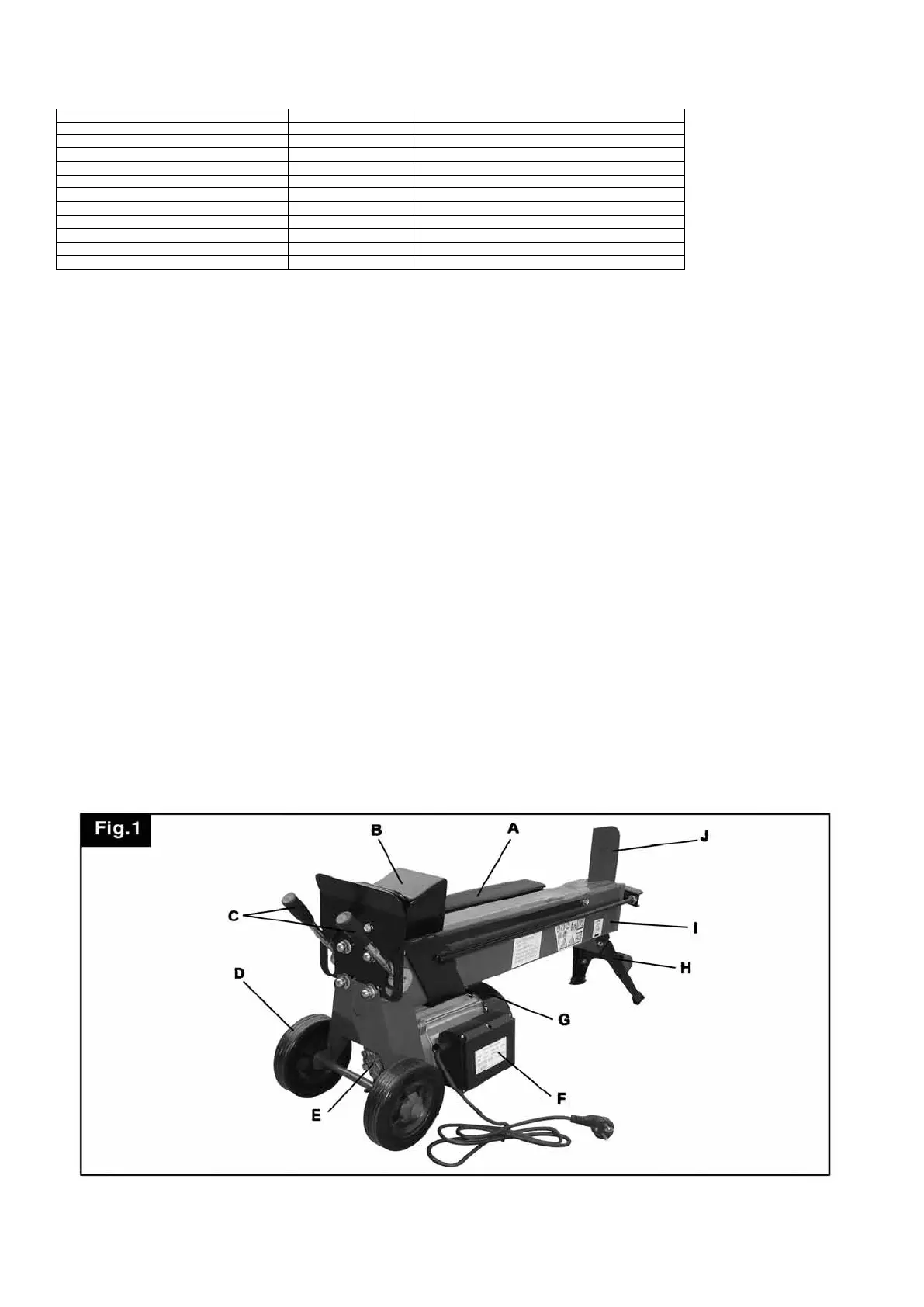

Checkthesecomponents accordingtothefollowinglistandFigure1below:
A. LogGuidingPlates
B. LogPusher
C. OperatingHandleAssembly
D. WheelandFrame
E. OilPump
F. ElectricalMotorSwitch
G. ElectricalMotorAssembly
H. SupportingFeet
I. MainBody
J. SplittingWedge
