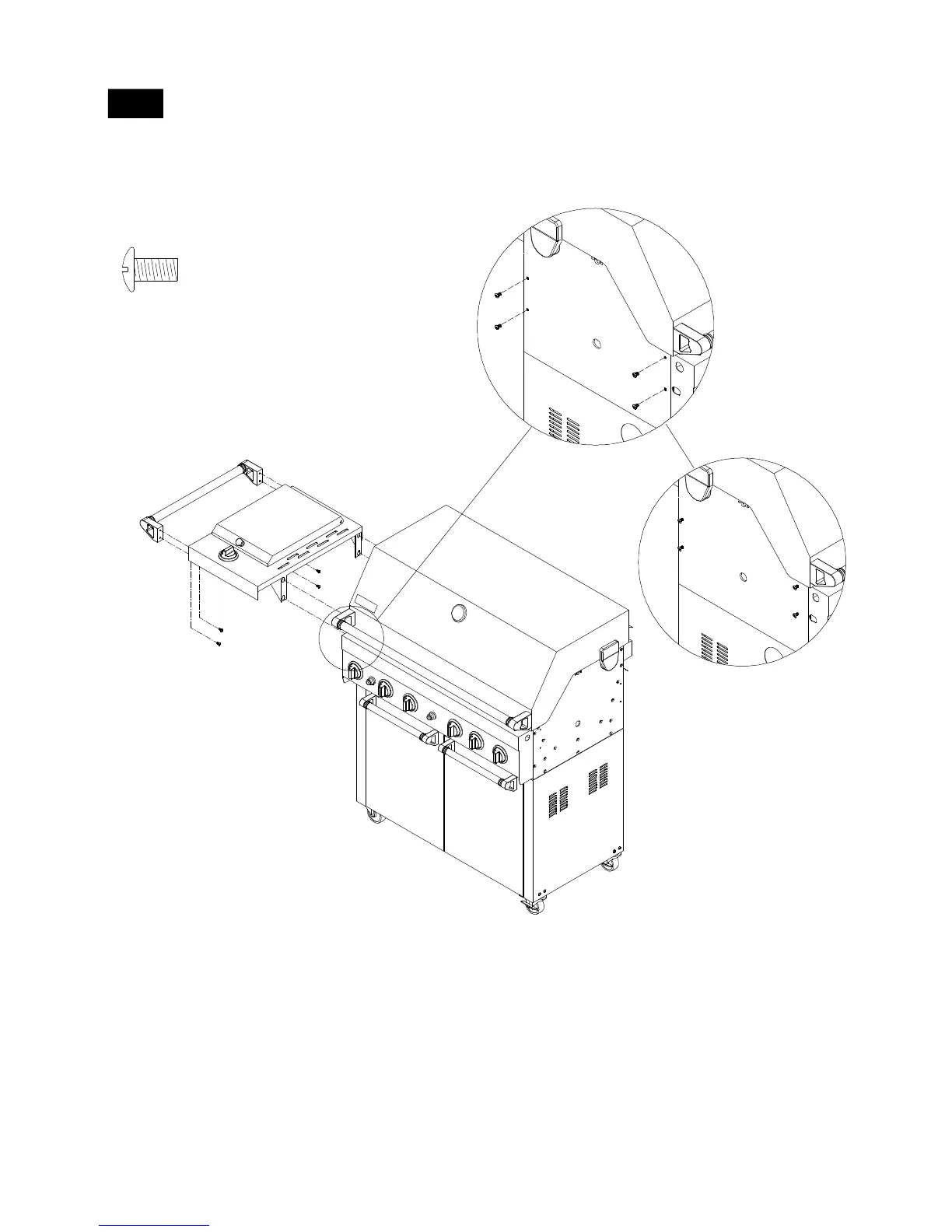

Attach four 1/4"x1/2" Phillips Head Screws into the top threaded holes on the Left Bowl Side Panel. Do not

tighten these screws. Allow enough room to slide the slotted holes on the Side Burner Frame Bracket onto the

screws. Place and position the Side Burner Frame then tighten the previous screws securely.

Install The Side Burner Frame

Phillips Head Screw

1/4"x1/2"

Qty. 4

Ref. # S112G04081
