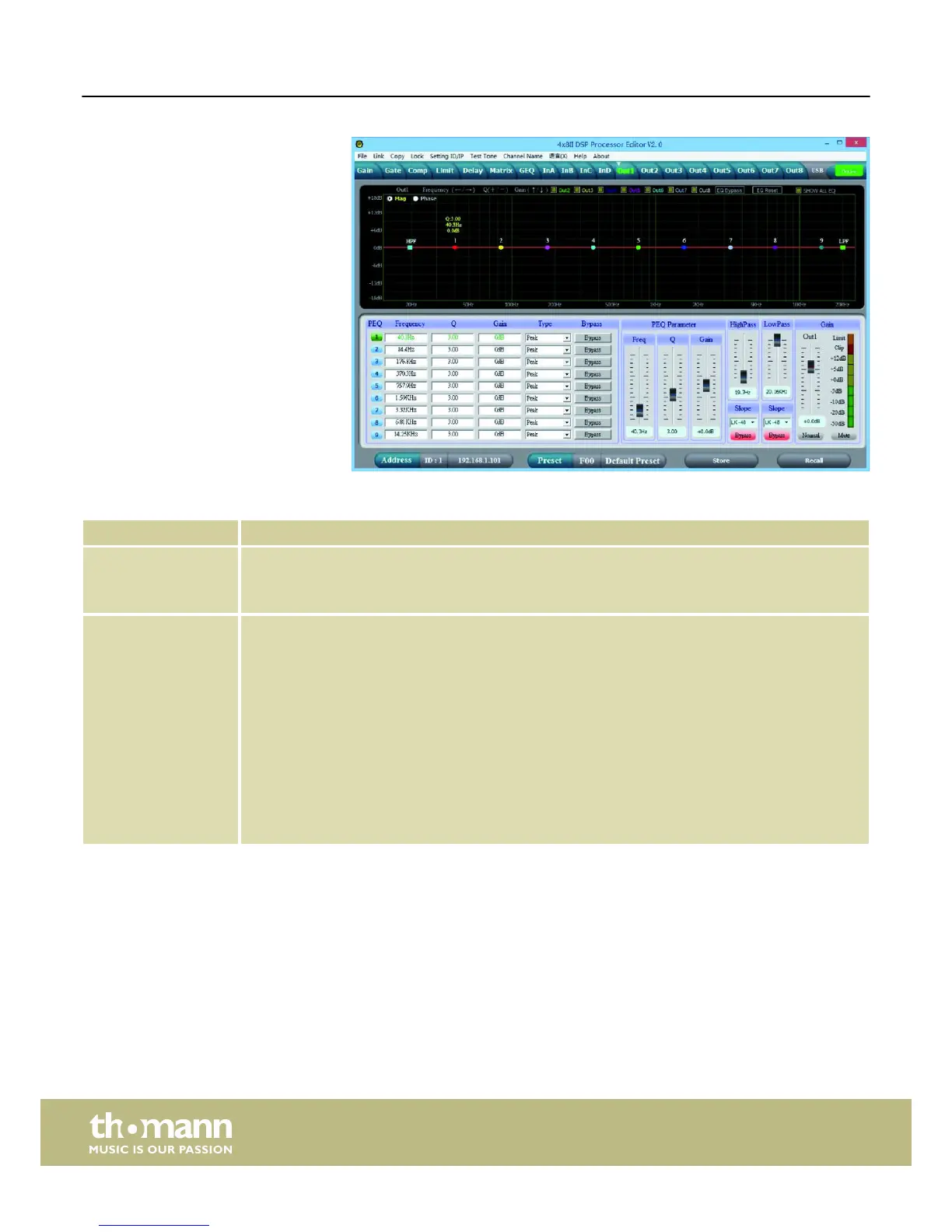

Range Meaning
Display area Use the option fields ‘Mag’ and ‘PHASE’ to switch the diagram from Cartesian coordinates (level vs.
frequency) to polar coordinates (angle vs. frequency).
Use the option field ‘SHOW ALL EQ’ to show the parameters for all nine of the frequency bands.
Control area You can enter the parameters of the parametric equalizer for each input channel and all nine fre-
quency bands (numbered with ‘PEQ’) in the left part of the window directly as numerical values:
Centre frequency, filter quality, slope, filter type. With the ‘Bypass’ button, the equalizer for the
respective frequency band and the respective channel can be temporarily switched off.
In the middle part of the window (‘PEQ Parameter’) you can set the parameters centre frequency, filter
quality, and slope unit using the faders. The setting is based on the frequency band that is high-
lighted green in the left part of the window.
You can select the cut-off frequency and the filter type for the low pass and the high pass filter. Use
the ‘Bypass’ button to temporarily switch off the filter.
Drag the fader into the right part of the window using the mouse to set the level for the input
channel. The ‘Mute’ button mutes or unmutes the respective channel. The ‘Normal’/‘Inverse’ button
shifts the phase of the respective channel by 180° if needed.
“Out” tab
Control on the computer
Digital speaker management system
28
