Page 11
STEP 7

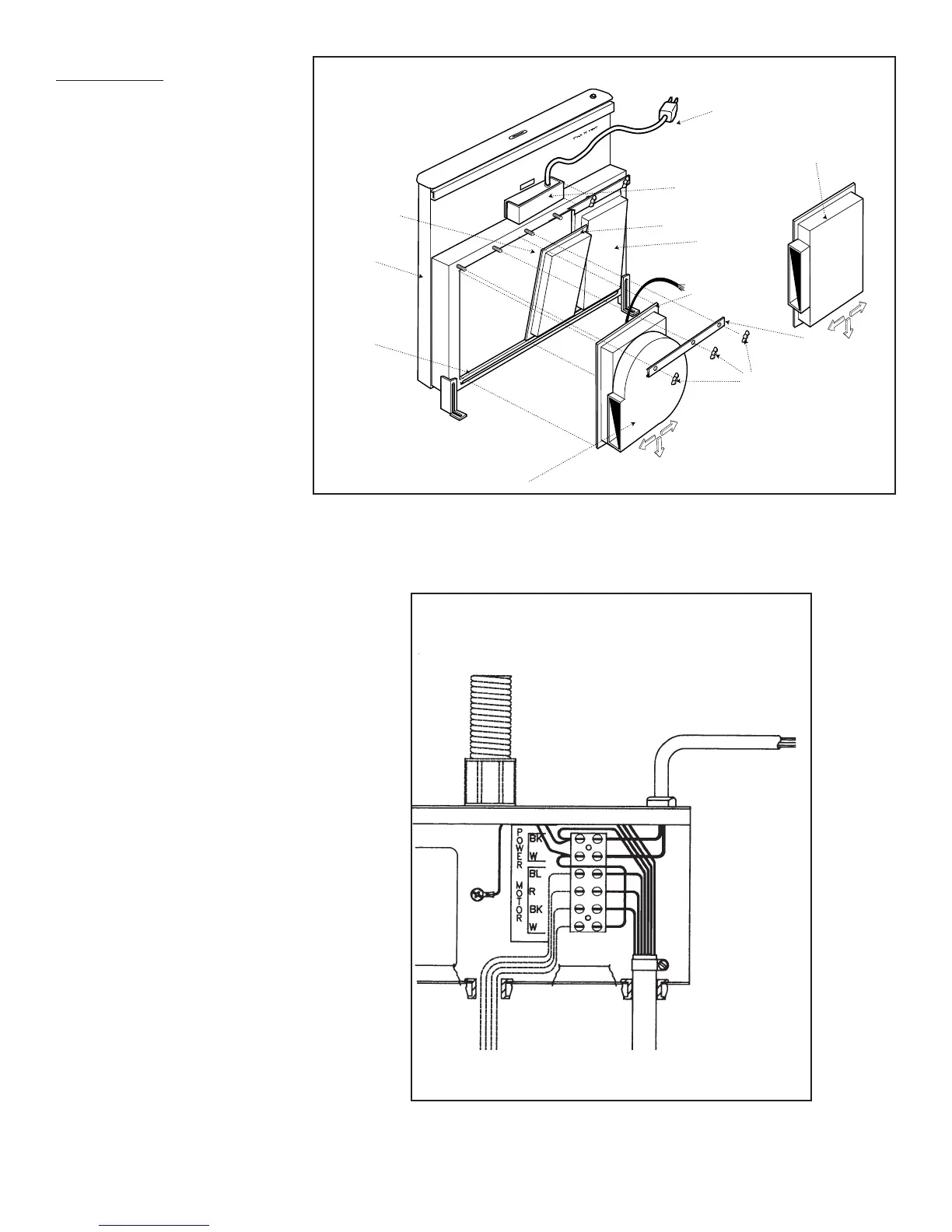

MOUNT INTEGRAL
BLOWER OR
Remote Blower
Transition
(See Fig. 11)
Figure 10
From Internal
Blower if Used
Conduit to Remote
Blower if Used
Power Cord
A. Remove knockout on top of J-
Box and connect conduit with
5 wires from remote blower.
Hook up wires per wiring dia-
gram, Figure 10. Replace J-
Box cover.
B. Install duct transition by set-
ting flanged edge of transition
in panel groove on bottom of
vent intake. Secure top of
transition with channel clamp
and wingnuts.
C. Connect Blower to ductwork.
Note: Blower or duct transition
box may be installed with duct
outlet left, down or right. In-
stall blower or duct transition
in such a way that access pan-
els can be removed for clean-
ing.
Remote Blower VTR600R
or VTR1000Q only
Integral Blower VTN600
Only
A. Place blower in front of intake
on bottom of cabinet, take
blower wires and guide them
through grommet to opened J-
Box.
B. Place lower flanged edge of
blower in panel groove in bot-
tom of vent intake. Secure top
of blower with clamp chan-
nels and wing nuts.
C. Pull wires in J-Box to take out
any slack from blower com-
partment. Cut off excess wire
length. Strip wires
1
/4" and
hook up to terminal strip per
wiring diagram, Fig. 10. Re-
place J-Box cover.
D. Connect Blower to
ductwork.
Figure 11
"Clean-out"
Area
Vent Intake
Panel Groove
Vent
Power
Cord
Duct Transition
Access
Panel
Integral Blower
VTN600CVR
Wing Nuts
CVD310
or
CVD314
Flanged Edge
of Blower
Flanged Edge
Electrical Connection
Box (J-Box)
Channel
Clamp
To Next Page
