Thermador CVS30R User Manual

Page 11
Step 7: Mount Integral Blower or
Outlet Duct Transition for Re-
mote Blower
Integral Blower VTN600 (See Figures
10 and 12 for further detail):
A. Attach blower in front of round exhaust
outlet with 4-6 (depending on configura-
tion) #8 sheetmetal screws
B. Feed cord from blower through strain
relief.
C. Secure strain relief with screws.
D. Attach strain relief to downdraft near
junction box.
E. Connect cord to downdraft at 6 pin con-
nector
F. Connect blower to ductwork.
Remote Blower VTR600R or VTR1000Q
(See Figures 11 and 12 for further detail):
A. Remove junction box cover and connect
conduit with 5 wires from remote blower.
Hook up wires per Wiring Diagram,
Fig. 10. Replace junction box cover.
B. Attach duct transition at mounting holes
with sheetmetal screws.
C. Feed remote blower pigtail through strain
relief.
D. Attach strain relief to downdraft near
junction box.
E. Connect pigtail to downdraft at 6 pin
connector.
F. Run pigtail wires to junction box.
G. Inside junction box, connect conduit with
five wires from remote blower. Use a
conduit connector to secure.
Note: Blower and duct transition box may be
installed with duct outlet left, down or
right. Install blower or duct transition in
such a way that access panels can be
removed for service.
Strain Relief
Junction Box
Conduit To
Remote Blower

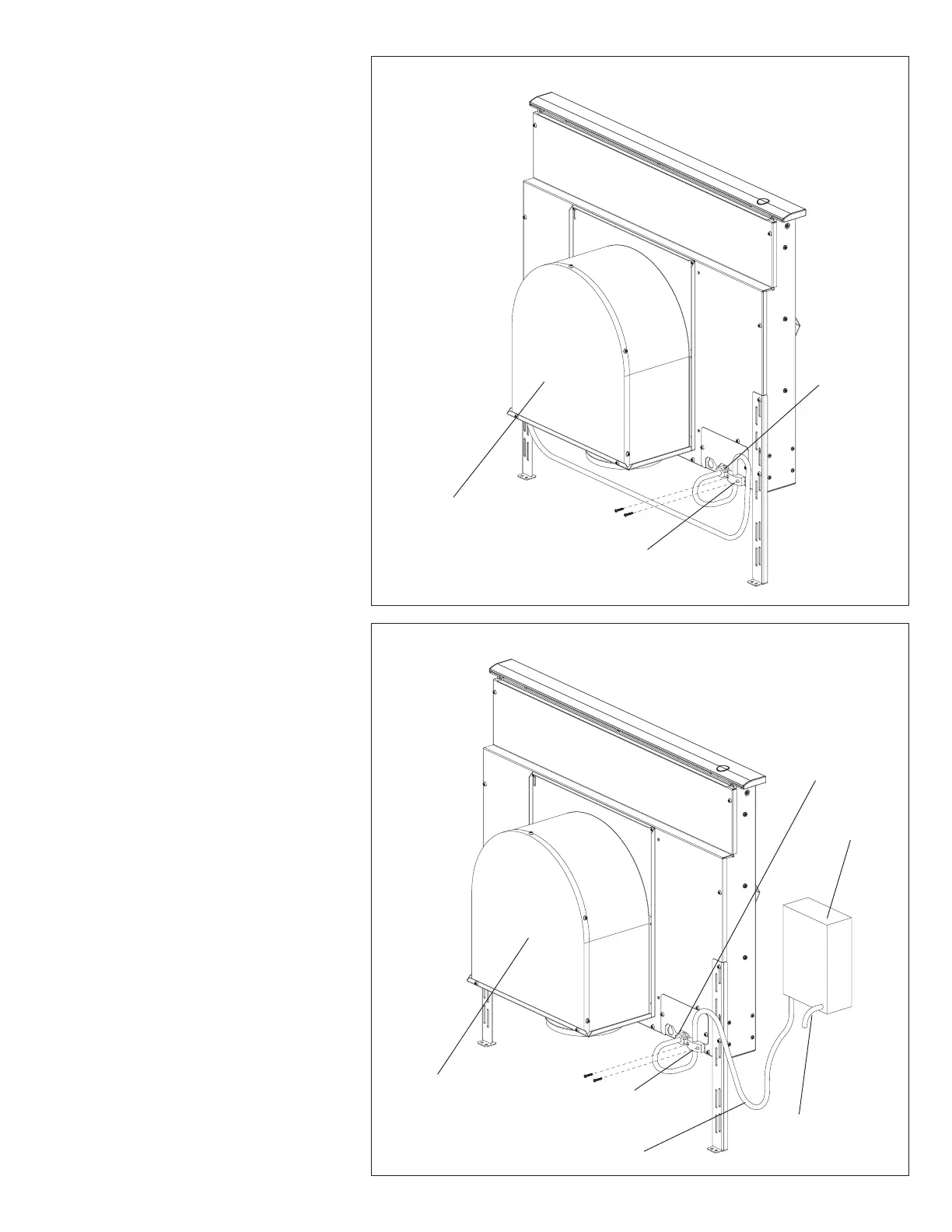

Figure 11 - Remote Blower
Figure 10 - Internal Blower
Internal Blower
Strain Relief
Transition
CV2T6
6 Pin
Connector
Remote Blower
Pigtail
6 Pin Connector
