Page 5

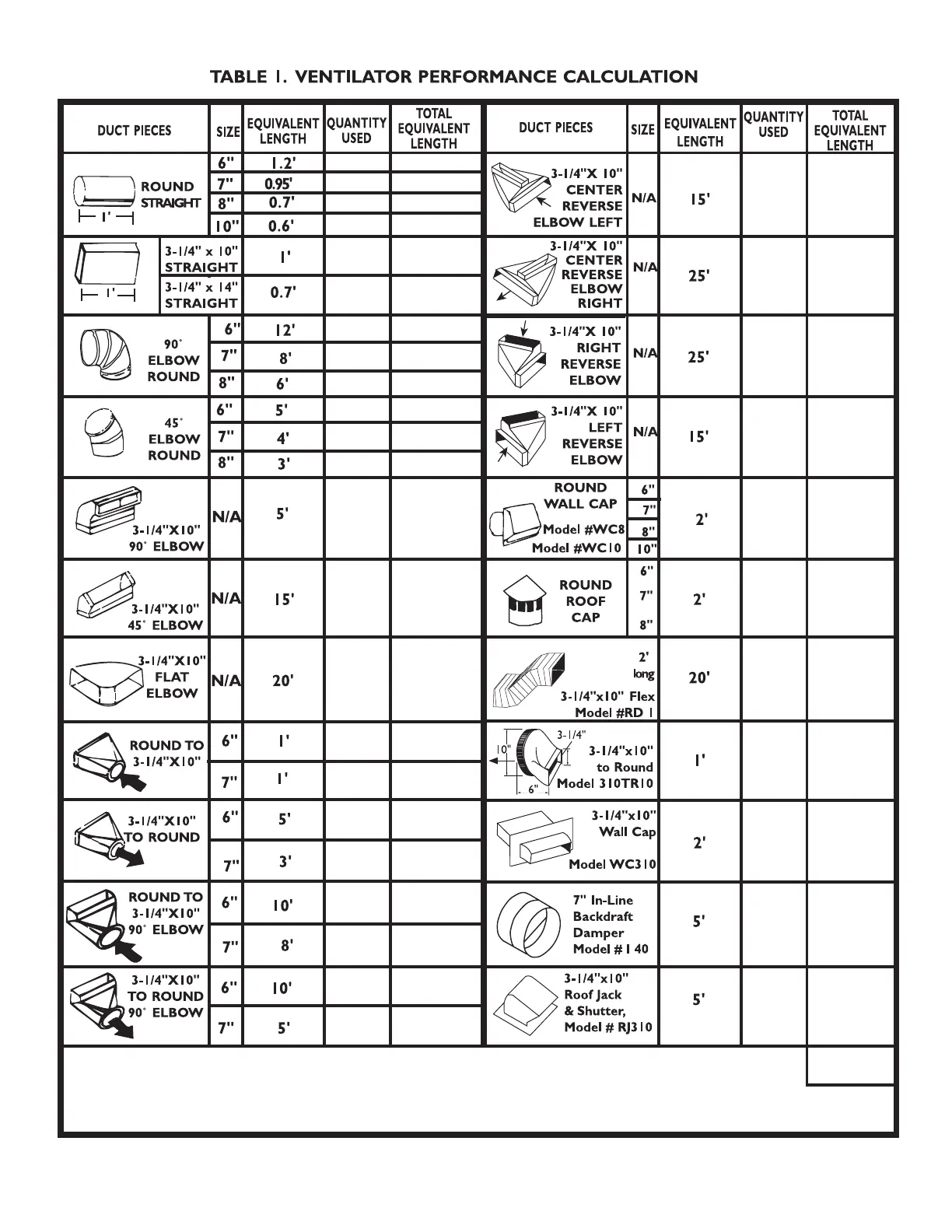

NOTE: Fittings with model numbers stated are available through your
Thermador dealer
.
All other fittings are available from most major
hardware stores.
TOT
AL
(of both columns)=
MUST be LESS than:
Integral Blower - 85 ft.
Remote Blower - 70 ft.
6
8
Table of Contents
Safety Instructions
3
Step 1: Plan the Installation
4
General Description
4
Step 2: Prepare Countertop Cutout
8
STEP 3: Prepare Duct Cutouts in Cabinet
11
Step 4: Install Ductwork (Remote Blower, if Used)
12
Step 5: Install Electrical Service
12
Step 6: Mount Vent and Cooktop
12
Step 9 Verify Installation, Operation and Cooktop Alignment
15
Instructions de Sécurité
16
Pièces Nécessaires
16
Pièces Fournies
16
Étape1 : PLAN D'INSTALLATION
17
Description Générale
17
Instrucciones de Seguridad
29
Partes que Se Incluyen
29
Descripción General
30
