Thermador CVS30R User Manual

Page 7

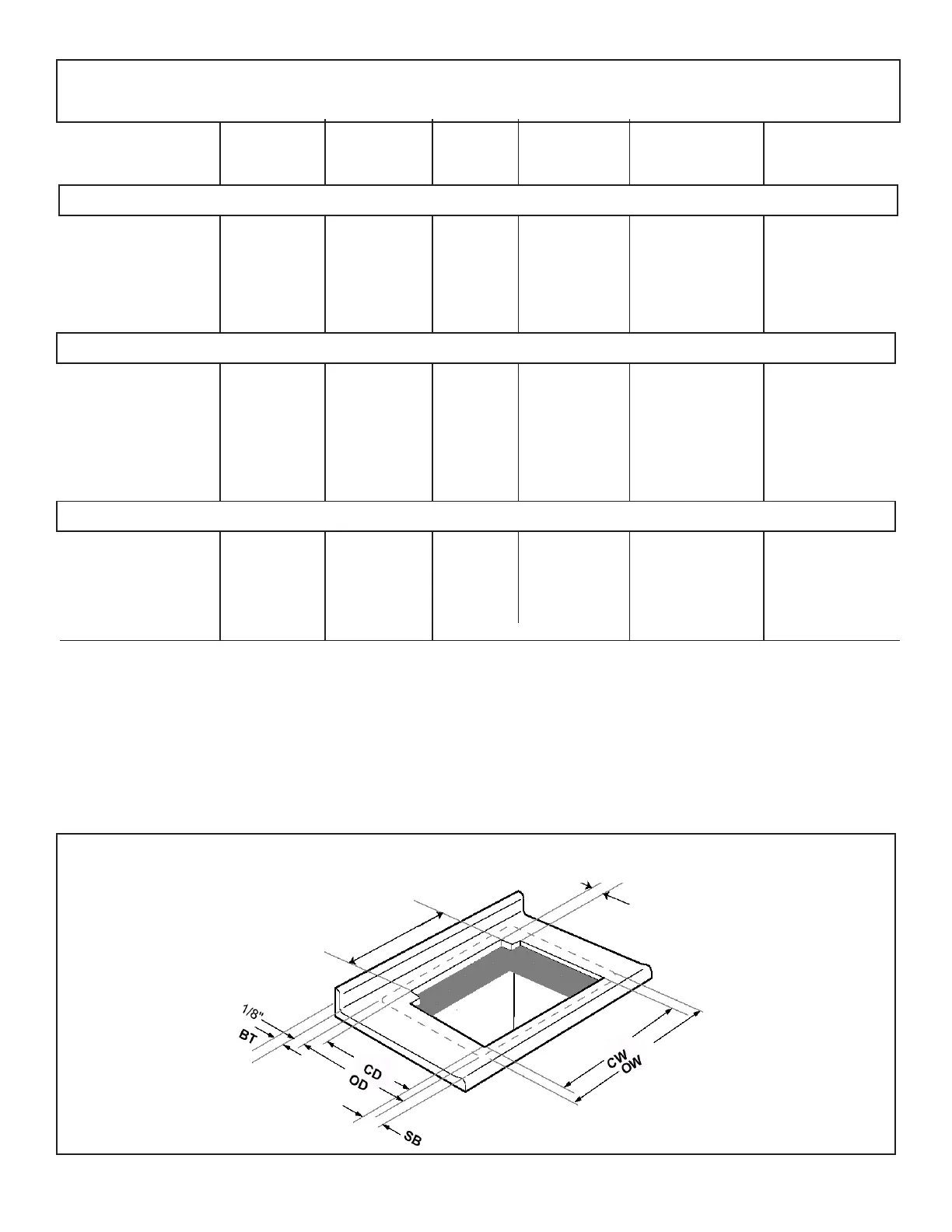

Figure 7
TABLE 2: INSTALLATION DIMENSIONS FOR CVS30R/ 36R/ 45R WITH THERMA-
DOR COOKTOP
INSTALLATION WITH THERMADOR COOKTOPS WHEN SPECIFIED
Table 2 Notes
* Dimension "SB" is the minimum distance from the leading
edge of the counter to the leading edge of the cutout.
++Dimension "BT" is the thickness of backsplash that
provides 1/4" clearance between vent and backsplash.
Any backsplash with a curved radius where it meets the
counter will require additional clearance. Thicker
backsplashes may be used by increasing the counter
and cabinet depths.
All dimensions are in inches and are based upon a
standard 24" deep base cabinet with 25" countertop.
* * SGC and SGCS: width in table is at the widest point
(center).
Refer to cooktop Installation Instructions for complete
information prior to making any cutouts.
Clearance is provided to allow raising of the hinged main
top.
Cooktop CW CD OW OD SB BT, Max++
Model No. Cutout Cutout Overall Overall Minimum Backsplash
Width Depth Width Depth Set Back Thickness
30” Cooktops: Installed with UCV30
SGS304* 28-15/16 22-1/4 31 23-3/4 1-1/2 3/4
SGSX304* 28-15/16 22-1/4 31 23-3/4 1-1/2 3/4
CET304 28-3/4 22-1/8 31 23-7/8 2-1/2 0
CEP304 28-3/4 22-1/8 31 23-7/8 2-1/2 0
CEM304 28-3/4 22-1/8 31 23-7/8 2-1/2 0
36”Cooktops: Installed with UCV36
SGS365** 34-15/16 22-1/4 37 23-3/4 1-1/2 3/4
SGSX365** 34-15/16 22-1/4 37 23-3/4 1-1/2 3/4
CET365 34-3/4 22-1/8 37 23-7/8 2-1/2 0
CEP365 34-3/4 22-1/8 37 23-7/8 2-1/2 0
CEM365 34-3/4 22-1/8 37 23-7/8 2-1/2 0
45” Cooktops: Installed with UCV45
SGS456 43-15/16 22-1/4 46 23-3/4 1-1/2 3/4
SGSX456 43-15/16 22-1/4 46 23-3/4 1-1/2 3/4
CET456 43-3/4 22-1/8 46 23-7/8 2-1/2 0
CEP456 43-3/4 22-1/8 46 23-7/8 2-1/2 0
CEM456 43-3/4 22-1/8 46 23-7/8 2-1/2 0
CVS245: 43 3/8"
CVS236: 34 3/8"
CVS230: 28 3/8"
2 1/4"
