16

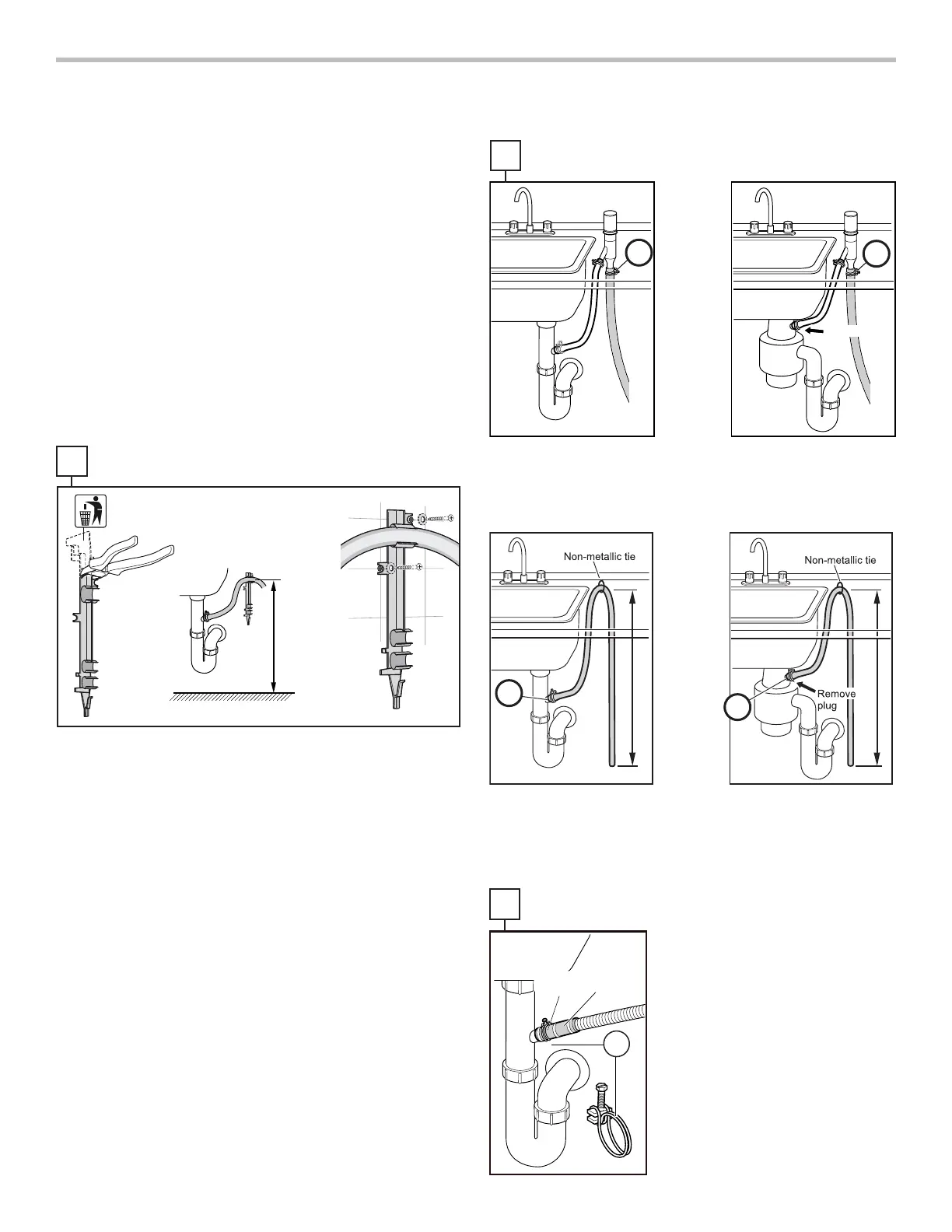

Drain Connection
IMPORTANT NOTES about your drain connection:
• If local ordinance require an air gap, install it according to
the manufacturer’s instructions.
• If the dishwasher drain hose is to be connected to a dis-
poser dishwasher drain connection, remove the plug from
the disposer’s dishwasher drain connection.
• The dishwasher drain hose must have one place along its
length that is securely attached 33" (508 mm) above the floor.
• The drain hose length can be extended if necessary. The
maximum length of the drain hose, including the hose
leading to the air gap, is 150" (380 cm).
• You may use the piece you removed in Step 7 to attach to
the inside of the adjacent cabinet and hang the drain hose
from as shown (screws are not supplied) in place of using
a Nonmetallic Tie as pictured in the next illustrations. Do
not exceed 43” in drain hose height.
• The dishwasher drain hose must be installed with a portion
of it at least 33” (84 cm) off the floor; otherwise the dish-
washer may not drain properly.
Note: Place hose clamp (C) around end of drain hose BEFORE
connecting to the plumbing.
19
min 33” (84 cm)
max 43” (110 cm)
min 33” (84 cm)
max 43” (110 cm)
• The dishwasher drain hose may be connected to the drain
plumbing using an air gap in one of two ways:
- Connect to the under sink dishwasher drain connection (20a).
- Connect to a disposer dishwasher drain connection (20b).
• The dishwasher drain hose may be connected to the drain
plumbing using a high loop in one of two ways:
- Connect to the under sink dishwasher drain connection (20c).
- Connect to a disposer dishwasher drain connection (20d).
20
a
B
B
B
• Use the clamp provided (C) to
attach the drain hose to the
house plumbing as shown.
21
B
B
b
c d
