If your dishwasher came with a non-slotted toe panel (H) and
toe panel brackets (J) follow these instructions; otherwise
skip to 25 now.
• Plug metal brackets (J) into openings on both sides of the
base as shown.
• Use screw (I) to mount metal brackets to the base as shown.
23

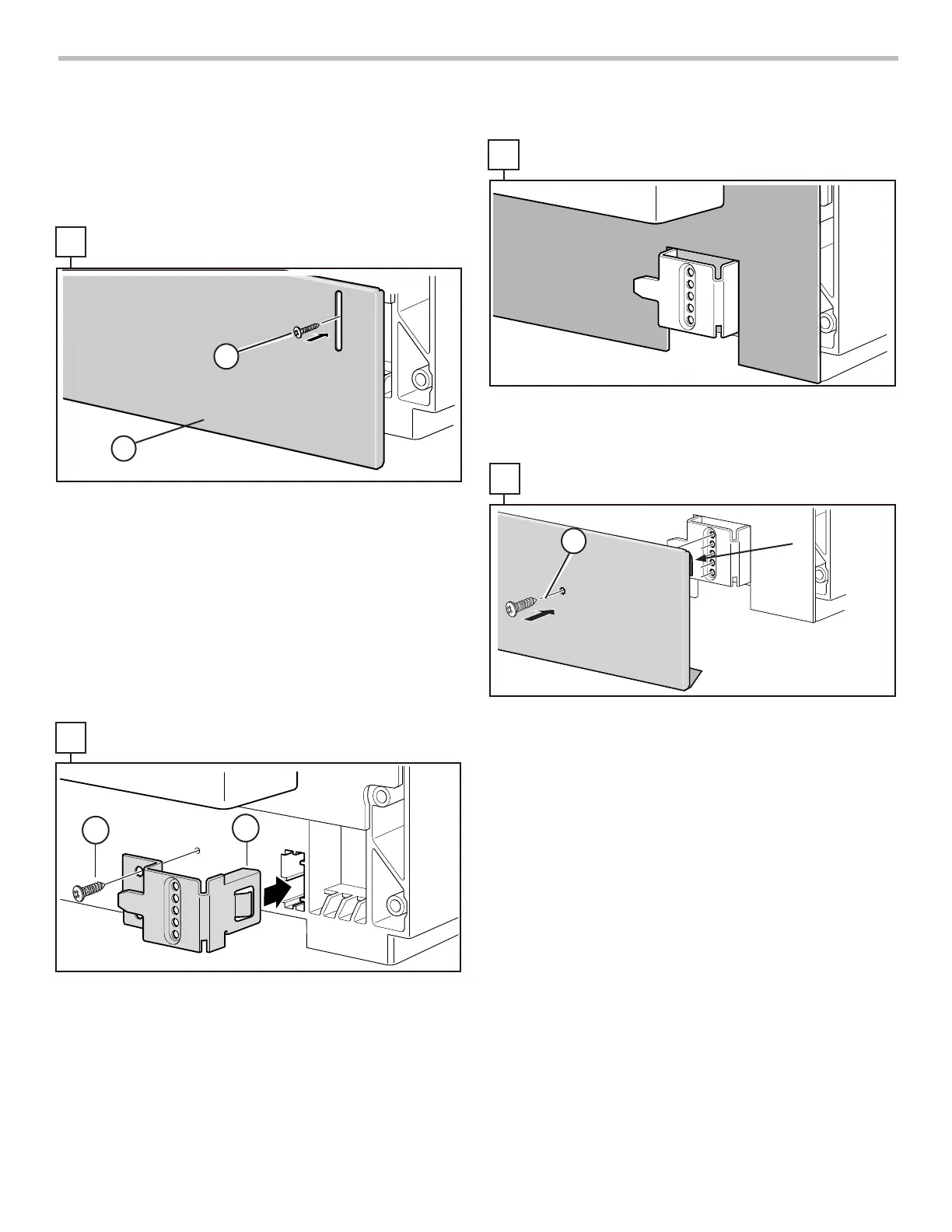

Attaching the Toe Panel
If your dishwasher came with a slotted toe panel (F) only,
follow these instructions; otherwise skip to 23 now.
Note: If using the slotted toe panel shown in 22 above, then
metal mounting brackets shown in 23 are not required.
• Position the slotted toe panel (F) on the dishwasher. Allow
it to rest on the floor.
• Attach using screws (G) as shown. Use only the supplied
screws to avoid damaging the dishwasher. The toe panel
should be flush with the floor. Your installation is complete!
22
F
G
Before attaching the toe panel, remove the protective film
from the outer door and the toe panel.
• Tuck the pre-attached rubber apron behind the fingers on
the metal brackets as shown.
24
• Slide metal toe panel into position with folded hem edge at
the top. Make sure the bottom of the toe panel is flush with
the floor. Use screw (I) to mount the toe panel through the
hole it matches up with on the metal brackets (J) as shown.
Note: The toe panel height can be adjusted by screwing into
a different hole in the bracket.
• Check for correct fit of apron by opening the door. Ensure
the apron does not bind up and can freely move up and
down behind the toe panel. Your installation is complete!
