Product Features
The most universally applicable unit in the electric water heater range for low and medium
volumes of water, the ThermaQ Midi immediately produces good quality hot water at mains
pressure whenever you need it. Available in both over and under sink varieties suitable for
any water system setup, the Midi can be sited almost anywhere. The small dimensions and
low power consumption ensure the Midi will be leading the ThermaQ revolution in electric
water heating.
The unit has the following features:
1. High strength ABS splash-proof casing.
2. Streamlined, aesthetic outer body for unobtrusive siting.
3. Built in immersion heater with carefully selected kW ratings mean quick
reheats but easy installation that does not require an electrician.
4. Replaceable magnesium anode.
5. Compact square design makes for easy siting above or below the sink.
6. Fully incorporated safety controls.
7. High value product insulation gives ‘B’ ErP banding for all of the Midi range.
Product Structure

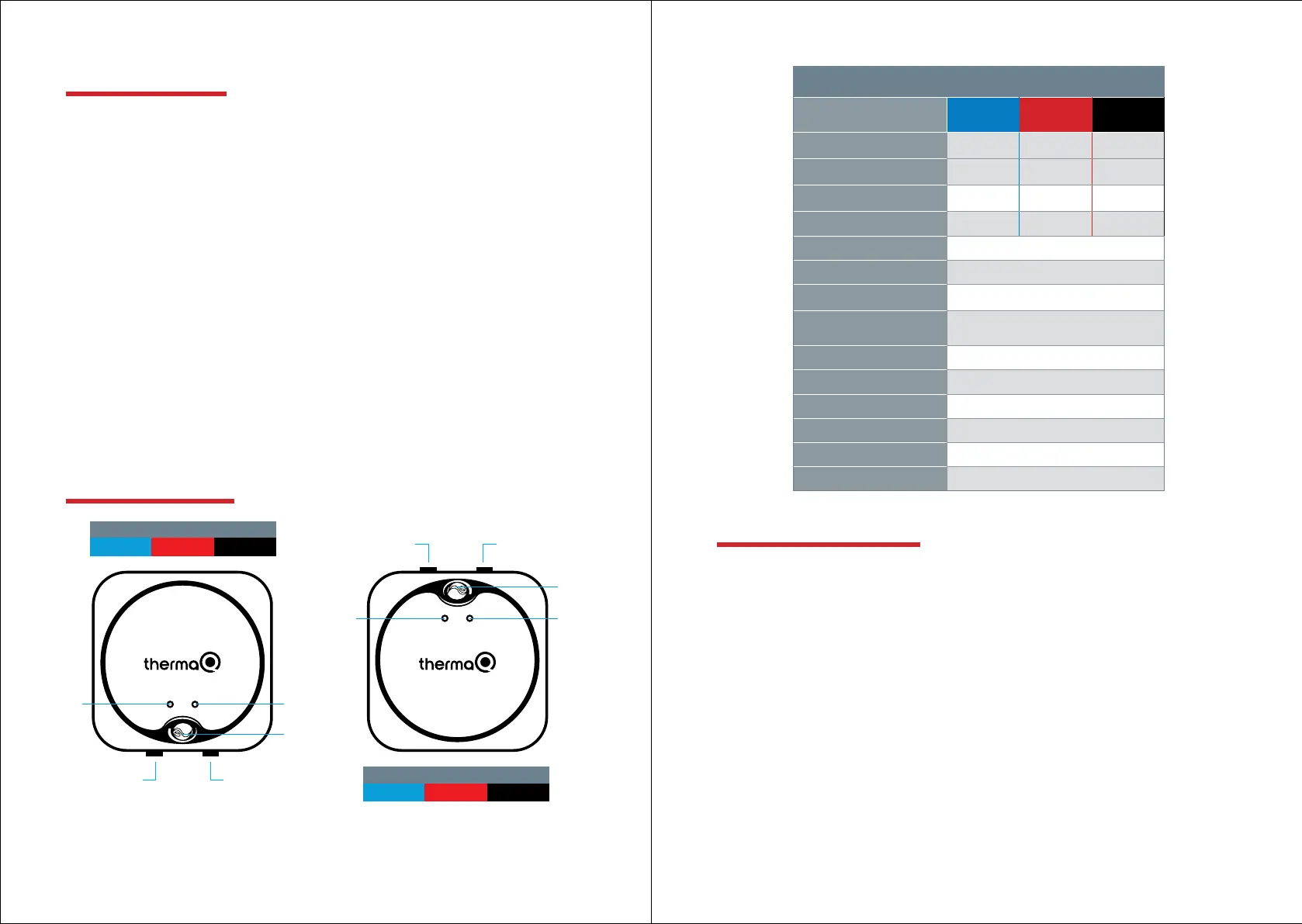

Fig 1. Above and below sink units.
Installation Guideline
The installation must be in compliance with the National Electrical
Guidelines, as well as your local electrical and plumbing regulations.
1. Make sure the appliance is intact, and the ttings are complete.
2. Please make sure the mains power supply, incoming water pressure and the
grounding conditions are adequate, and the ammeter and wire are at the correct
standard required for installation.
3. The appliance must be properly grounded due to the dedicated branch circuits of
high voltage within the unit. Ground wires must be brought to the 'ground' at the
circuit breaker panel.
4. This appliance MUST be permanently connected to the xed circuit breaker. If you
don’t use the heater, please switch o the circuit breaker.
5. Do NOT install this appliance on timber or in the presence of a strong magnetic
eld. The appliance can be installed above or under the sink, and must only be
mounted in a VERTICAL position near by the water ttings.
EWH0005 EWH0006 EWH0007
Hot Outlet Cold Outlet
Temperature
Dial
Heating
Indicator
BELOW SINK
EWH0002 EWH0003 EWH0004
ABOVE SINK
Temperatur
Dial
Heating
Indicator
Power
Indicator
Hot Outlet
Cold Outlet
Excellence in Hot Water Technology.
4
5
ThermaQ Specification Hotline 01924 270847
SPECIFICATION
Product
MIDI 6 MIDI 10 MIDI 15
ABOVE SINK Prod.codE
EWH0002 EWH0003 EWH0004
BElOw SINK Prod. codE
EWH0005 EWH0006 EWH0007
PowEr
2kW 2.5kW 2.5kW
Flow ratE (UPTO)
6L/MIN 8L/MIN 10L/MIN
body MatErial
HIGH STRENGTH ABS CASING
VoltagE
220240V
ratEd currEnt
21.7A
rEcoMMEndEd
cablE sizE
2.5mm
2
oVErhEat ProtEction
60°C
thErMal cut-out
95°C
control ModE
MANUAL CONTROL DIAL
worKing PrEssurE
0.2-6 bar
watEr connEctions
G1/2”
diMEnsions
198 x 160 x 98mm
