Thermasol Signature Series - Tools and Materials for Installation; Surface Mount Installation Guide; Recessed Mount Installation Guide; Control Installation and Data Cable Connection

Install recessed control mud-ring (provided with control) during
rough-in stage of wall preparation. Fabricate and install materials
as precise as possible, following the shape of the mud-ring.
See page 5 for detailed instructions.
3
THERMASOL.COM
I
800.776.0711
Surface Mount Installation Recessed Mount Installation
SEMR-XX and SEMR-NTS-XX
Read warnings on page 2. For illustrative purposes only. Consult with qualified professional for steam room construction details.
Data cable to
generator
Signature Series Control Installation Instructions
3 Control Installation and Data Cable Connection
Shower wall
Materials needed:
o Signature Series control
o CAN-Bus Cable
(included with generator)
o Silicone
o Other materials as required
Tools needed:
o 1/2” drill for surface mount
o Follow pre-installation instruction on
page 5 for recessed mount controls
o Drill motor
o Other tools as required

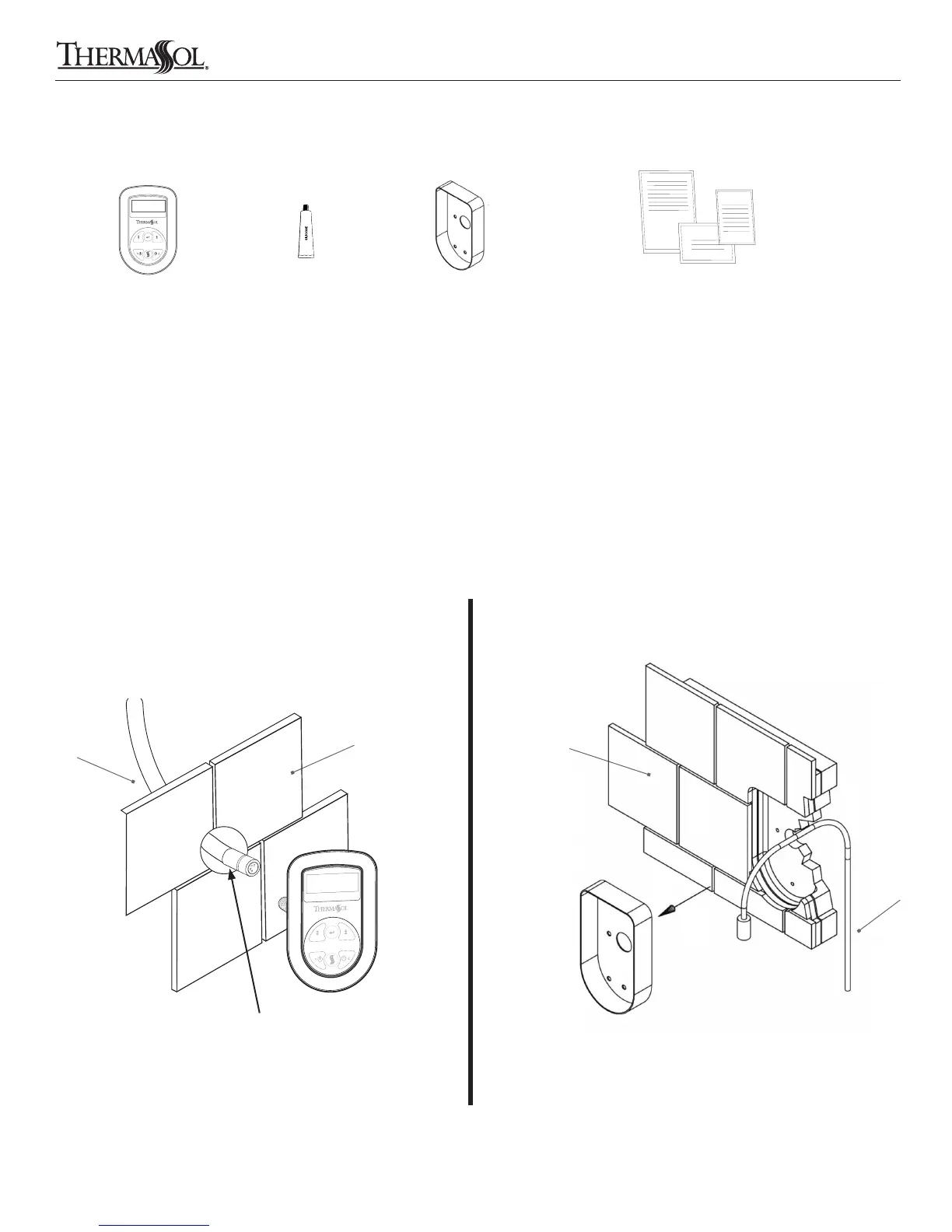

Controller
(Contemporary style shown here)
Installation instructions, warranty,
static cling warning label
Silicone Mud Ring
(RIK-SEMR-1) for SEMR-NTS-XX
installation only
2 Tools and Materials
Parts enclosed
Make a 1/2" diameter hole in the desired location.
The control should be installed 60" from the floor
of the shower and away from the steamhead.
Shower wall
81173_NC 3/16
SEC-XX, SEM-XX, SET-XX, SER-XX,
SEC-NTS-XX, SEM-NTS-XX, SET-NTS-XX, SER-NTS-XX
Data cable to
generator
