Thermedx P2000 - Assembly and Setup Instructions; Component Checklist and Pole Assembly

13 | P a g e
Part Number - 00824 Revision K, DCO 2017-0074
© 2017 Thermedx
®
, LLC
Section 6 – Assembly and Setup Instructions
This device must be assembled and tested by authorized Thermedx
®
personnel, an authorized
distributor of Thermedx
®
, or a qualified person prior to placing the device into service. The
following steps describe how to assemble and perform preliminary setup of the product.
Read through the instructions completely prior to setting up the device.
Components Checklist:
 Wheeled base with storage basket
 Support pole with threaded fasteners
 Main unit with power cord
 Canister ring with hanger pin
 Alignment tool/Allen wrench
 Secondary display (Optional accessory)

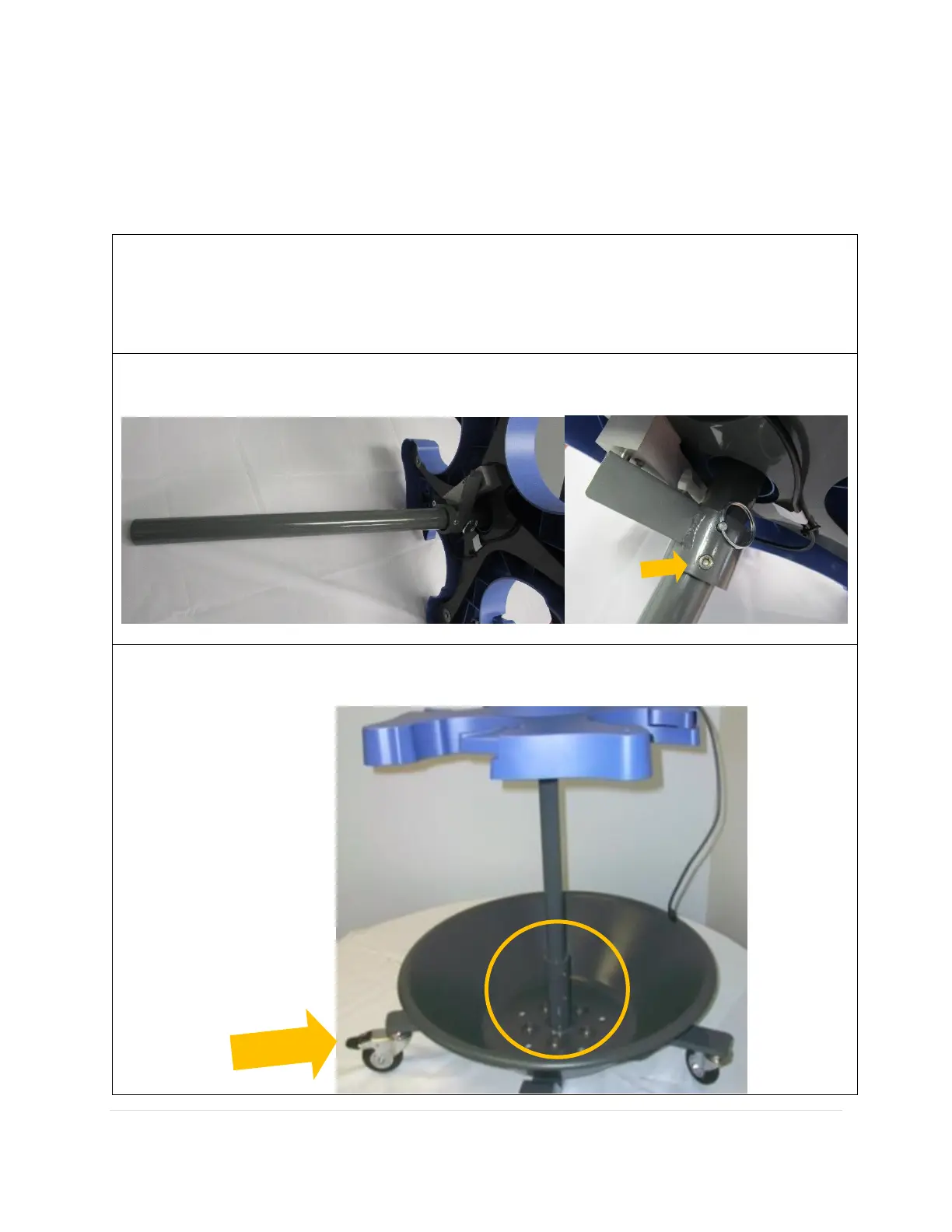

Assemble support pole and canister ring using hanger pin. Tighten (1) locking screw with
alignment tool.
Insert support pole into wheeled base. Position support pole so cord of canister ring is opposite
locking caster on wheeled base. Tighten (2) locking screws with alignment tool.
