The hood is wall-mounted and can be used with the exhaust to extract the air outside or to recirculate the air.

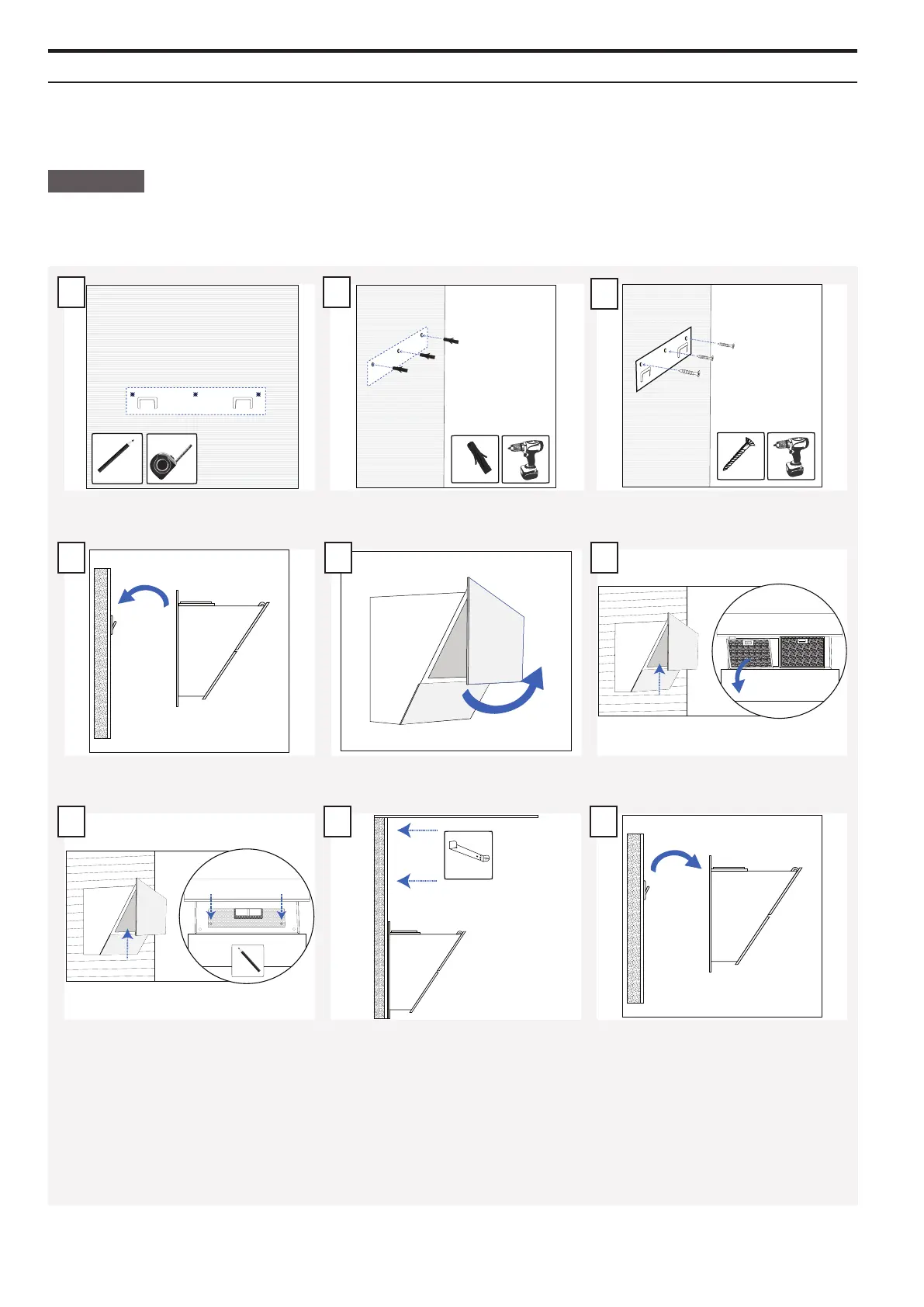

The kitchen hood is installed with the following steps:
Measure out the position for the bracket of the
hood.
2
Drill the holes and install rawlplugs suitable for
the material into which they are installed.
3
1
Mount the bracket with three screws.
Mount the hood on the bracket.
4
The lid of the hood is opened by activating and
holding down the on/o icon until it opens.
Remove the filters from the hood.
6
Mark the wall with the position of the two
locking holes.
7
Measure out the position for the brackets of
the duct.
8
Remove the hood from the wall.
9
x4
x3
x4
5
x2
x2
