Engine Assembly (Rev 1/97)
72

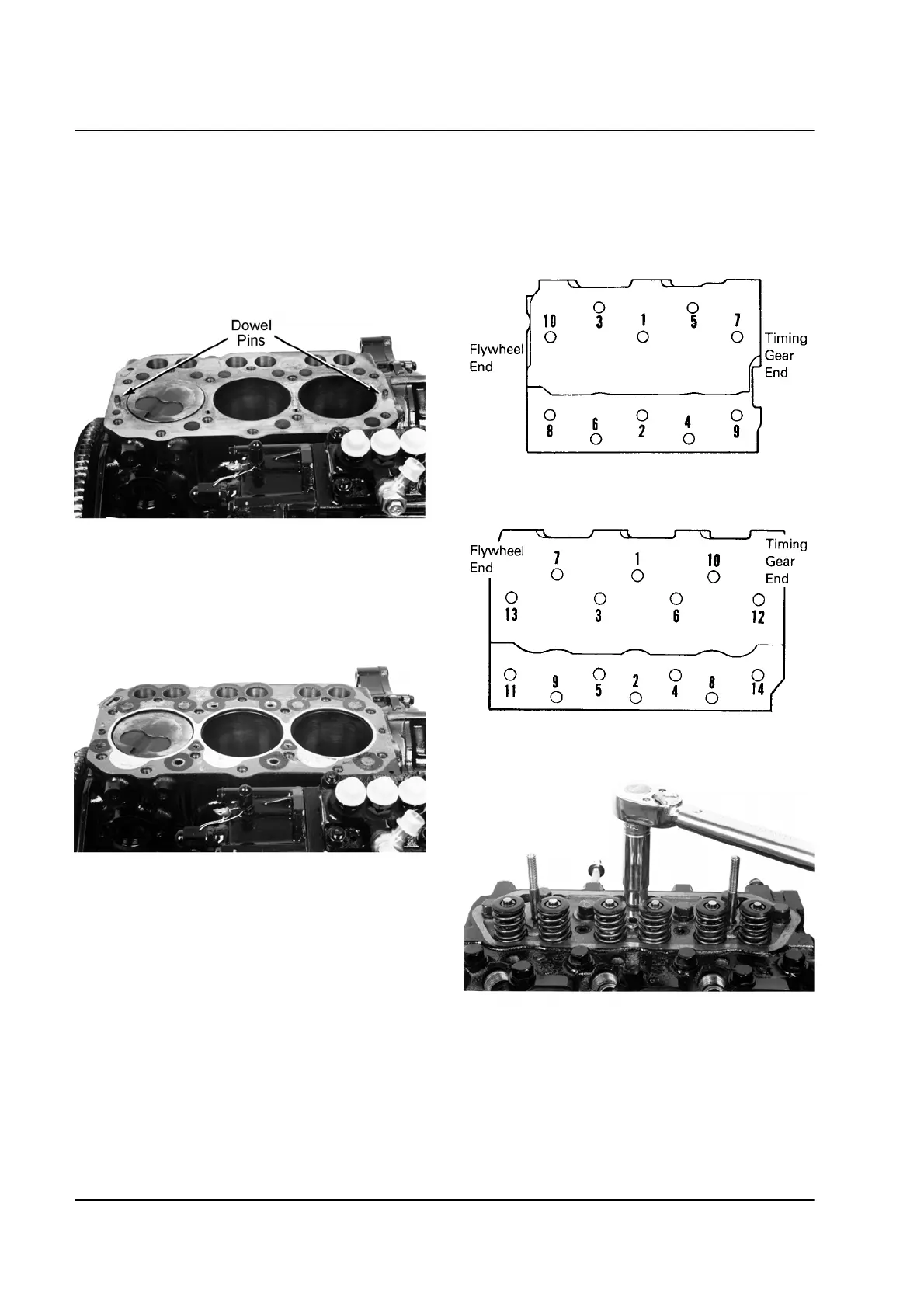

43. Make sure the dowel pins are in place in the top of the
block.
Check Dowel Pins
44. Place a new head gasket on the block. Align the head
gasket with the dowel pins and make sure the engine
model inscription is facing up.
Install Head Gasket
45. Place the cylinder head on top of the block and the head
gasket. Make sure to align the head with the dowel
pins.
46. Install the cylinder head bolts. Torque the cylinder head
bolts in two or three equal increments using the
sequence shown in the illustrations. Refer to Specifica-
tions for the recommended torque.
aea310
aea311
Two Cylinder Head Bolt Torque Sequence
Three Cylinder Head Bolt Torque Sequence
Torque Cylinder Head Bolt Sequence
aea312
aea313
aea314
