CAUTION: Do not push on the fuel control rack too
hard or the governor spring will stretch and the ten-
sioner lever will move away from the fuel limit screw.
This will throw the adjustment off.

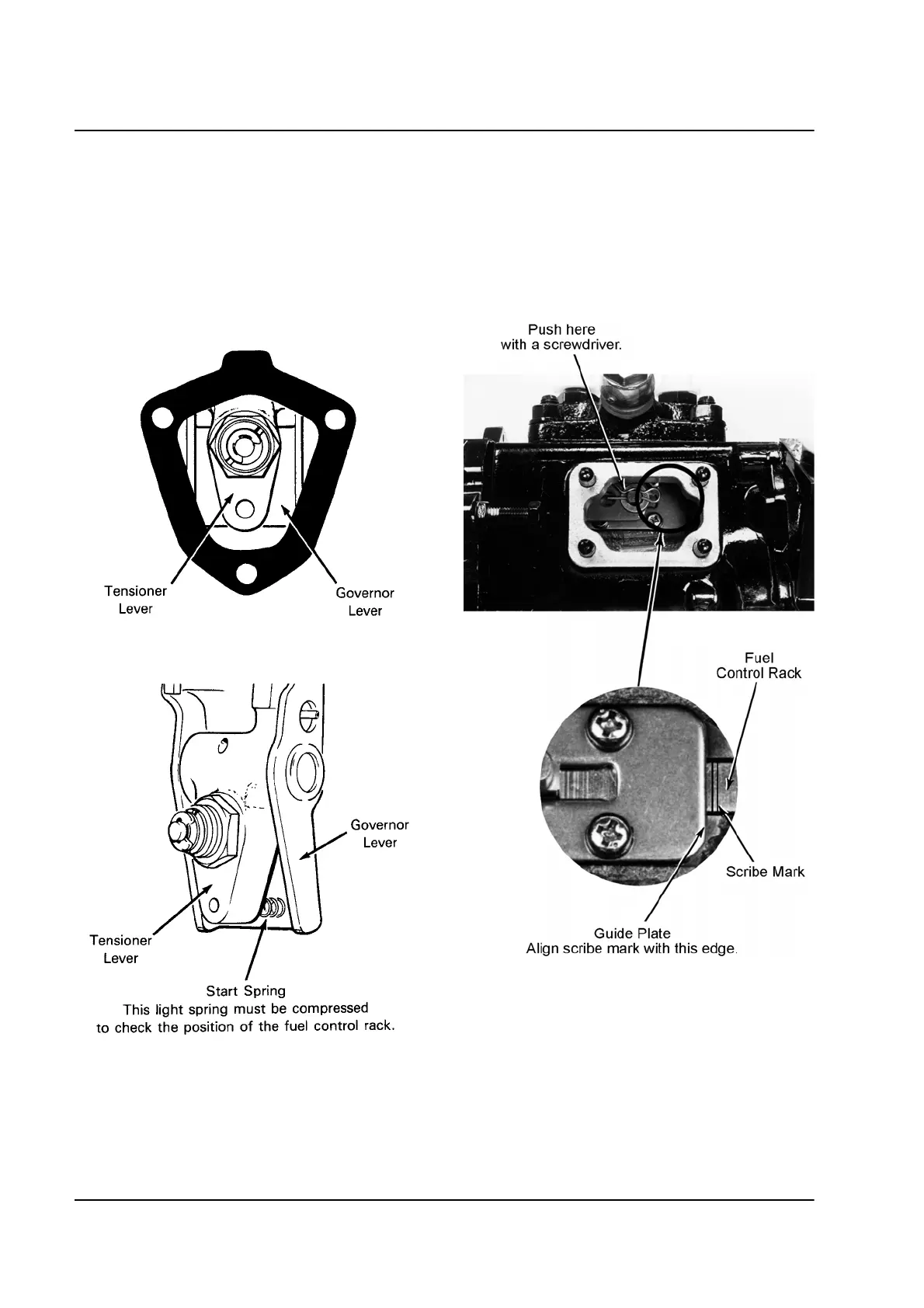

Tensioner Lever and Governor Lever
Tensioner Lever, Start Spring, and Governor Lever
aea341
aea342
9. Turn the fuel limit screw in or out to align the scribe
mark on the fuel control rack with the edge of the guide
plate.
Align Scribe Mark with Guide Plate
10. Fasten the fuel limit screw assembly in this position
with the lock nut.
