on
on
on
on
on
Range Capacity
Mass
Flat
25 L 45 kg
40 L 70 kg
65 L 100 kg
80 L 120 kg
100 L 140 kg
Square
75 L 105 kg
100 L 135 kg
150 L 200 kg
5
on
Bracket
Wall
Water heater
Bracket
Wall
Water heater
Indicative weight of the
lled water heater
Diagram A
400 mm
CEILING
20 mm
min.
FLOOR
Diagram B
on
Diagram C
Contact
area
on
Diagram D
Contact
area
on

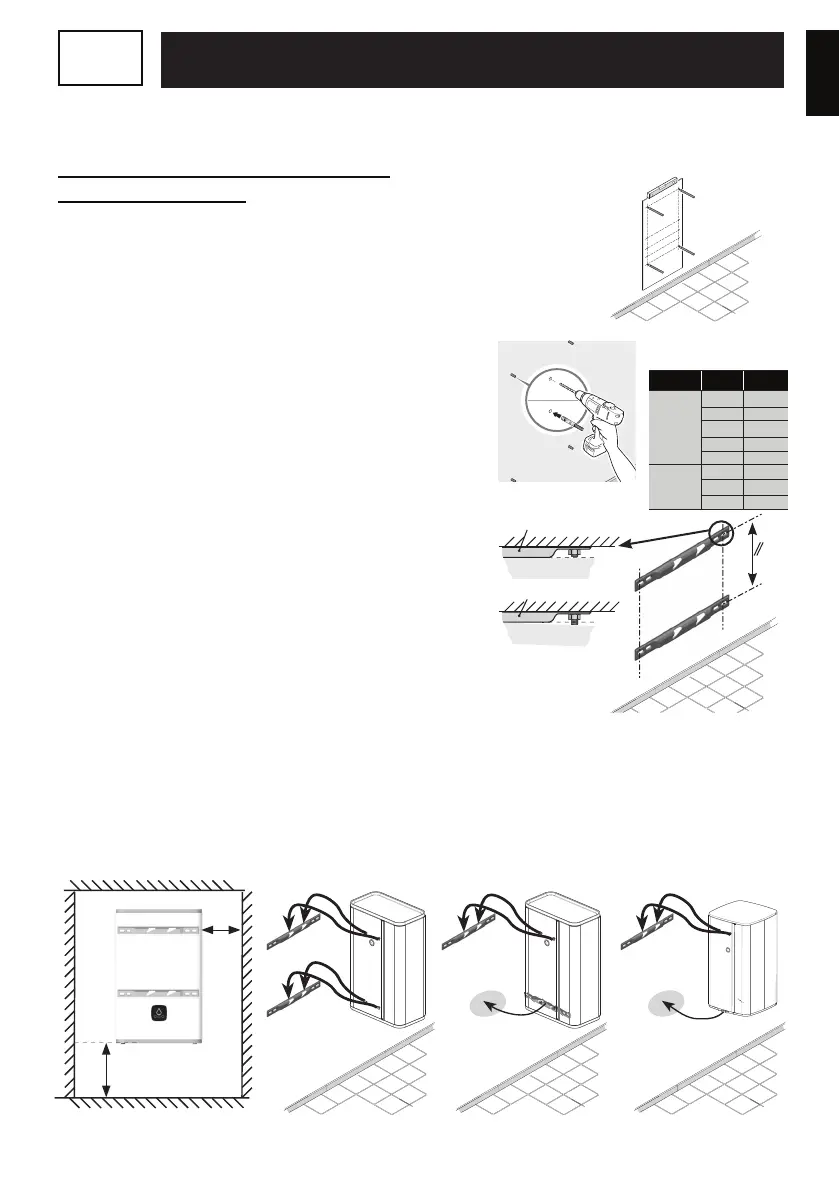

2. How to install your water heater
2.1 Vertical wall-mounted water heater:
Flat and Square units
Position the drilling template (printed on the packaging)
on the wall surface and mark the points corresponding to
the water heater model, ensuring the minimum clearance
spaces to be left around the water heater are respected
(see diagram A).
Drill and plug the water heater, using attachments which
are 10 mm in diameter (Ø) suitable for your wall type
(drywall, concrete, brick).
Important: your wall must be able to bear the weight of the
water heater when lled.
Securely attach the brackets (for 25/40/65/80/100L at
and 150 L capacities) or the single bracket (for 75/100 L
capacities), and use a rule to check the distances between
the brackets. The elements used for mounting must not
protrude beyond the contact surface with the water heater.
PLEASE NOTE: For models 25/40/65/80/100 L, if the
wall is suciently sturdy, it is possible to use a single
bracket for mounting. To ensure it is secure, position
the lower bracket in the corresponding mountings
on the water heater, with the openings facing down.
The lower bracket acts as a stop, resting on the wall
without screws (Diagram C or D). For the 150L, it is
mandatory to x the 2 brackets on the wall.
Lift and t your water heater against the bracket(s), taking care to position the mountings on top of
the brackets.
Lower the water heater until the mountings engage in the notches.
Once the mountings are engaged, it will no longer be possible to slide the water heater from side to side
without exerting signi cant force.
The hot water outlet must be positioned to the left of the water heater.
NO
YES
WALL
Installation manual: General installation diagram
EN
WALL
