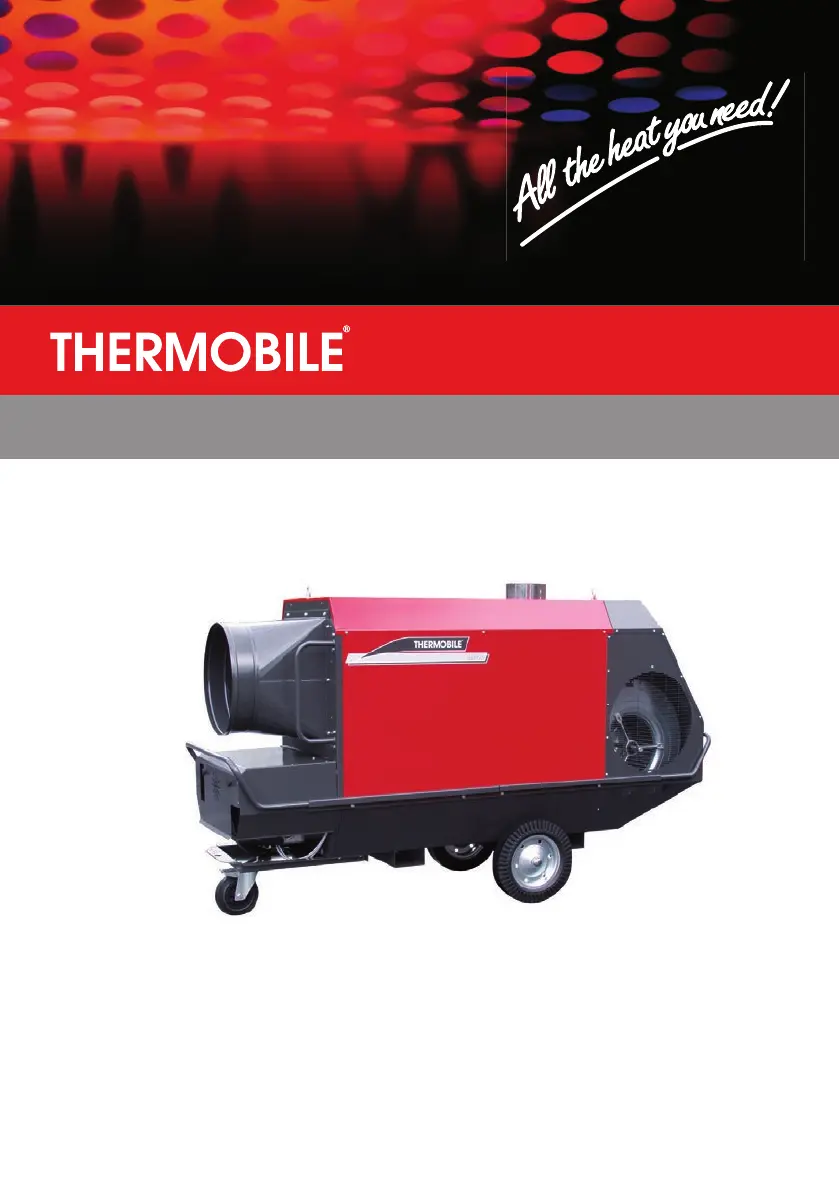

THERMOBILE IMA 111 - User Manual

84 pages

Save Page as PDF

To Next Page

To Next Page

Loading...

GEBRUIKERSHANDLEIDING  USER MANUAL  BEDIENUNGSANLEITUNG 

MANUAL DE L’UTILISATEUR  MANUAL DEL USUARIO  ИHCTPYKЦИЯ ПОЛЬЗОВАТЕЛЯ

IMA

Questions and Answers

R
Ronald HernandezJul 25, 2025
Why my THERMOBILE IMA 111 does not start?
- J
  Jessica MillerJul 26, 2025
  If your THERMOBILE Heater doesn't start, there are several possible causes: * **No electric power:** Check the power connection. * **Burner relay failure:** Push the reset button on the burner relay (the light burns). * **Faulty burner relay:** Replace the burner relay. * **Incorrect room thermostat setting:** Correct the adjustment. * **Defective room thermostat:** Replace the thermostat. * **Missing thermostat cap:** Fit the cap if a room thermostat is not used. * **Blocked fuel pump:** Replace the fuel pump. * **Thermostat stopped the heater (maximum thermostat):** Check and correct the airflow, then reset the thermostat. * **Defective thermostat sensor:** The display shows the 'Sbr' error code. Replace the sensor.
L
Laura LewisNov 8, 2025
What to do if my THERMOBILE IMA 111 Heater burner starts, but no flame is built?
- K
  Karen GarciaNov 8, 2025
  If the burner starts but no flame is built in your THERMOBILE Heater, consider these potential causes: * **Defective pump coupling:** Replace the pump coupling. * **Incorrect pump pressure or blocked pump filter:** Clean the pump filter and adjust the pump pressure with a manometer. * **Blocked main fuel filter:** Clean or replace the fuel filter. * **Closed valve in the fuel filter:** Open the valve. * **Empty fuel tank:** Fill the tank. * **High fuel pump vacuum:** Clean or replace the main fuel filter. * **Blocked or worn nozzle:** Replace the nozzle. * **Worn electrodes or incorrect adjustment:** Clean or replace the electrodes. * **Magnetic valve not opening:** Check the electrical connection, you should hear a 'click' when it's activated. * **Dirty or defective p...

Summary

Safety Instructions

Pictograms in this manual

Explains warning and caution symbols used in the manual.

General instructions

Essential precautions for safe operation and maintenance.

Getting Started

Installation

Steps for setting up the heater, including fuel and connections.

Power up

Starting the heater for heating or ventilation.

Operation

During Operation

Important safety and operational notes while the heater is running.

Power Down

Maintenance

Component Adjustments

Air Flow and Belts

Troubleshooting

Troubleshooting Table

Detailed table listing faults, causes, solutions, and actions.

Installation of Accessories

Temperature Controller PD1408 Explanation

Controller Status Indicators

Burner and Fan Operation States

THERMOBILE IMA 111 Specifications

General

Weight	150 kg
Frequency	50Hz
Thermostat	Yes
Fuel	Diesel
Power supply	230V / 50Hz
Safety Features	Overheat protection
