1x 117.233 Connection front BW3-RF
1x 117.235 Connection rear BW3-RF
6x 106.256 Hexagon head cap screw M5x10
ripped
Use a socket wrench to x it with
two (2) screws (part 3 of the set).
Hold it and insert the four (4)
remaining screws one by one.

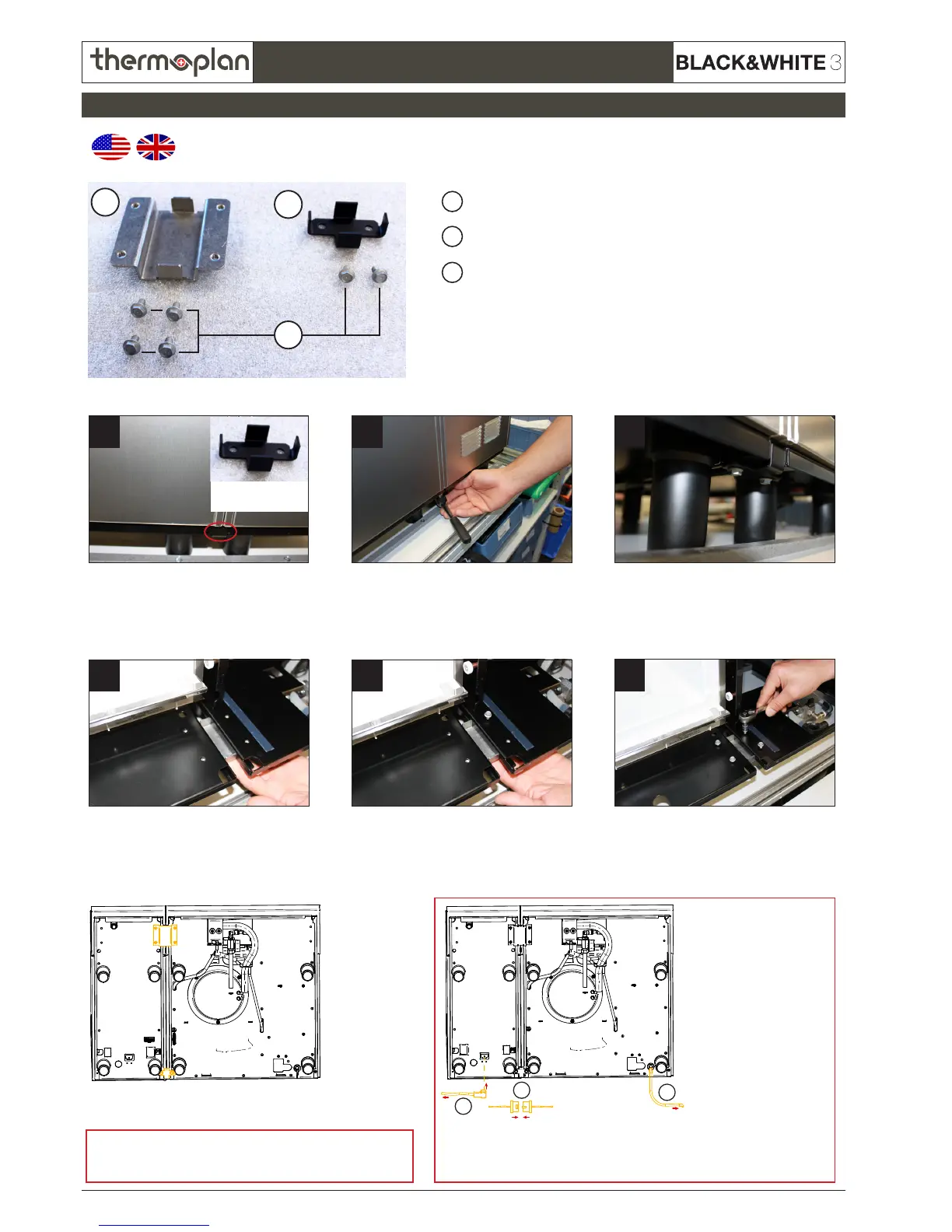

This drawing shows how the correctly installed
connection looks like when looking from below.
This drawing shows how the cables are plugged correctly
to connect machine and refrigerator.
The part correctly mounted is ush
between the refrigerator and the
machine.
Install part 2 (see set above) at the
back of the machine.
Install part 1 of the set under the
drip trays between refrigerator and
machine.
When all screws are inserted x
them with a socket wrench.
To be mounted in
this direction
1
4
2
5
3
6
Connection parts set
1. Power cord
coffee machine
2. Power cord
refrigerator
3. Connection
cable
