Installation manual: Installation
2.6. Hydraulic connection:
The Aéromax Piscine must be connected with pipes and a PVC pressure connector with Ø 50 mm.
2.7. Electrical connection:
Ensure that the electrical installation is designed to be able to connect the whole
of the installation and is compliant with the standards (NFC 15-100).
Power (kW) Rated current (A) D curve
circuit breaker (A)
Cable diameter*
(mm
2
)
8 8.8 16 3G 2.5
2
10 11.5 16 3G 2.5
2
12 12.9 16 3G 2.5
2
14 15.6 20 3G 4
2
* Data provided for information purposes for a heat pump power cable less than 20 m long. In case
of a longer cable, please refer to the standard.

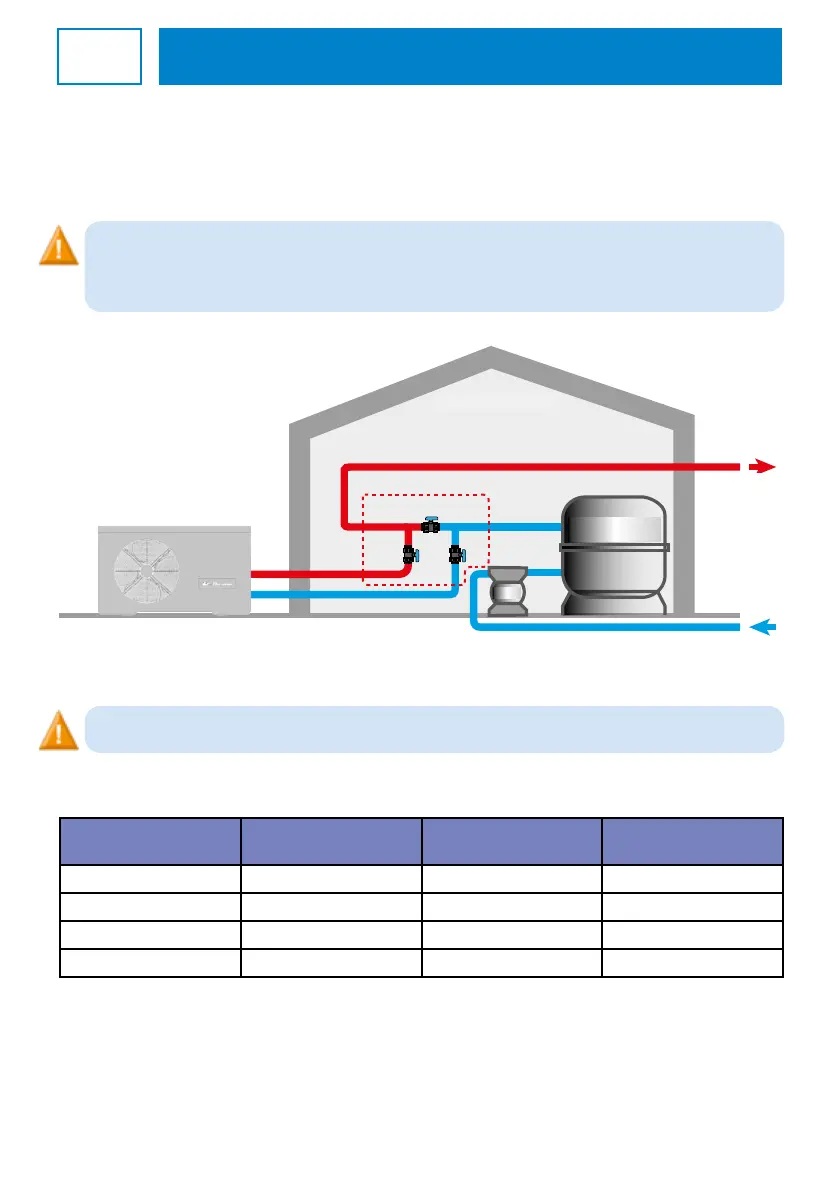

Please adhere to the order of the various equipment:
• Circulation pump / Filter
• Aéromax Piscine
• Water treatment
All electrical installation or connection work must be carried out with the power off.
Groupe de
ltrage
Local technique
Vers la
piscine
Depuis la piscine
V2V3
V1
Pompe
Bypass
Equipment shed
To pool
Filter unit
Pump
From pool
