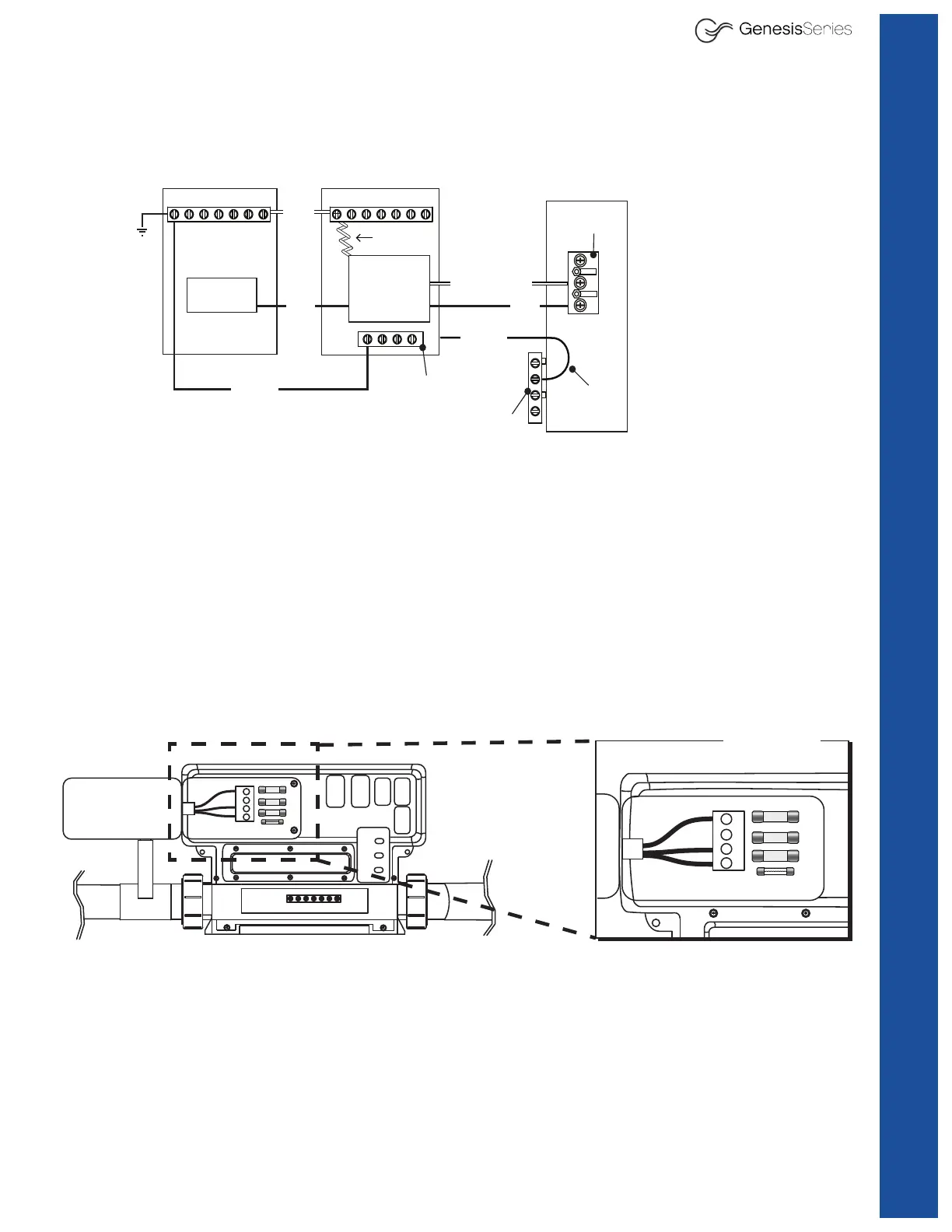

120 VAC Alternate Hard Wired Electrical Connections for Gemini Genesis 100 Models
If the supplied 10 ft GFCI power cord cannot reach a dedicated grounded wall outlet, it is neces-
sary to install a 3-wire hard-wired connection. The diagram below illustrates that conguration.
NOTES:
1. NEUTRAL AND GROUND MUST BE ISOLATED AT THE SUB PANEL.
2. On Balboa TS Series Packs, ground wire must enter the pack through strain relief and attach
to ground bar on outside of pack.
3. Positions of electrical connections may vary by breaker manufacturer.
4. For specic breaker and wire size refer to page 45.
RED
BLK
WHT
TB1
Sub Panel at Spa
Main Panel
Neutral/Ground Bar
See NOTE 3
See NOTE 2
GFCI
Breaker
Spa Pac
Terminal block
inside of Pac
Breaker
Neutral Bar
Ground
Green
Ground
Green
White Pigtail
Wire
Isolated
Ground Bar
Ground Bar
on outside
of Pac
Black
Black
Neutral
(White)
* Load Neutral (white) must
connect to the GFCI break-
er at the Sub Panel NOT the
neutral bar
Load Neutral (White)
*
120V Spa Pack Connections
Black
White
Green
L1
L2
Gr
N
External Power
INSIDE THE
CONTROL BOX
Electrical Set Up
