33
Components

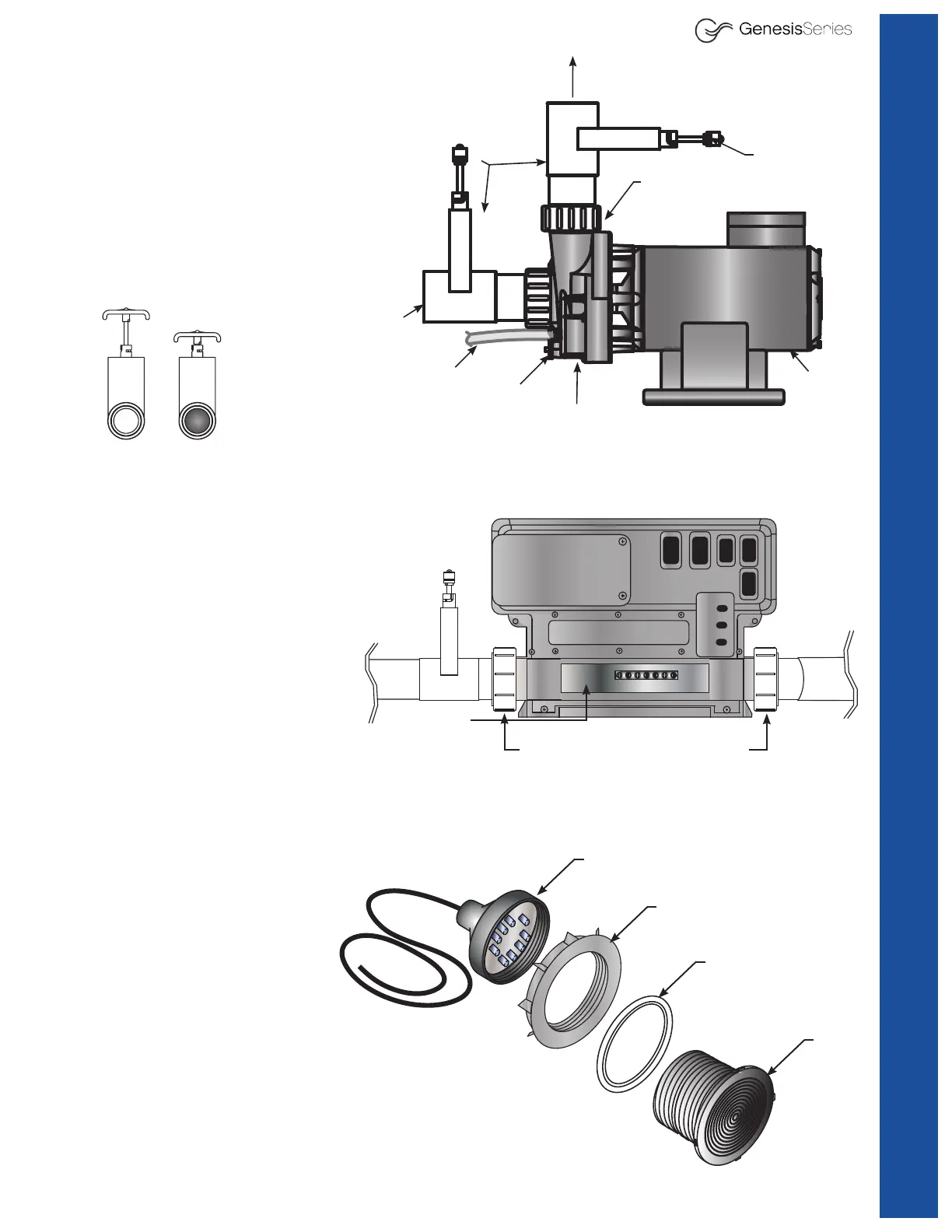

Water Pump
Note: On some water pumps,
pipes heading to water jets
may be located on the top
of the pump. However, the
configuration of the hose, “T”
valve, remains the same.
Spa Light Assembly
The LED light is attached to the
light lens by screwing on to it.
The light housing is accessible
from underneath the skirt panel
for ease of replacement.
Note: Light can vary from one
shown.
Valve Lock
TO WATER JETS
Pump
Union
Pump
Motor
Water Pump
Volute
Self Priming Hose
From Suction
“T” Valve
Drain Plug
Open Valve Closed Valve
Heater Unions (hand tighten
only by turning clockwise)
Heater
Spa Pack and Heater
(Electronic Center of Spa)
The Spa pack is normally
behind the cabinet located
underneath the topside control
panel.
Led Light
Nut
Gasket
Lens
Components
To Next Page
