Installing your thermostat

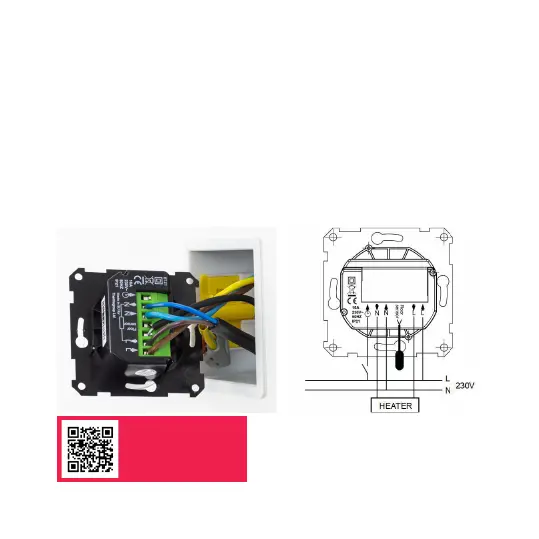

Wiring diagram
Connect the underoor heating cold tail, power supply and oor
temperature sensor. Don‘t leave any copper exposed.
The oor temperature sensor is not polarity sensitive.
Scan to watch
the wiring video
