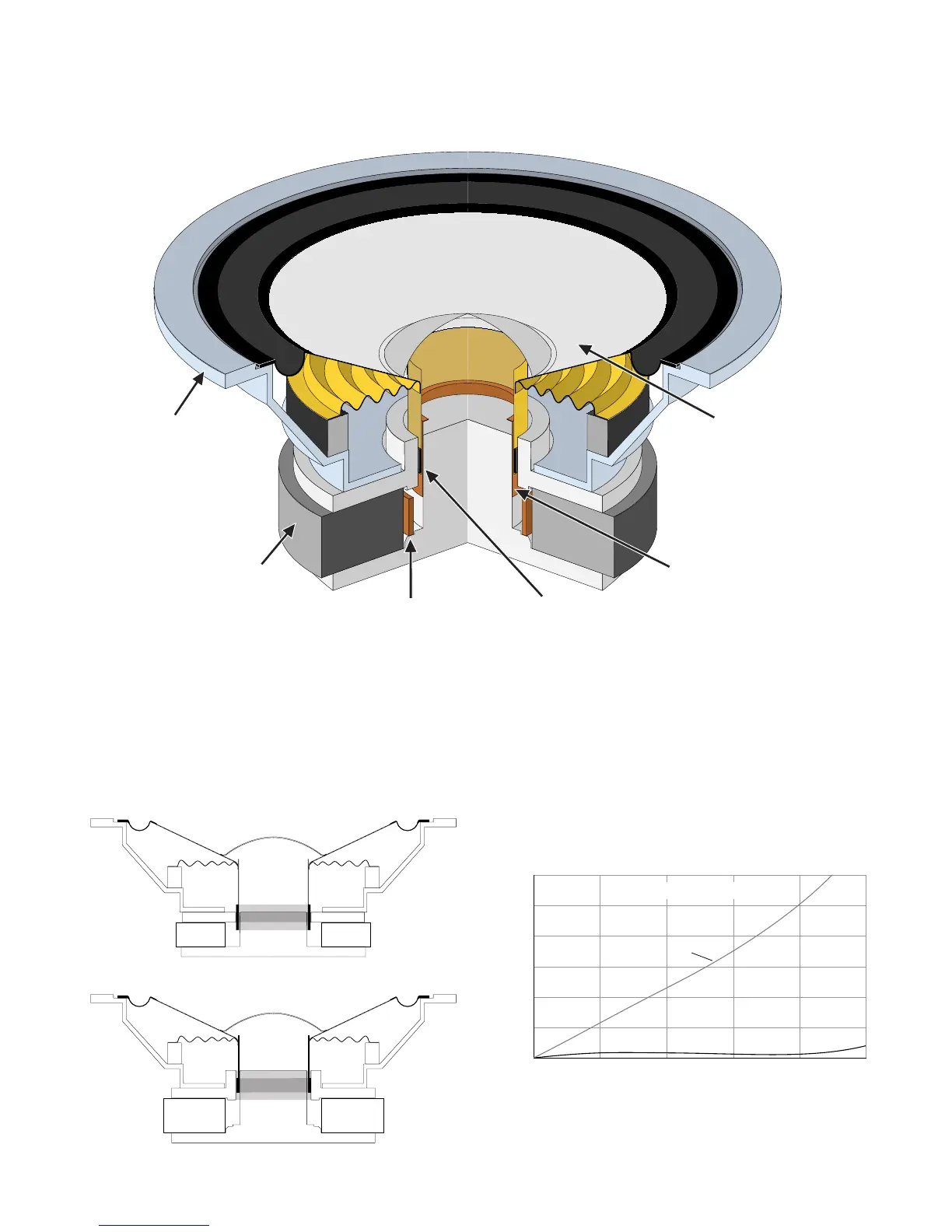

THIEL CS2.3 WOOFER
Short coil
Long gap
Short gap
Long coil
Conventional overhung coil
THIEL underhung coil
Total Harmonic Distortion – %
2
4
6
8
10
12
0
1
2345
peak excursion – ±mm
Conventional motor
THIEL CS2.3 woofer distortion
Rigid aluminum
chassis improves
clarity
Very large magnet
to properly damp
high output motor
Aluminum diaphragm
eliminates resonance
coloration
Short voice coil
and long magnetic
gap dramatically
reduce distortion
Heavy copper ring
stabilizes magnetic
strength to improve low
frequency dynamics
Copper pole sleeve
reduces inductance
distortion
