Working Principle
Knowing how the product works can help you troubleshoot better. The electric HVLP sprayer uses a motor
and a fan blade to generate a powerful airflow. Part of the airflow enters the tank through the air channel and
drives the paint to flow upward to the nozzle; part of the airflow directly leads to the four atomizing air holes on
the outside of the nozzle to atomize the paint at the nozzle to achieve the effect of dispersing the paint.

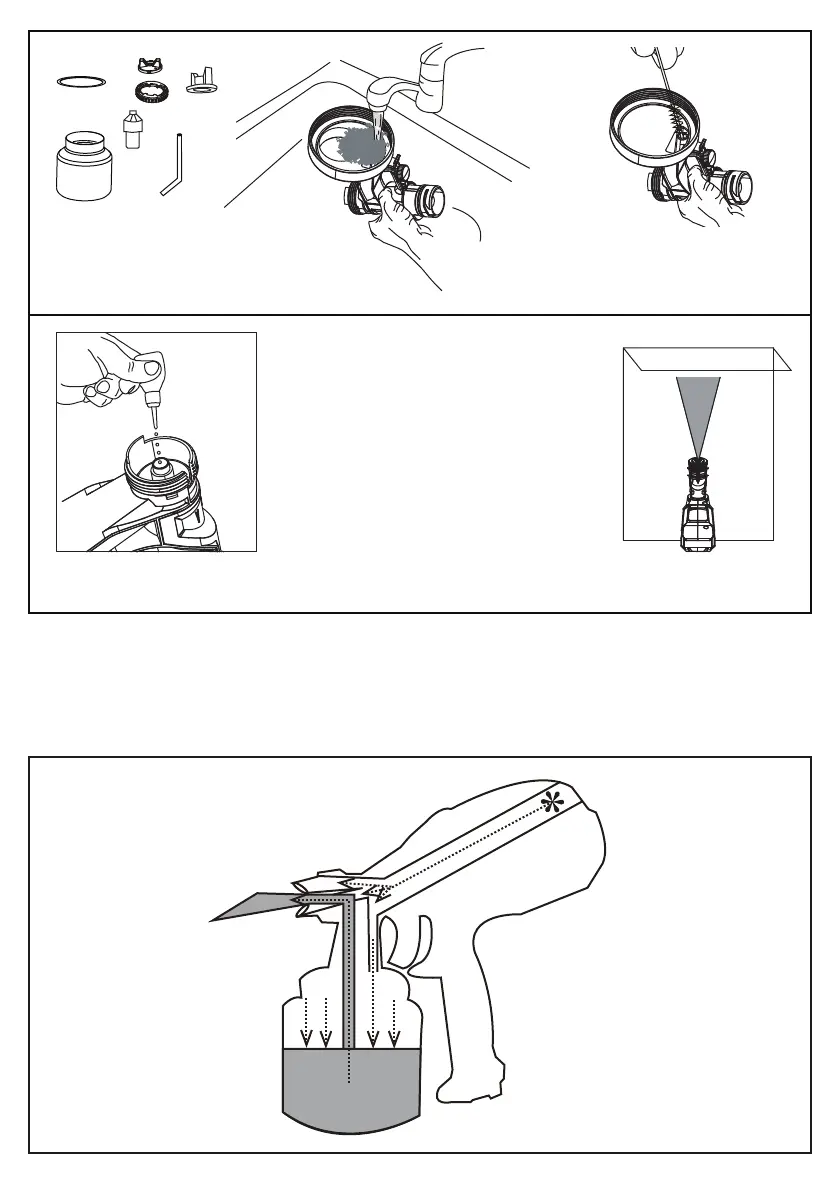

(Fig 12-1)
(Fig 12-2) (Fig 12-3)
(Fig 13)
