WiPro III + safe.lock Installation Manual – Fiat Ducato X250, Euro 4
6

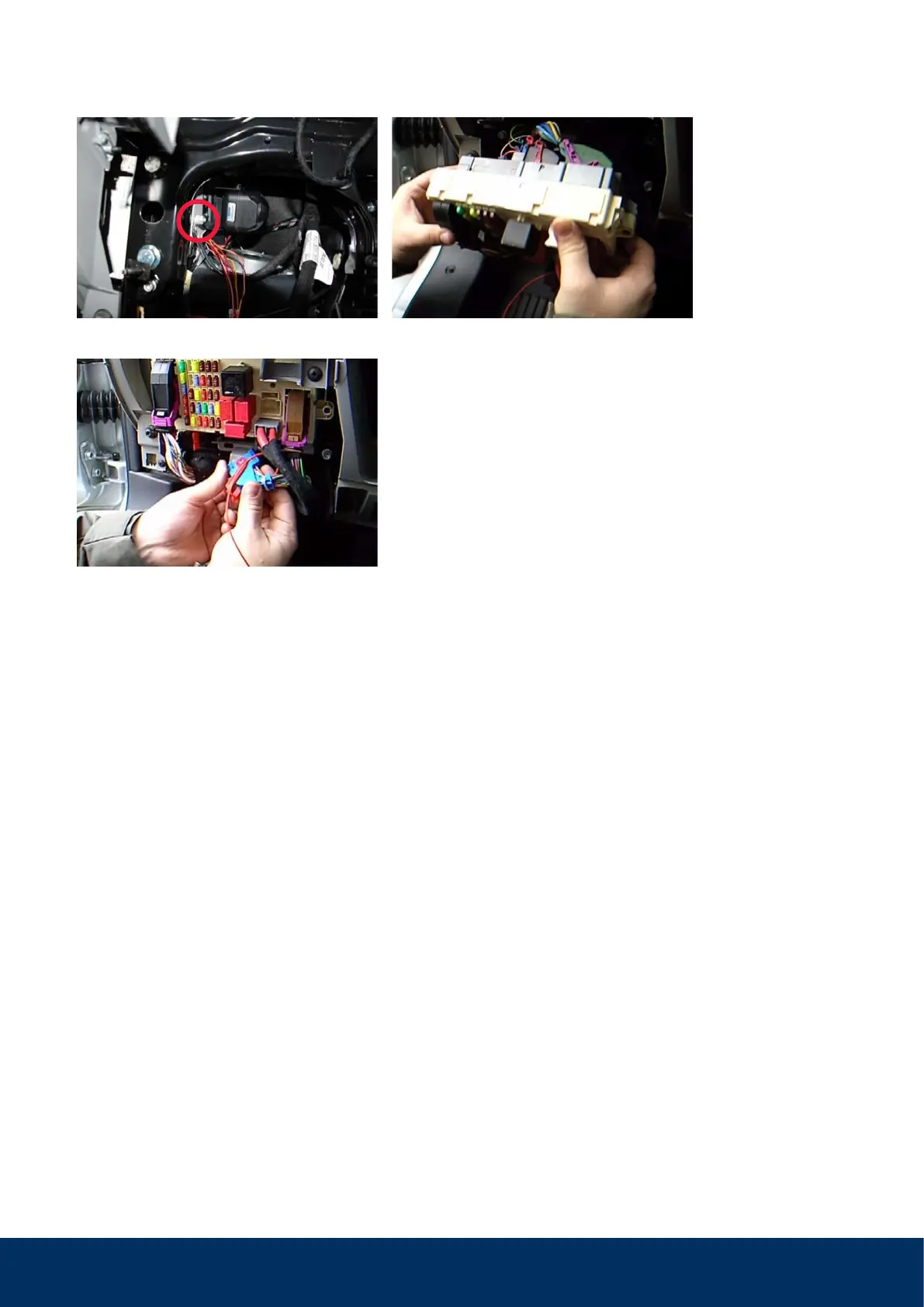

Step 8: Fix mounting plate
Fix the mounting plate to the earthing point on the left behind the on-board computer.
Screw the screw in tightly.
Insert the power supply wire into pin 46, insert
the plug inserts again and install the connector
again.
The connector is secured when the red lever
snaps into vertical position.
Install the on-board computer again.
