20
19
21
22
23
24
25
26
27
28
29
18
18 [HEADPHONE]
Headphone output, designed as a 3.5 mm or 6.35 mm jack socket (stereo)
19 [TRIGGER INPUT] - [CONNECTOR]
Socket for the D-Sub multi-trigger plug (25-pin)
20 [TRIGGER INPUT] - [CRASH2]
Connection for Crash2 cymbal pad
21 [TRIGGER INPUT] - [EXT]
Connection for external trigger, display as ‘EXT’ , the trigger type is set in the ‘SETUP’ - ‘ADVANCE’ menu
22 [MIDI]
Connection for USB-MIDI B, for rmware updates, for playing, for recording via MIDI and for using plugins for more
sounds on the computer
23 [MEMORY]
Connection for USB storage medium, for loading user samples or for updating the sound bank. The content of the USB
storage medium is checked when the drum module is switched on. Remove the USB storage medium before switching
on to avoid updating the sound bank.
24 [LINE IN]
Input socket (3.5 mm) for connecting audio devices. An additional plug-plug cable is required to connect audio sources
like tablets, smartphones or computers.
25 [LINE OUT] / [L/MONO] / [R]
Output socket to connect an amplier or active monitor (mono left, stereo left/right)
26 [DIRECT OUT] / [1][8]
Each balanced output has its own drum sound. The following sounds are assigned by default:
[1] [2] [3] [4] [5] [6] [7] [8]
Kick Snare Ride Hi-hat Tom L Tom R Crash L Crash R

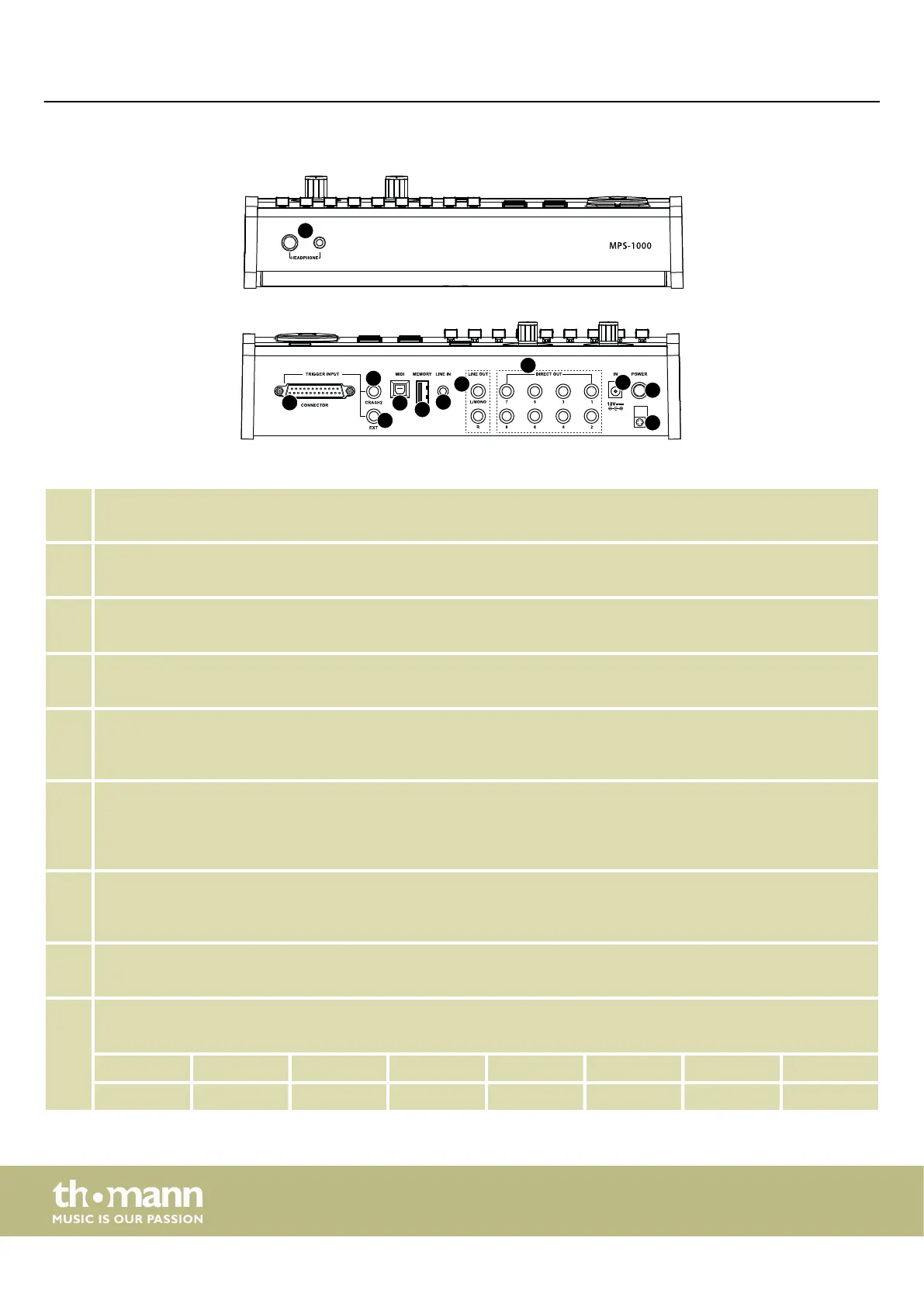

Front and rear panel
Connections and controls
e-drum module
12
