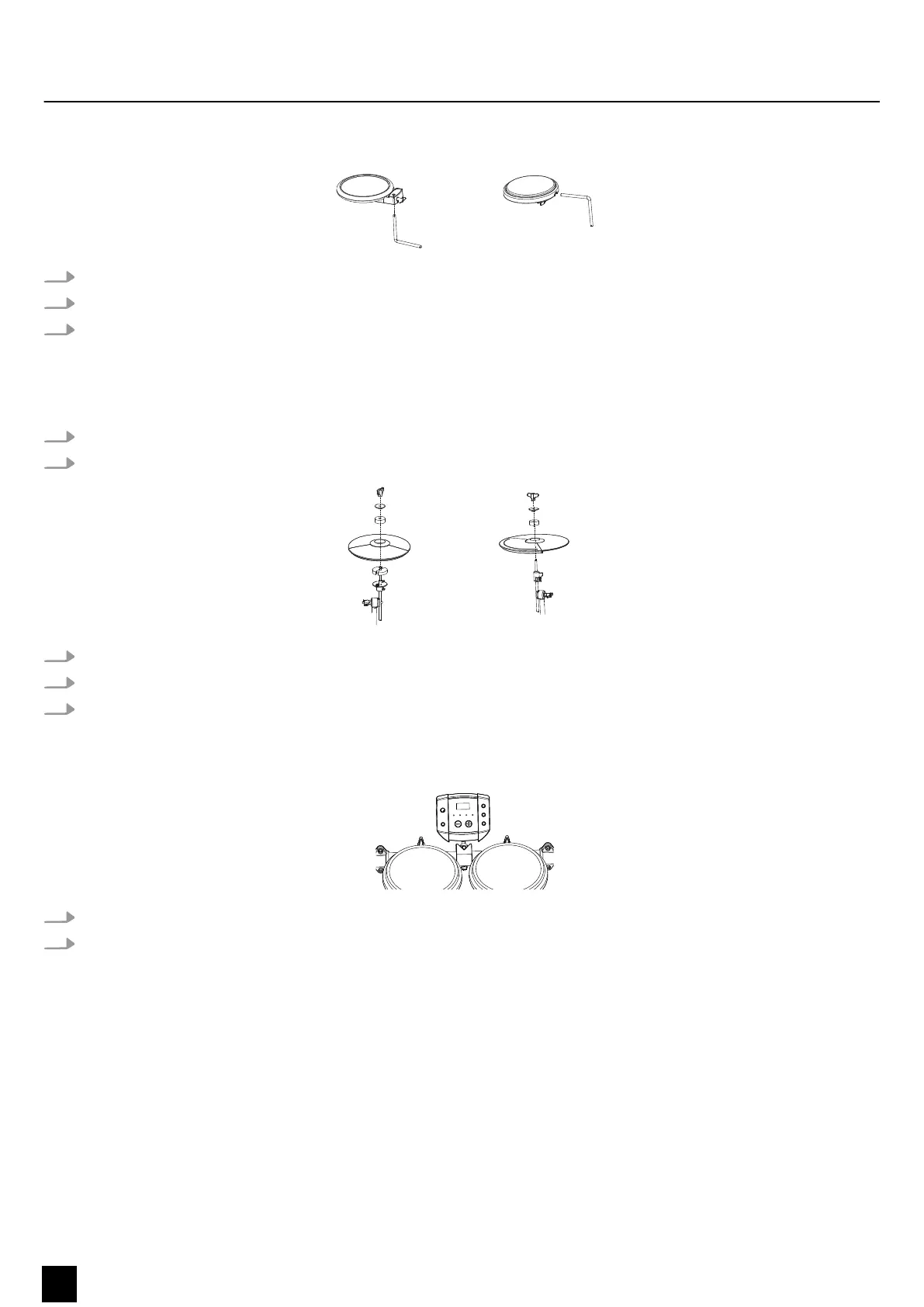

Mounting pads on the rack
1. Attach the supplied L-pieces to the pads. Tighten the wing nuts on the pads by hand rst.
2. Then slide the plastic ends of the L-pieces up to the stop into the designated clamps on the rack.
3. Align the pads on the rack to meet your needs, then tighten the wing nuts of the pad brackets and the bolts of the pad
clamps on the rack evenly.
Mounting cymbals on the rack
1. Put the three cymbal holders as shown into the designated clamps on the rack.
2. Tighten the bolts on the clamps rmly and evenly.
3. Unscrew the wing nuts from the cymbal holders and take the felt washers o the holders.
4. Place the cymbals as shown in the gure on the holders.
5. Place the felt washers on the cymbals and x the cymbals with the associated wing nuts on the holders.
Mounting the e-drum module on the rack
1. Push the e-drum module into the free clamp of the connecting pipe as far as it will go.
2. Align the e-drum module and tighten the wing nut of the clamp.
Assembly
10
MPS-150
E-Drum Set
