Hi-hat controller Millenium MINE V2.0 (Option)
The Millenium MPS-400 E-Drum Hi-Hat MINE set comes with a hi-hat machine and a hi-hat controller MINE V2.0.

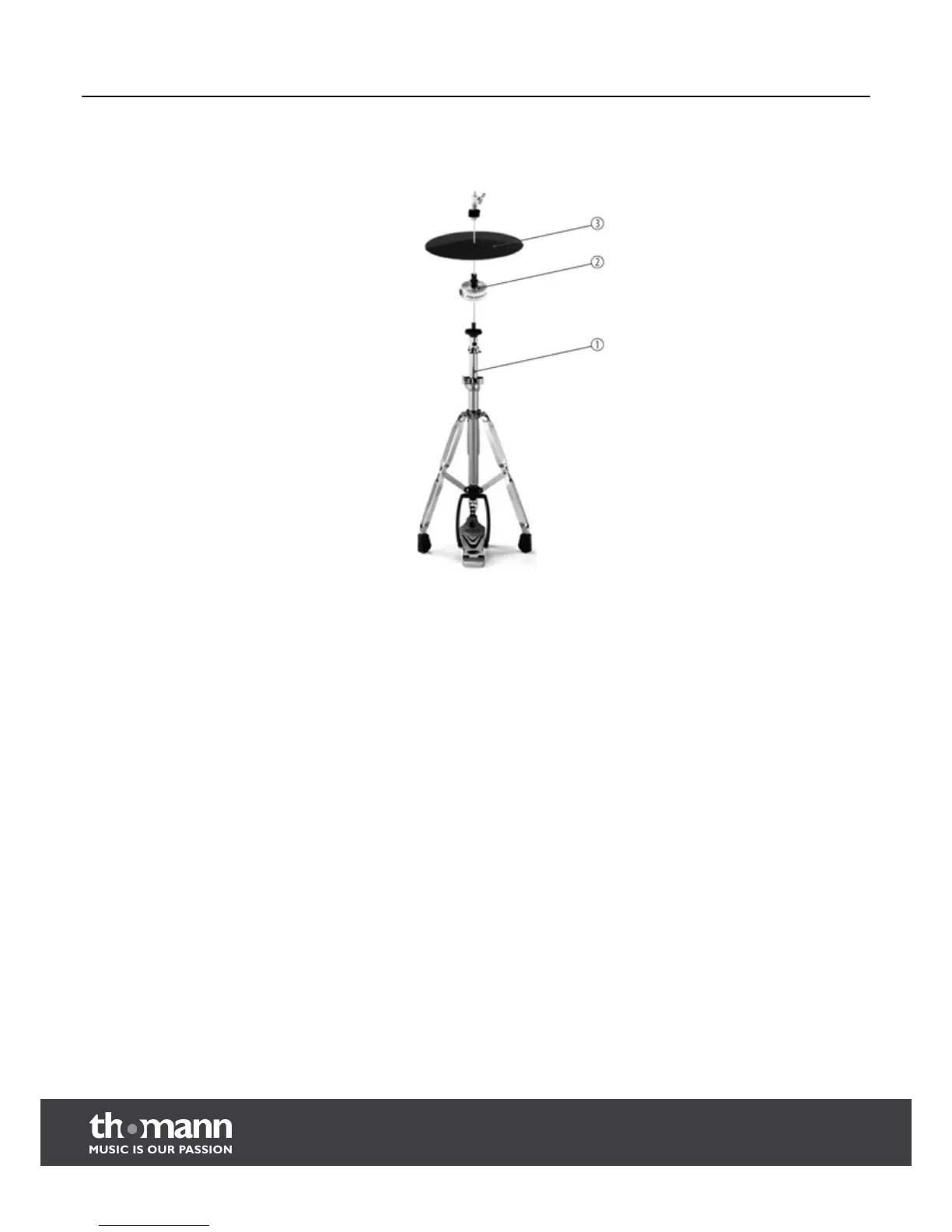

Install the MINE V2.0 (2) — instead of the bottom cymbal — and the top cymbal (3) as shown between the felts on the included
hi-hat machine (1).
Setting up and wiring
Set up the rack, the pads and the cymbals according to your needs. As a final step, all triggers need to be wired to the drum
module. Note the labelling on the drum module and the colour markings of each cable.
Assembly
