9 [MUTE]
Buttons for muting or unmuting the respective output channel
10 [MUTE]
Buttons for muting or unmuting the respective input channel
11 IEC chassis plug with fuse holder for the power supply
12 [POWER]
Main switch. Turns the device on and o
13 [ETHERNET]
RJ45 socket as LAN connection for connection to your network
14 [RS232/485PORT]
D-sub connector for remote control of the device or cascading of several devices
15 [OUTPUTS]
XLR chassis plugs for the output channels. The number of channels depends on the device version.
16 [INPUTS]
XLR chassis sockets for the input channels. The number of channels depends on the device version.

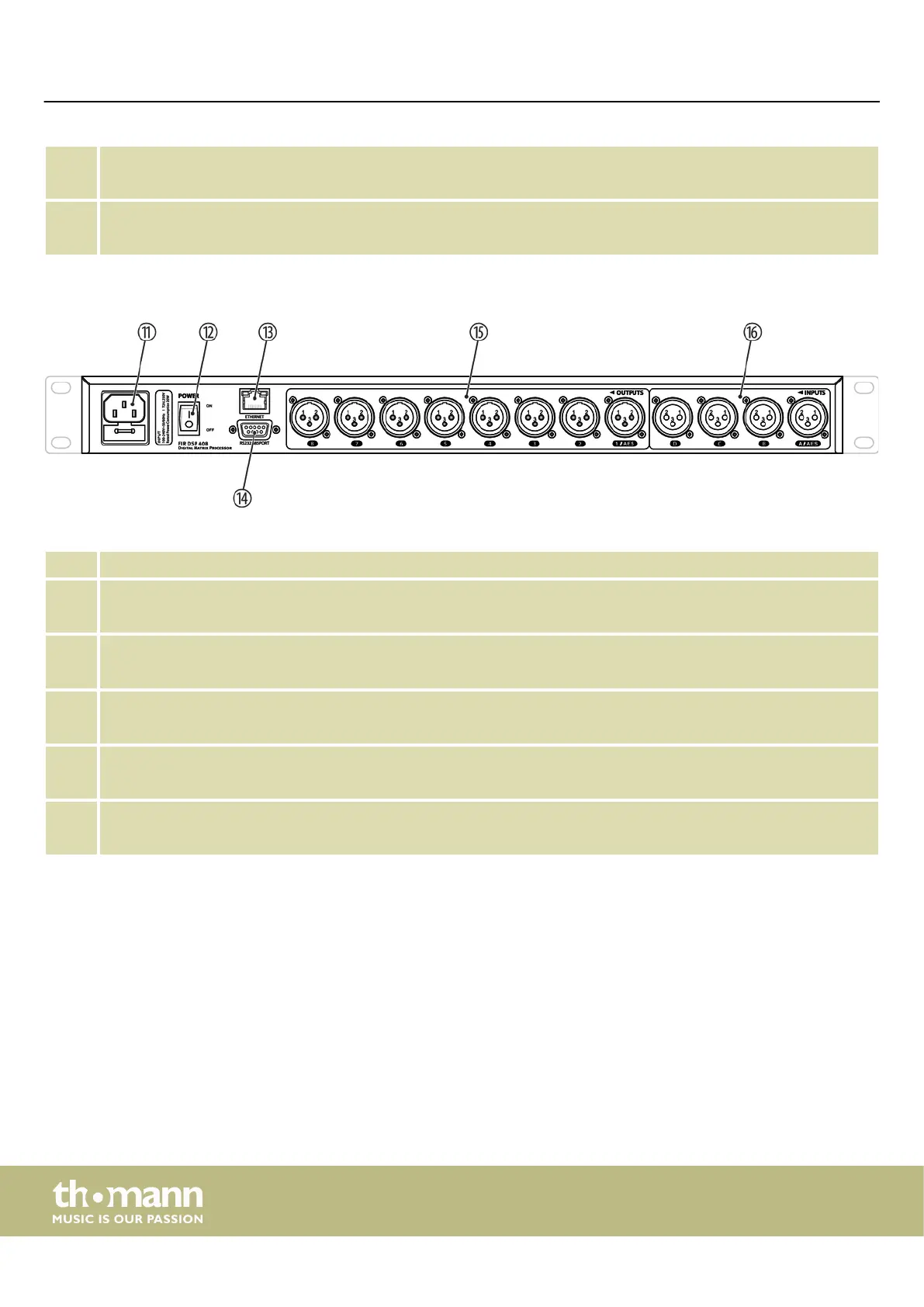

Rear panel
Connections and controls
