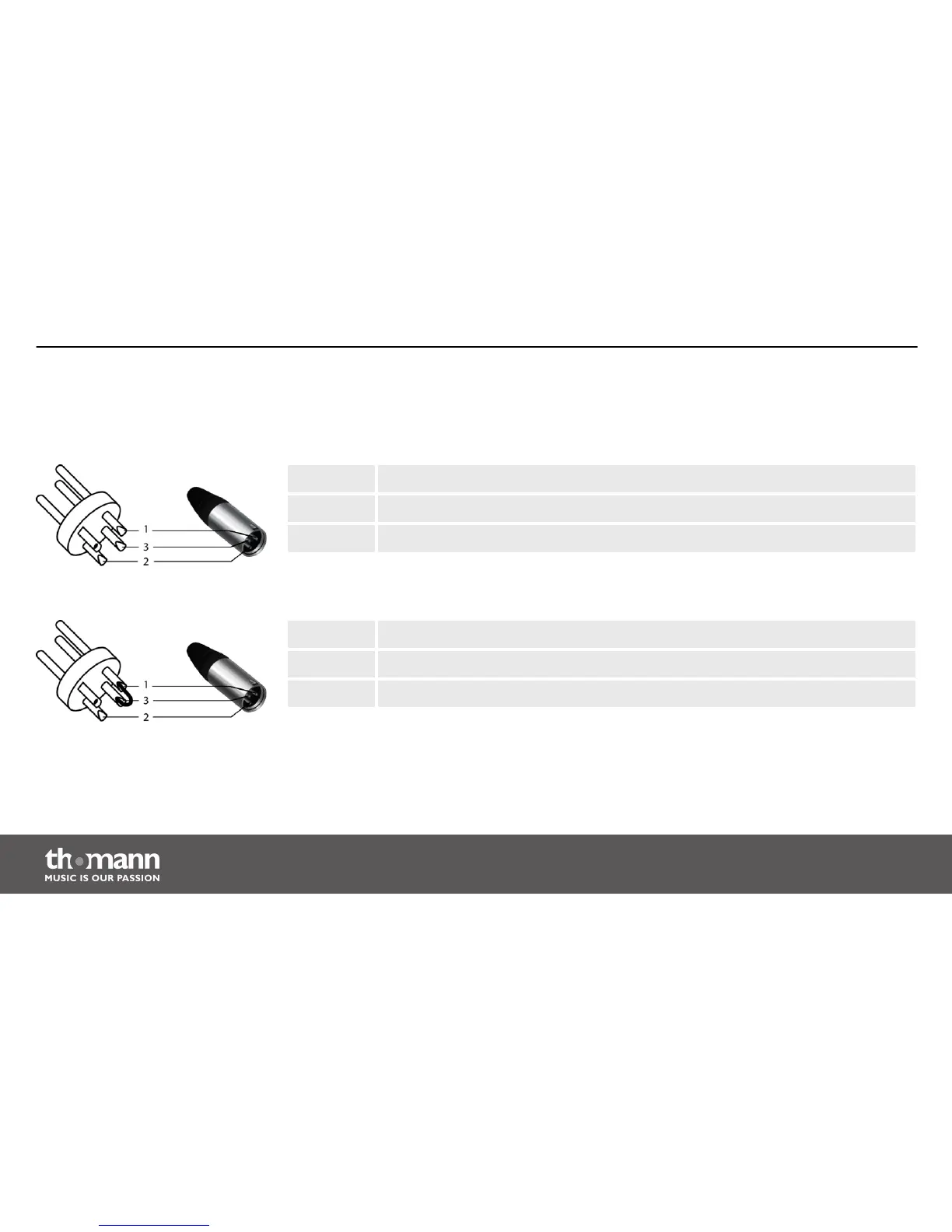

Balanced XLR mounting sockets serve as signal inputs. The following drawings and tables indi‐
cate the XLR pin assignment.
Balanced wiring:
1 Ground, shielding
2 Positive signal (+)
3 Negative signal (–)
Unbalanced wiring:
1 Ground, shielding
2 Signal
3 Bridged to pin 1
XLR connections for signal
inputs
Installation and starting up
power amplifier
14
