1 Signal (in phase, +)
2 Signal (out of phase, –)
3 Ground
1, + Signal 1 (in phase)
1, – Signal 1 (out of phase)
2, + Signal 2 (in phase)
2, – Signal 2 (out of phase)
1/4" TRS phone plug (mono, bal‐
anced)
Speaker Twist chassis connector
ö
#

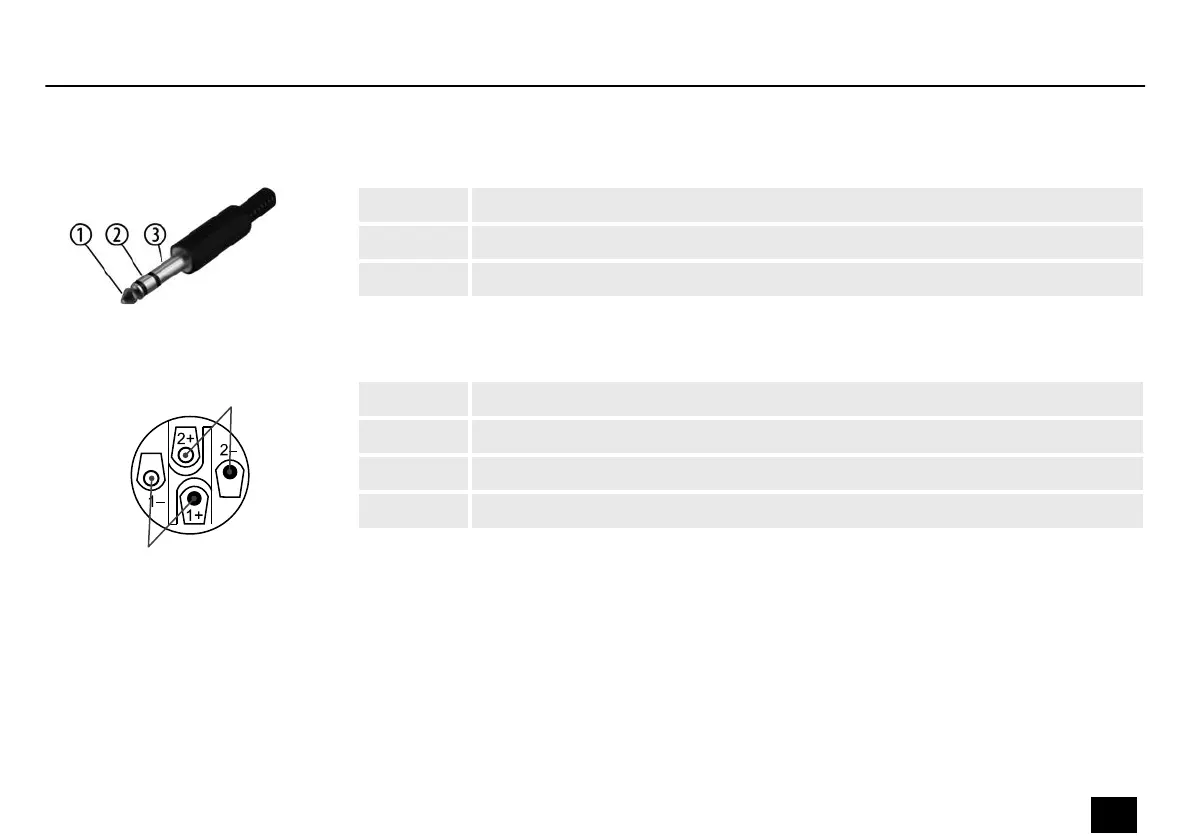

Plug and pin assignments
DSP 4x4 Amp 4.250, DSP 4x4 Amp100V
39
