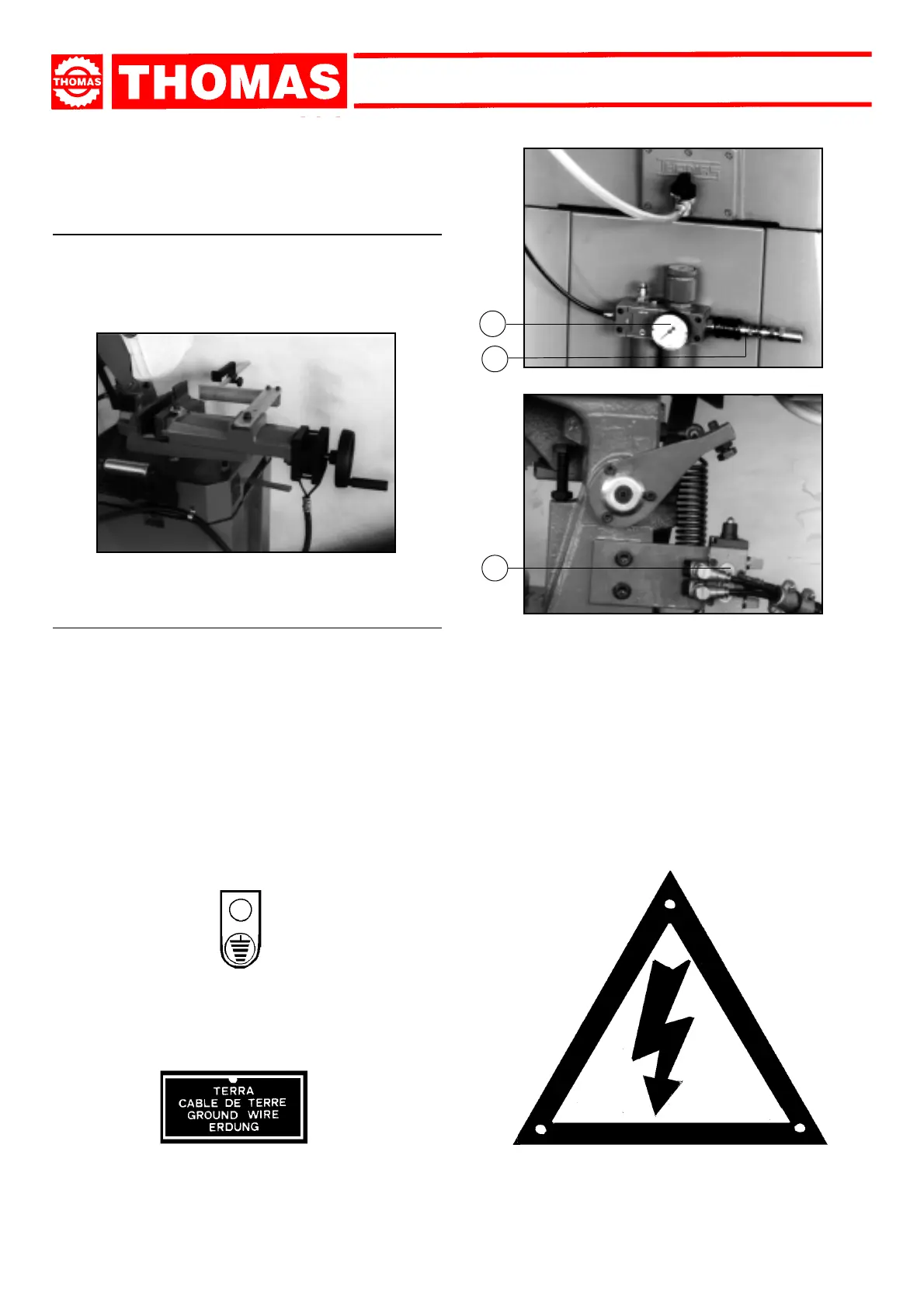

14.1 - Pneumatic vice
- System for clamping material during the cutting operations,
with an automated pneumatic device.
It is provided with an anti-burr device for blocking the part of
the piece that has been cut off.
PLATES AND LABELS
14.2 - Connection to the pneumatic system
- Connect the tube of the pneumatic system to the filter unit
part ( 1 ) and check that the pressure gauge part ( 2 ) shows
a pressure of 6 - 7 BAR, sufficient to ensure optimum
functioning of the device.
- The vice opening mechanism is controlled by the valve part
( 1 ) operated only if the head is completely lifted.
- Leave a play of 3 - 4 mm between the jaws and the piece to
be clamped, then lower the head to block the piece.
1
1
2
14
OPTIONAL
