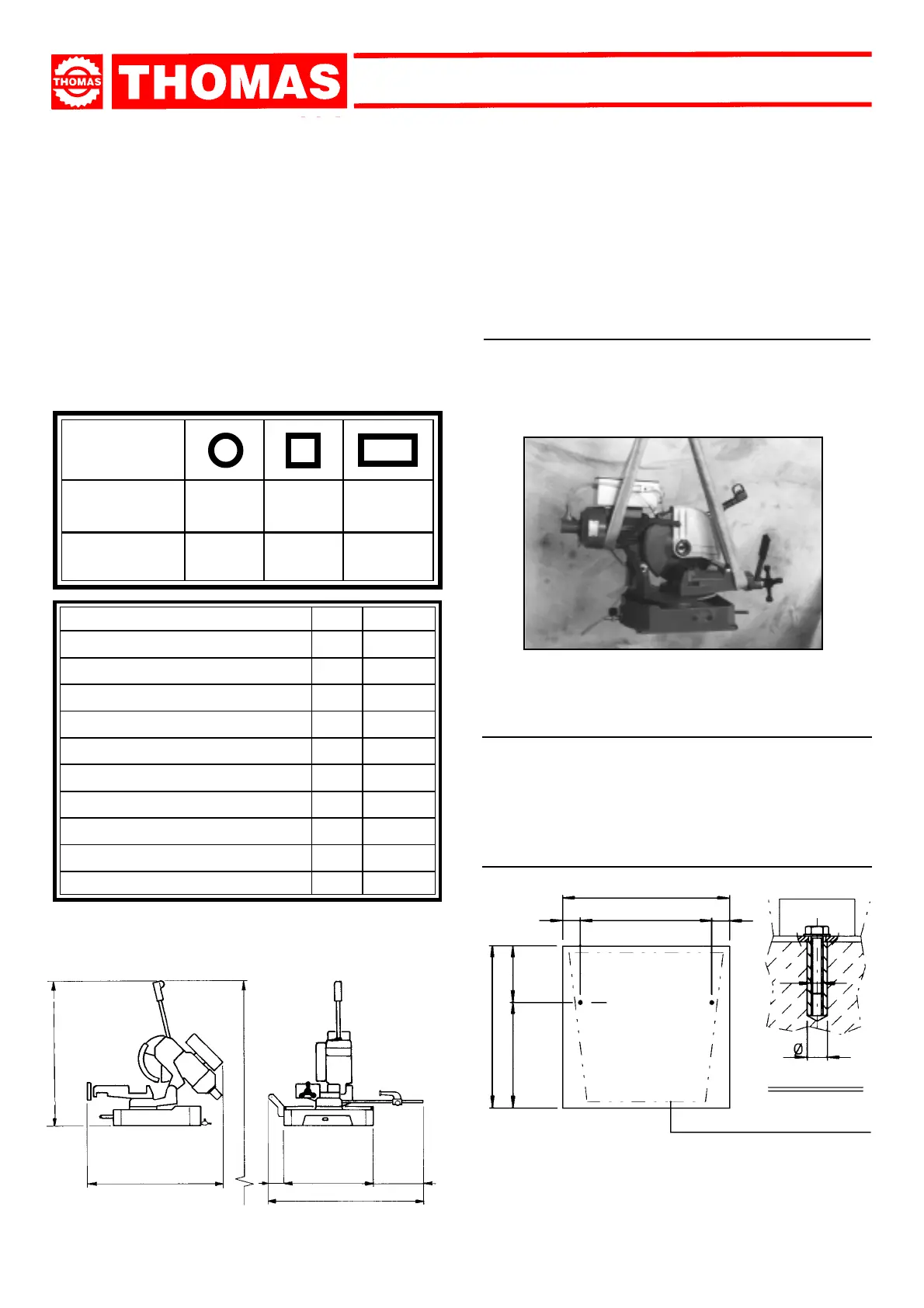

Thomas 315 SUPER CUT - Chapter 4 Machine Dimensions Transport Installation Dismantling; Machine Dimensions; Transport and Handling of the Machine; Minimum Requirements for the Premises Housing the Machine

6
SUPER CUTSUPER CUT
SUPER CUTSUPER CUT
SUPER CUT
0° 95 82 110 x 70
45° DX - SX 90 80 85 x 70
PEDESTAL PROFILE
SEC. A - A
M8
7055070
690
AA
445
185
630
12
MACHINE DIMENSIONS
TRANSPORT
INSTALLATION
DISMANTLING
4
520
310
1000
170
1100
1800 CON PIEDISTALLO
1080
315 SUPER CUT
4.1 - Transport and handling of the machine
If the machine has to be shifted in its own packing, use a fork-
lift truck or sling it with straps as illustrated.
4.2 - Minimum requirements for the premises
housing the machine
- Mains voltage and frequency complying with the machine motor
characteristics.
- Environment temperature from -10 °C to +50 °C.
- Relative humidity not over 90%.
4.3 - Anchoring the machine
- Position the machine on a firm cement floor maintaining, at
the rear, a minimum distance of 800 mm from the wall; anchor
it to the ground as shown in the diagram, using screws and
expansion plugs or tie rods sunk in cement, ensuring that it is
sitting level.
2-speed three-phase electric motor KW 1,3 ÷ 1,9
1-speed single-phase electric motor KW 1,5
Max. electric absorption KW 1,95
Oil-bath reduction unit i 34 : 1
Max. blade diameter mm 315
Min. blade diameter mm 250
Blade rotation speed rpm 41 ÷ 82
Vice opening mm 120
Machine Weight KG 128
Coolant liquid L 5
Working table height with base mm 980
