5
CUT 250CUT 250
CUT 250CUT 250
CUT 250
CAPACITA` DI
TAGLIO
90° 30 70 65 100 x 45
45° DX 25 60 55 65 x 50
TECHNICAL
CHARACTERISTICS

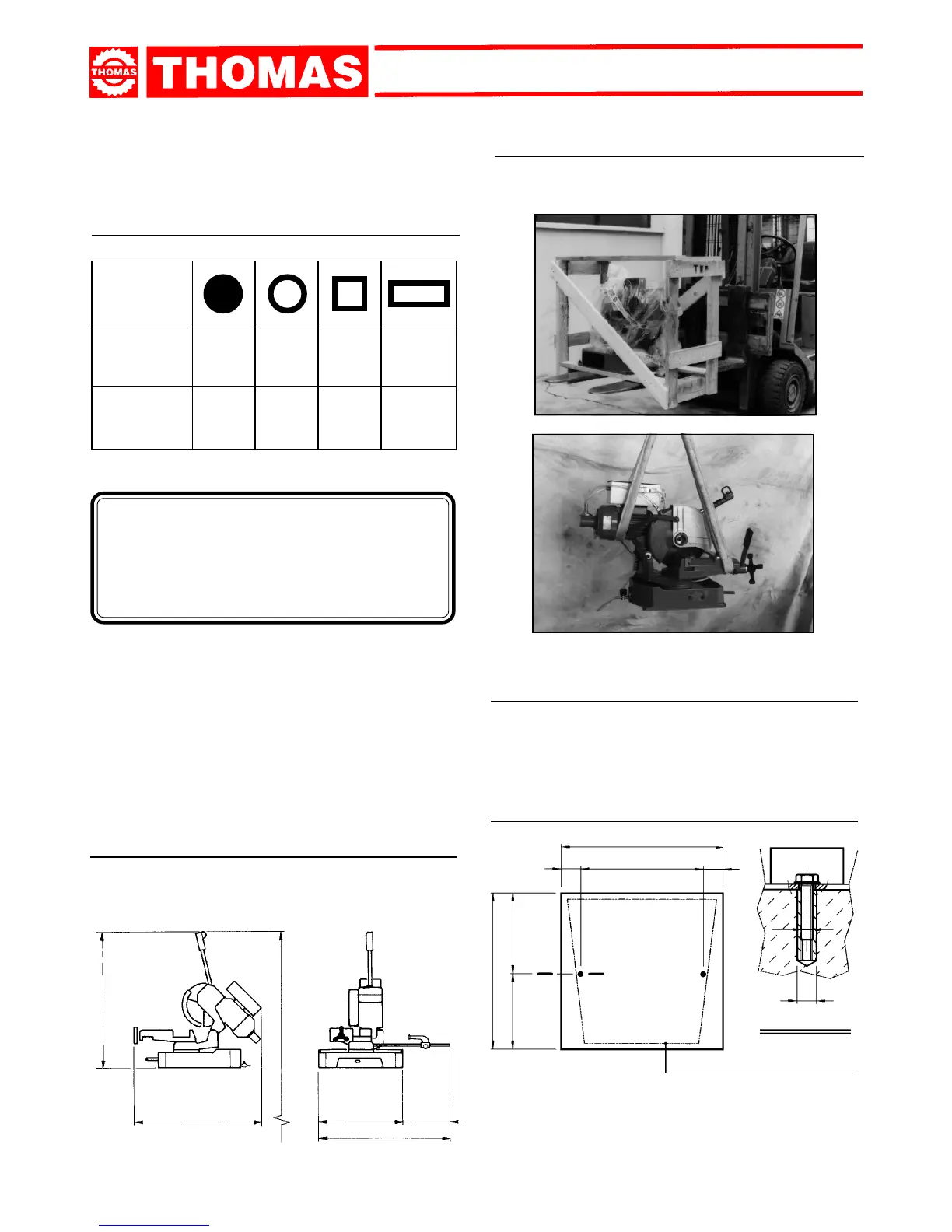

3.1 - Table of cutting capacity and technical details
- Single-phase el. motor for 1-speed disk
rotation kW 0.9
- Reduction gear in an oil bath Ratio = 1:32
- Maximum disk diameter mm 250
- Disk rotation speed rpm 40
- Vice opening mm 105
- Machine weight kg 80
MACHINE DIMENSIONS
TRANSPORT
INSTALLATION
DISMANTLING
4.1 - Machine dimensions
4.2 - Transport and handling of the machine
If the machine has to be shifted in its own packing, use a fork-lift
truck or sling it with straps as illustrated.
3
CUTTING
CAPACITY
4
800
940
410
360
770
1550 WITH PEDESTAL
4.3 - Minimum requirements for the premises
housing the machine
- Mains voltage and frequency complying with the machine motor
characteristics.
- Environment temperature from -10 °C to +50 °C.
- Relative humidity not over 90%.
4.4 - Anchoring the machine
PEDESTAL PROFILE
580
7070 440
270 290
560
AA
SEC. A - A
M8
- Position the machine on a firm cement floor, maintaining, at
the rear, a minimum distance of 800 mm from the wall; anchor
it to the ground as shown in the diagram, using screws and
expansion plugs or tie rods sunk in cement, ensuring that it is
sitting level.
