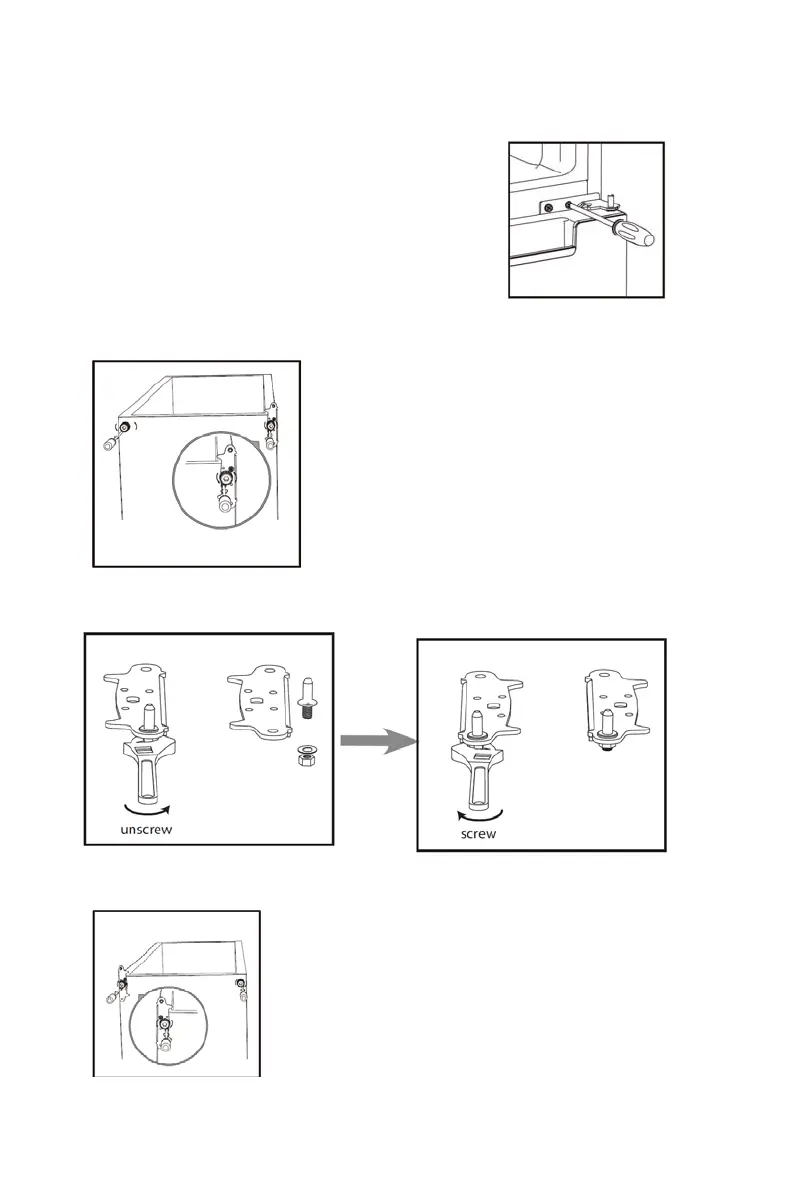

3. Lift the fridge compartment door and place it on a padded surface to prevent it from scratching.
Remove the screws from the middle hinge and then remove
the middle hinge. Lift the freezer compartment
it on a padded surface to prevent it from scratching.
5. Remove the screws, bottom hinge and adjustable foot from the bottom of the appliance.
6.
Remove and replace the pins on the reverse side of the bottom hinge.
Refit the bottom hinge, screws and foot to the opposite side.
