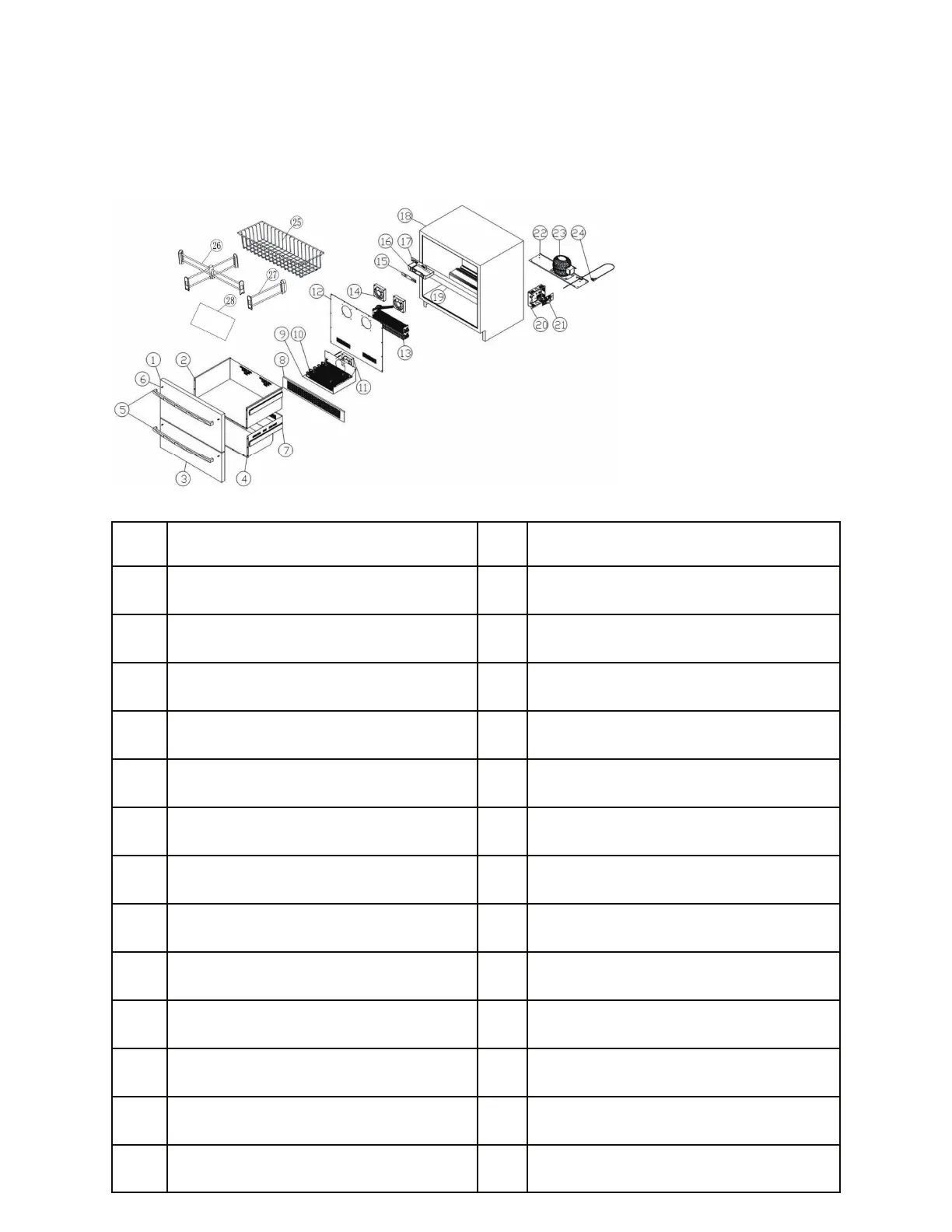

Thor Kitchen TRF24U - Page 15

1 Upper door panel Control panel sticker
Upper drawer Box of temperature control PCB
Temperature control PCBLower door panel
Cabinet
Lower drawer
Middle bar
Handle
Box of power board
Pins of handle
Power board
Slide rail
Base of compressor
Exhaust grill
Compressor
Air duct panel of condensator
Power cord
Condensator
Wire basket
AC fan
On every frame
Air duct panel
Under every Frame
Evaporator
Rubber gasket
DC fan
15
2 16
3 17
4 18
5 19
6 20
7 21
8 22
9 23
10 24
11 25
12 26
13 27
14 28
