Fitting The Wand Tonearm®
(TD150/165 similar)
You may choose to use the Thorens arm lifter with The Wand To be read in conjun
ction with The Wand User Guide.

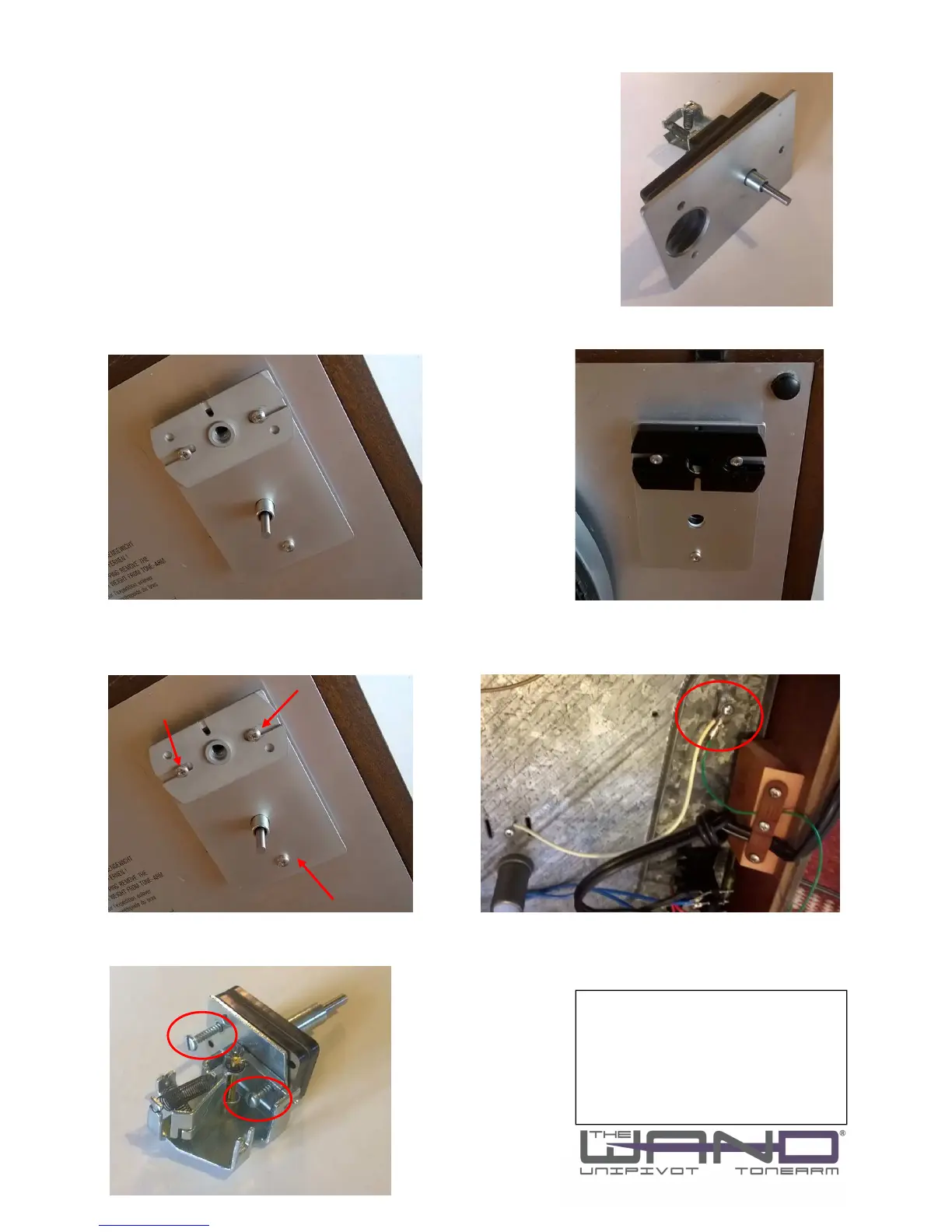

B; Prepare The Wand Mounting
Step 1; Stack the Steel plate on top of black acrylic
Step 2; Add the Wand mount & feed through the plinth
(Wand Classic left, Wand Plus right below)
Step 3; Screw in but don’t tighten. (Three screws) Step 4; Add earth wire to amplifier.
(as below) or 3 core mains cable.
Step 5; Add the Thorens lifter to the underside (if you are using it) Use 2x self-tapping screws.
See previous page for correct orientation. Re-connect
the lifter cable.
www.thewandtonearm.com
©Sept 2016 design build listen Ltd. v2
; If you want to route the
wiring into the plinth. Feed
through the slot in the Wand
mount before adding screws.
(But good to ‘practice’ the other
steps first)
To Next Page
