EXULUS-HD1 & EXULUS-4K1 Spatial Light Modulators Chapter 5: Software Operation
Page 30 CTN008794-D02
The diffraction pattern contains three parameters: wavelength, diffraction angle, and rotation angle. Default values
are 633 nm, 0.1°, and 45°.

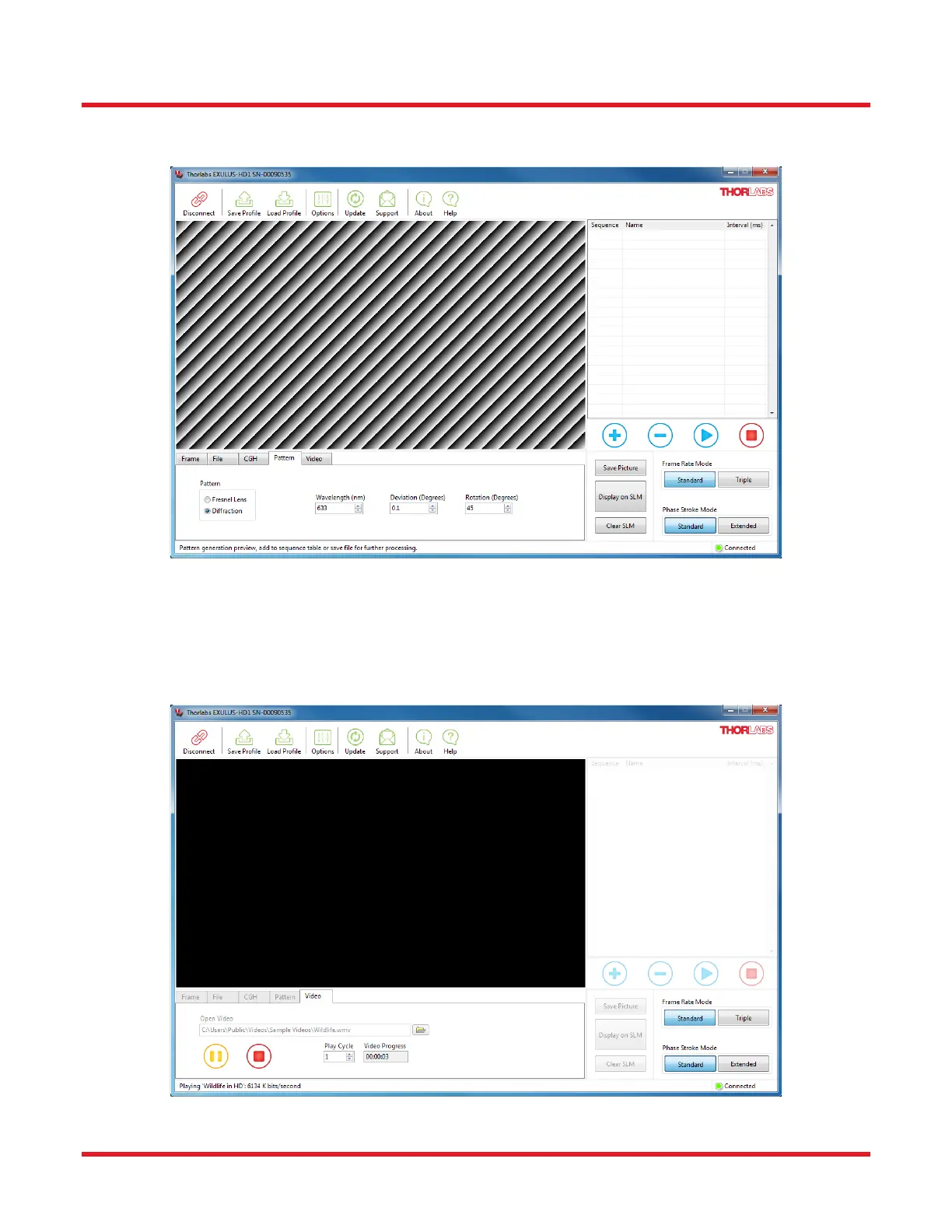

Figure 28 Generation of Diffraction pattern
Video mode
The video mode supports user uploaded video to be played on the SLM panel. Supported input file formats include
MP4, M4V, and MOV (in H.264 video codec).
Figure 29 User uploaded video play
