Rev 19 Oct 2020
Page 1
Chapter 1 Overview
Chapter 1 Overview
1.1 Introduction
The GVS series scanning galvo systems are board level, mirror positioning systems,
designed for integration into OEM or custom laser beam steering applications. The
single axis systems consist of a motor and mirror assembly, a mounting bracket, a
tuned driver card and a heat sink. The dual axis systems comprise two mirror and
motor assemblies, an X-Y mounting bracket, two driver cards with heat sinks and a
post mounting plate. The post mounting plate also serves as a tip/tilt platform adapter
and allows the system to be fitted to a PY003 tilt platform.
The driver cards feature a small footprint, fixings for easy mounting to a heatsink and
a simple analog command signal interface. Typical applications include laser
scanning, laser display, and laser marking.
A choice of mirror coating is available as follows:
GVS011 and GVS012: Single- and Dual-Axis Systems with Protected Silver Mirrors
GVS111 and GVS112: Single- and Dual-Axis Systems with Protected Gold Mirrors
GVS211 and GVS212: Single- and Dual-Axis Systems with 400-750 nm Broadband
Dielectric Mirrors (E02)
GVS311 and GVS312: Single- and Dual-Axis Systems with High Power Dual Band
(532 and 1064 nm) Nd: YAG Mirrors (K13)
GVS411 and GVS412: Single- and Dual-Axis Systems with UV-Enhanced Alumium
Mirrors (F01).

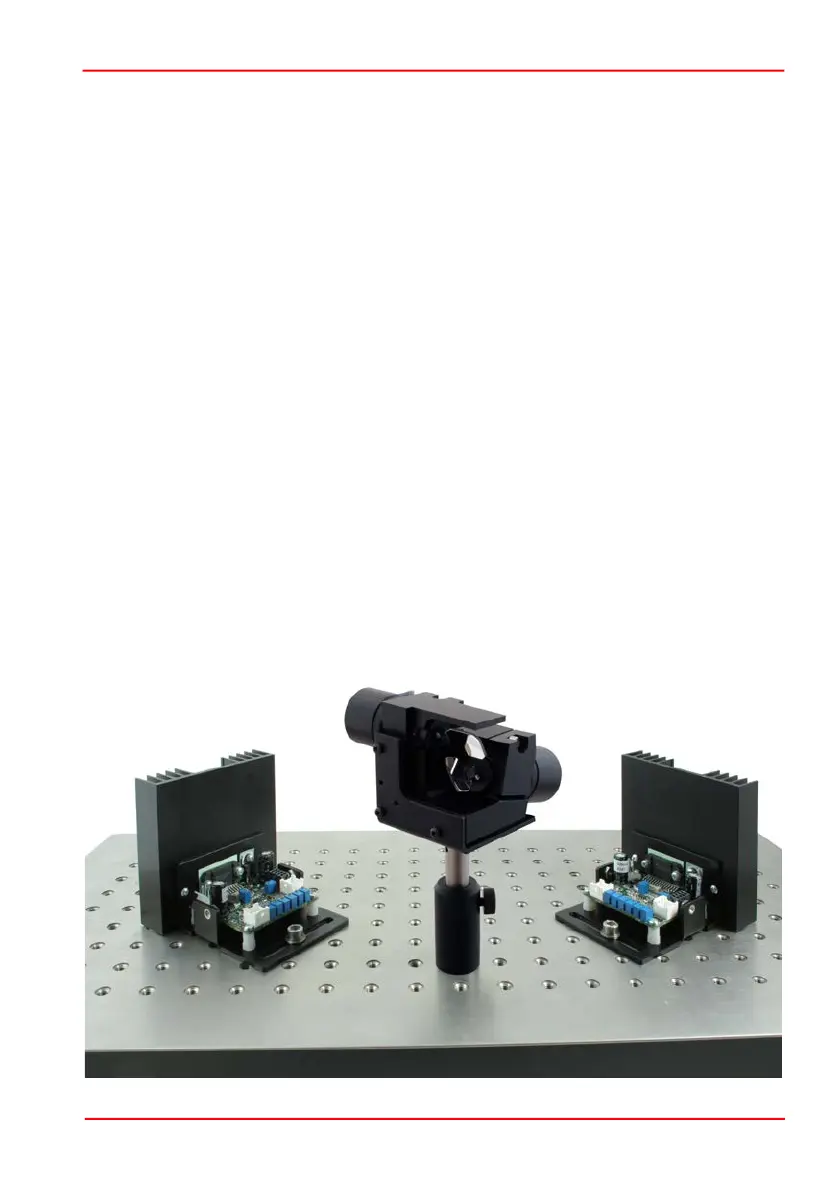

Fig. 1.1 GVS012 2-Axis Galvo System (Post not included)
